MasterCool MCP SERIES User Manual

13

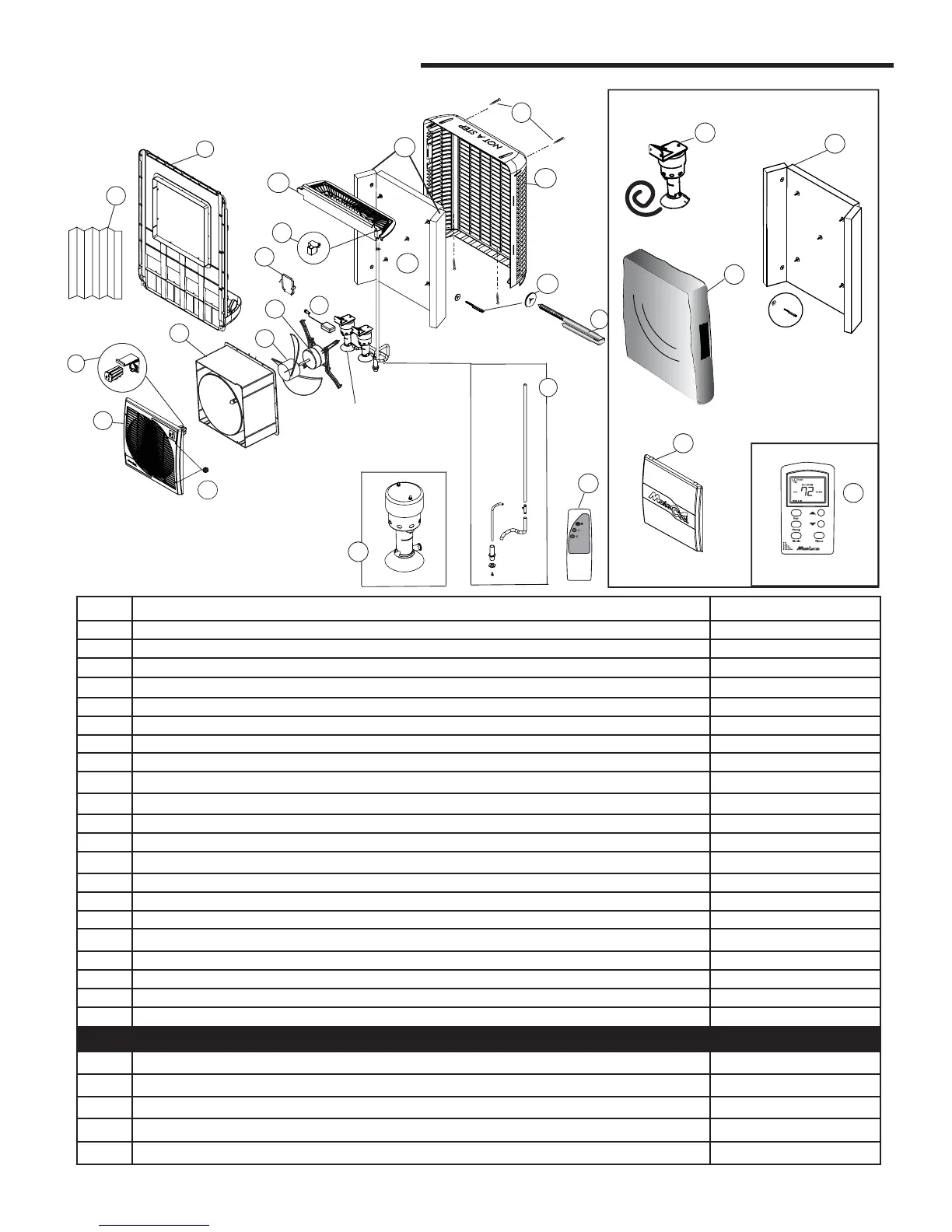

COOLER DIAGRAM AND PARTS LIST
4
3
8
7
9
11
(2 ea.)
18
(4 ea.)
1
5
12
10
16
14
15
19
6
17
ON
PUMP
CHAMPION / ESSICK AIR
FAN
21
MCP44 (1 pump)
13
24
25
INTERIOR COVER
(INCLUDED ON MCP44E)
EXTERIOR COVER
(OPTIONAL
OWNER INSTALLED
PURGE PUMP)
2
PURGE PUMP KIT
22
23
20
REMOTE
THERMOSTAT
OPTIONAL ACCESSORIES
Kit includes full set
of media, pegs
and keepers
PAD REPLACEMENT KIT
AVAILABLE IN 2017
26
ITEM DESCRIPTION PART NUMBER
1 Cooler Back/Media Guard 72243
2 Set of 4 screws for attaching back guard 72303
3
Back Media Pad; 2” X 24” X 35.5” Munters GreenGuard certi¿ ed CelDek
72244
4 Side Media Pad; 2” X 5.88” X 35.5” CelDek (2 ea.) 72245
5 Water distributor tray 72249
6 Tray cap 72250
7 Media Peg Clip; window cooler; PP (9 ea.) 72246
8 Media Peg; window cooler; PP (9 ea.) 72247
9 Pump assy. – Main water system 72402
10 MCP Series Water Distribution Hose assy. 72256
11 Float valve 72290
12 Cooler body front 72242
13 Receptacle cover 72407
14 Fan motor 72428
15 Fan Blade 72253
16 Fan Housing 72251
17 Grille 72257
18 Grille screw caps 72260
19 Control module
72
20 Vinyl accordion window panel (2 ea.) 72284
21 Remote control (IR- included with unit)
72302
OPTIONAL ACCESSORIES - Available for Purchase · Call 1.800.643.8341
22 Purge Pump Kit MCP44-PPK
23 Pad Replacement Kit
MCP44-PAD
24 Exterior Cover
MCP-EC
25 Interior Grille Cover
MCP-IC
26 Remote Thermostat - AVAILABLE IN 2017
ML-THERM
