6

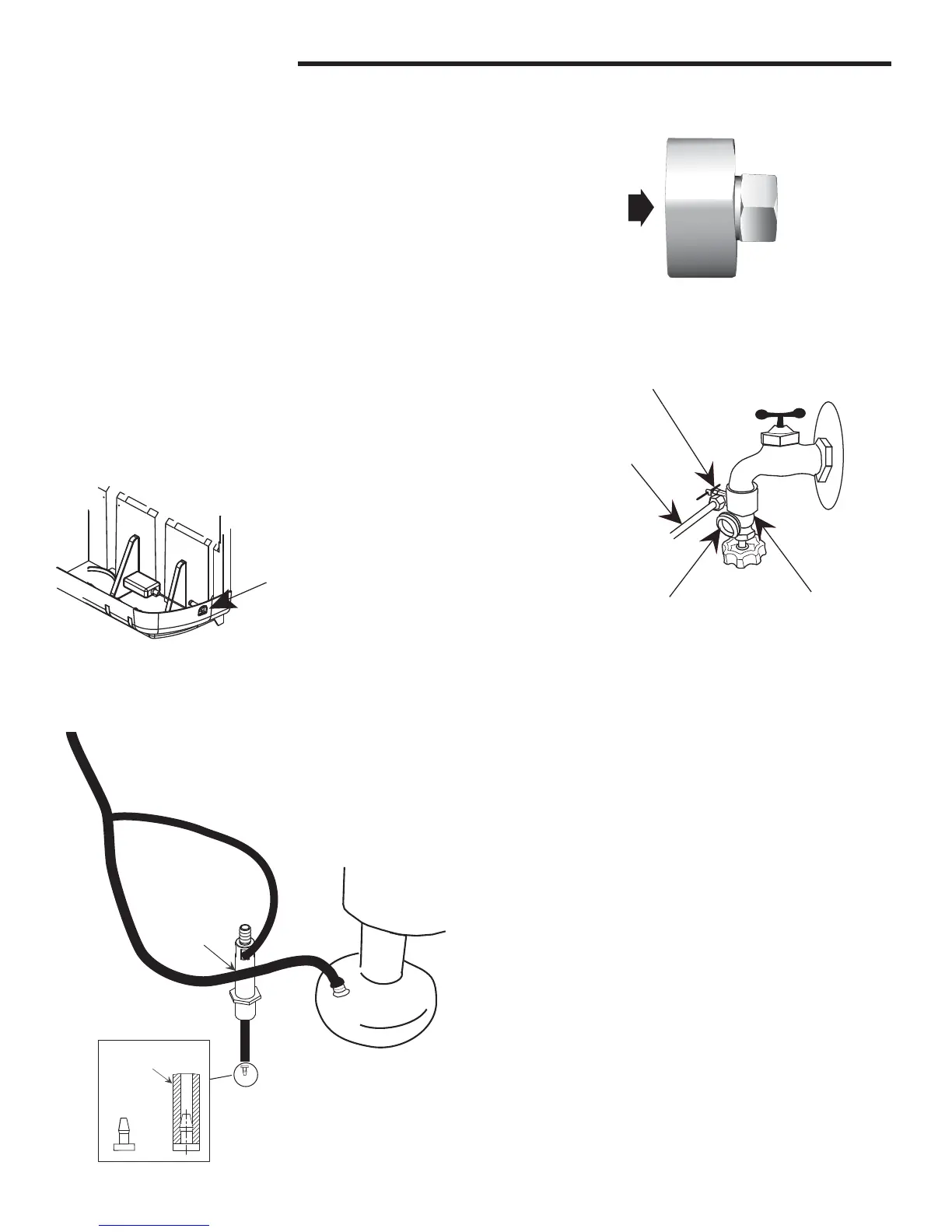

Steady water supply is required for operation of the cooler. If taking
water from an external faucet, there are two options for attaching
water to the cooler.
Option 1:
Using a standard water hose to supply water:
1. Remove the nut and ferrule that secures the À oat ¿ tting in the
unit at the attach point.
2. Take the brass ¿ tting enclosed in the parts bag and attach
one end to the À oat valve and the other end to the water hose.
Option 2:
Install a sill-cock onto faucet to facilitate a dedicated water line to
the cooler.
1. Install a standard sill-cock (locally available) with water
valve onto the faucet and connect the water supply to the
cooler.
2. Install plastic or copper line to sill-cock and connect it to the
À oat valve.
PLASTIC OR
COPPER LINE
TO COOLER
SHUT OFF VALVE
SILL-COCK
STD. HOSE CONNECTION
FLOAT VALVE
WATER LINE
ATTACH POIN
Water Pump
A self-contained water pump continuously circulates water through the
water distribution system and over the media.
The pump and water lines are shipped disconnected.
MAIN
WATER
LINE
JUNCTION
REINSTALL NIPPLE INTO
OVERFLOW LINE
(AFTER
INSERTING
LINE THROUGH
OVERFLOW
FITTING)
PUMP
(STRAINER NETTING
NOT SHOWN
FOR CLARITY)
PUMP
INLET
OVERFLOW
DRAIN
FITTING
NIPPLE
REMOVE NIPPLE FROM
TUBE BEFORE FEEDING
IT INTO DRAIN OVERFLOW.
Water Line Connections
1. Locate the black water line snapped into plastic
keepers inside the unit.
2. Attach the bottom end of the main water line to the
pump inlet.
3. Remove the nipple inserted into the end of the
overÀ ow line. Push overÀ ow hose into one of the
slots in the sides of the overÀ ow drain ¿ tting.
4. Reinsert the nipple into the overÀ ow line.
5. Attach the top of the hose to the water distribution
tray.
6. Ensure there are no kinks in the water lines after
completion.
WATER CONNECTIONS
SCREWS
DIRECTLY
ONTO END OF
WATER HOSE
SCREWS DIRECTLY
ONTO FLOAT VALVE
