OverÀ ow Drain
1. Slide the rubber washer over the overÀ ow ¿ tting and push
through the hole in the bottom of the cooler from the top
side.
2. Secure the drain from beneath the pan with the Lock Nut.
3. Make sure the rubber washer does not twist while tighten-
ing, which could cause it to leak. DO NOT OVER TIGHT-
EN.
4. If leakage occurs after reservoir is full, re-tighten the over-
À ow ¿ tting until leaking stops. A small amount of silicone
caulk may be used if necessary.
5. At
tach a drain hose to the bottom of the ¿ tting if neces-
sary.
WATER LEVEL
2˝
Water Level
Two inches of water should be maintained in the bottom of
the cooler to ensure suf¿ cient water for correct operation of
the cooler.
The À oat is factory-installed to maintain a 2 inch level of
water, but may require adjustment if shipping or installation
has caused the setting to shift.

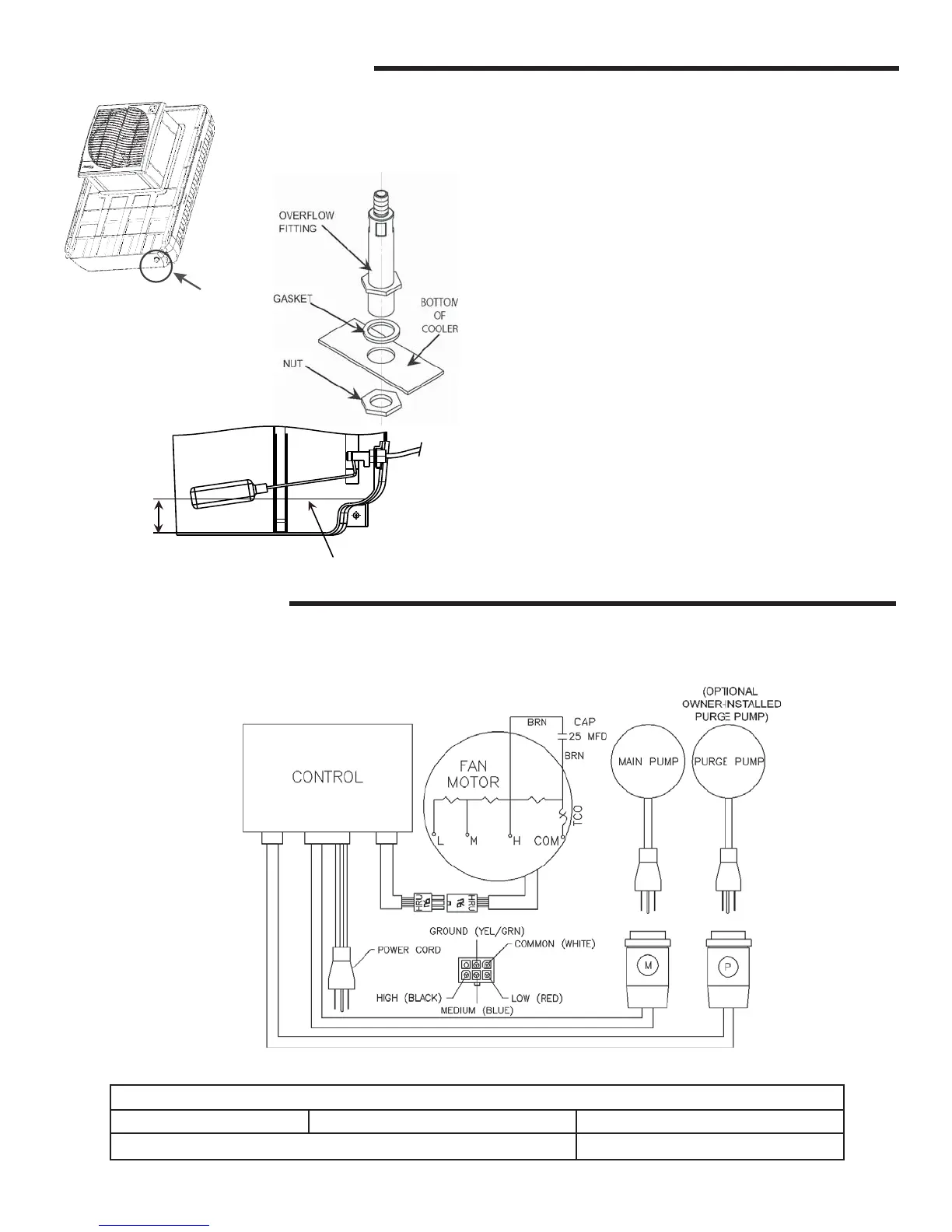

The electrical system does not require general maintenance. The following wiring diagram is supplied for reference only.
ELECTRICAL SPECIFICATIONS OF MCP SERIES COOLERS
MCP Series Fan Motor 120 V, 2.8 amps Main Pump 120 V; 0.9 amps
If optional Purge Pump is installed Additional 0.9 amps
ELECTRICAL SYSTEM
WATER CONNECTIONS (CONT’D)
LOCATION
OF DRAIN
To Next Page
