VARIABLE-SPEED TRIGGER SWITCH – cont’d
NOTE: Drilling at a slow speed for an
extended period of time may cause the
cordless screwdriver motor or the battery
to overheat. If the cordless screwdriver
gets hot, stop drilling and allow it to cool
for at least 15 minutes.
ADJUSTING THE TORQUE COLLAR
Your cordless screwdriver is equipped with
an adjustable torque clutch for driving
different types of screws into different
types of materials. It also has a setting for
“drilling”. The proper setting depends upon
the type of material and size of screw
being used and the function required.
Adjust the torque setting as follows:

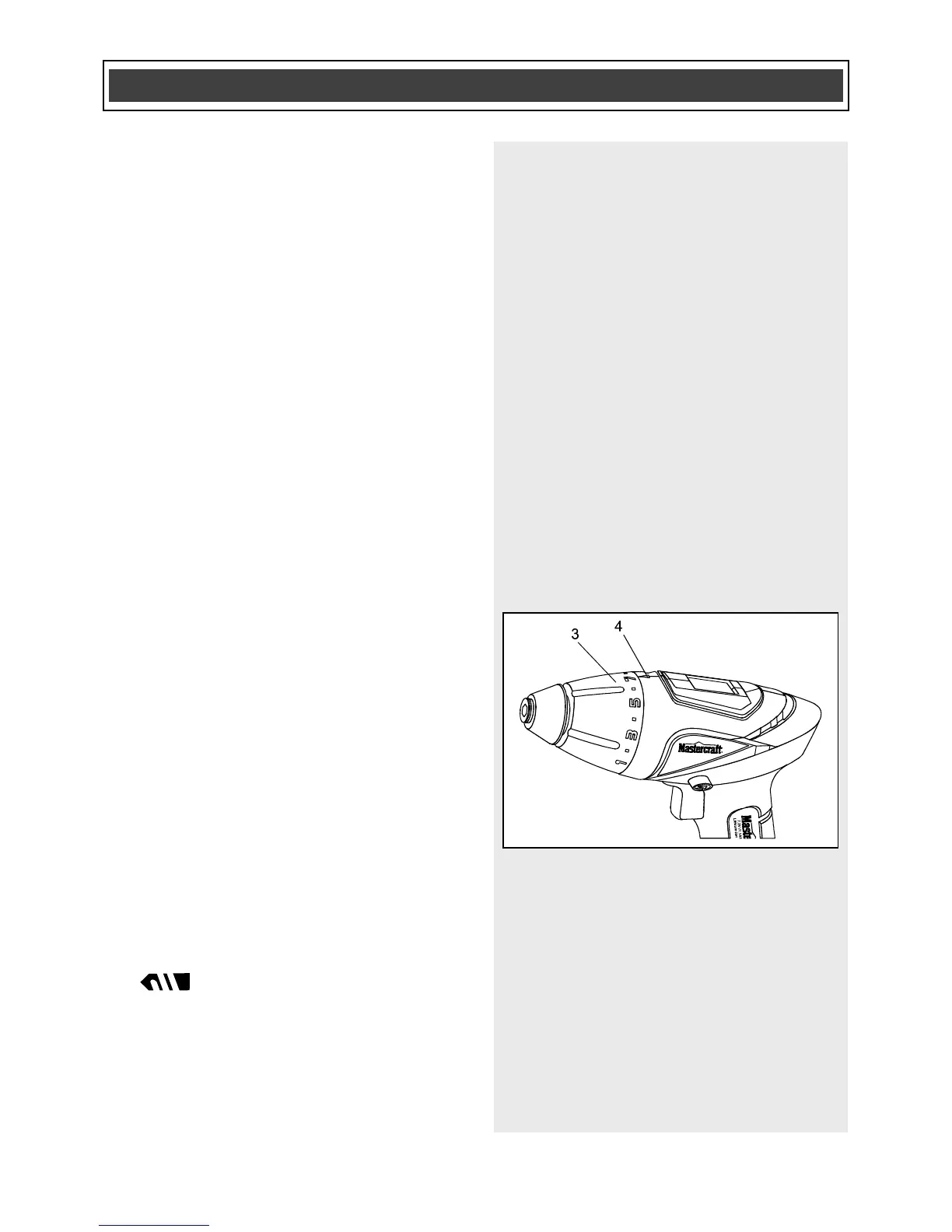

1. Identify the torque settings located on
the torque adjustment ring (3)
(Fig. 15).
2. Rotate adjustment ring to align the
correct torque setting number with the
torque indicator arrow (4). The
following is a guide for torque settings:
1–4 For driving small screws
5–7 For driving medium sized screws
into soft materials
8–10 For driving screws into soft &
medium-density materials
11–13 For driving screws into
hardwood
14–16 For driving large screws
For drilling. This position is
marked with a drill bit icon on the
torque adjustment ring.
To Next Page
