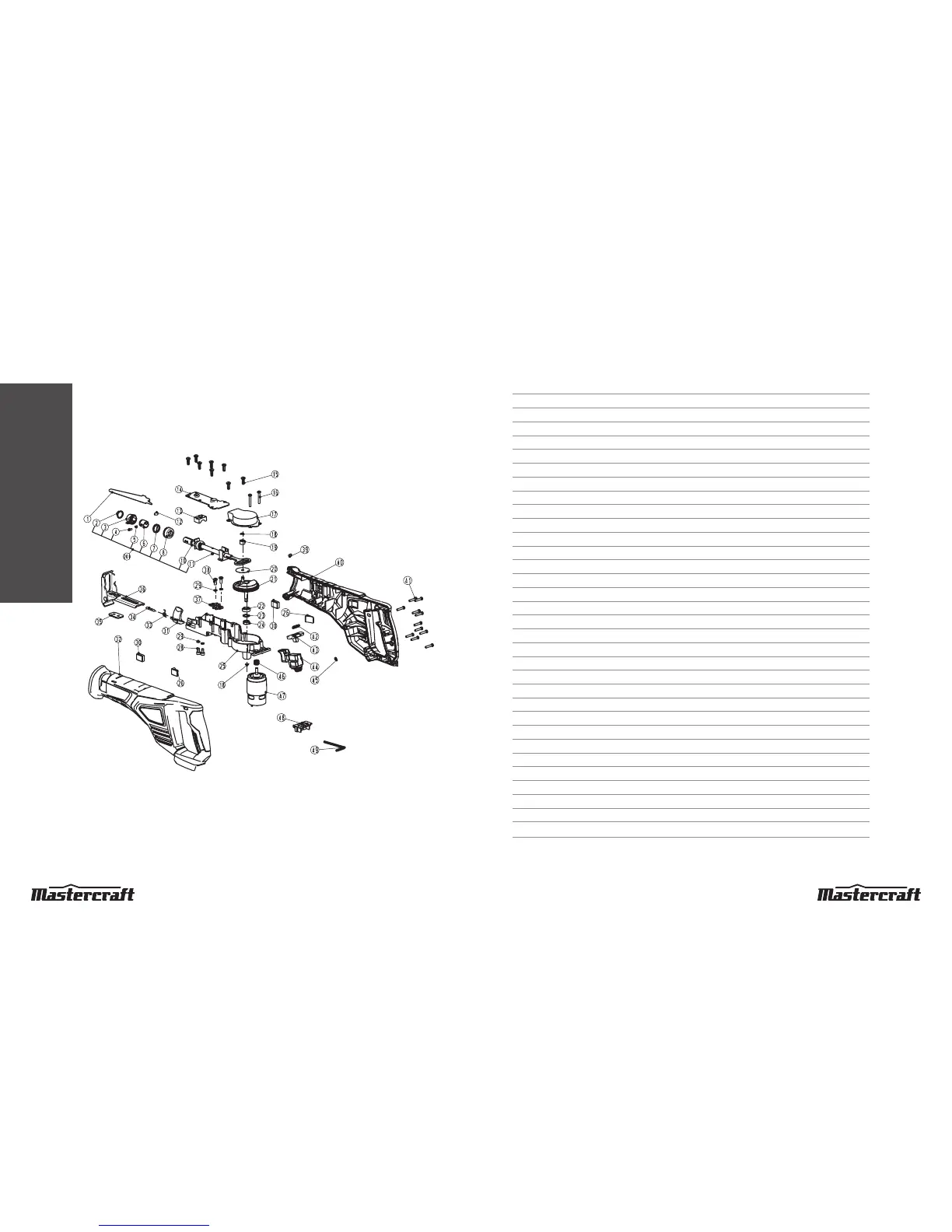

MasterCraft 054-8151-4 - Exploded View

Explodedview
No. Part No. Description No. Part No. Description
01 3810008000 Reciprocating Saw Blade 34 5670244000 Pin
201 2822578000 Plunger Assembly 35 3704168000 Clamp
02 5660145000 Circlips For Shaft 36 2822287000 Pivot Shoe
03 3421211000 Rotate Bush 37 3704272000 Slip Bush
04 5670194000 Pin 38 5620050000 Screw
05 5670199000 Pin 39 4360001000 LED
06 3551279000 Bush 40 3321455000 Right Housing
07 3660386000 Torsion Spring 41 5610106000 Tapping Screw
08 3125769000 Sleeve 42 3660075000 Spring
10 2823422000 Plunger Assembly 43 3126627000 Button
11 5670247000 Pin 44 4870391000 Switch
12 5670303000 Pin 45 5690192000 O Ring
13 3520428000 Clamp Block 46 3520429000 Pinion
14 3704263000 Plate 47 2730193000 Motor
15 5610057000 Thread Forming Screw 48 3402627000 Contact Receptacle Assembly
16 5620489000 Screw With Washer 49 5680031000 Hexagon Wrench
17 3704262000 Gear Case Cover
18 5660027000 Circlips For Shaft
19 3520431000 Crank Roller
20 5650302000 Washer
21 2822591000 Gear Set
22 5700006000 Ball Bearing
23 5660164000 Circlips for Hole
24 5700199000 Ball Bearing
25 3420844000 Gear Case
26 3124566000 Clamp Block
28 5620213000 Hexagon Socket Screw
29 5650015000 Spring Washer
30 3124565000 Clamp Block
31 3402364000 Lever
32 3321456000 Left Housing
33 3660260000 Torsion Spring
19 20
20V max* LITHIUM-ION CORDLESS RECIPROCATING SAW - 054-8151-420V max* LITHIUM-ION CORDLESS RECIPROCATING SAW - 054-8151-4
PARTS LIST PARTS LIST
