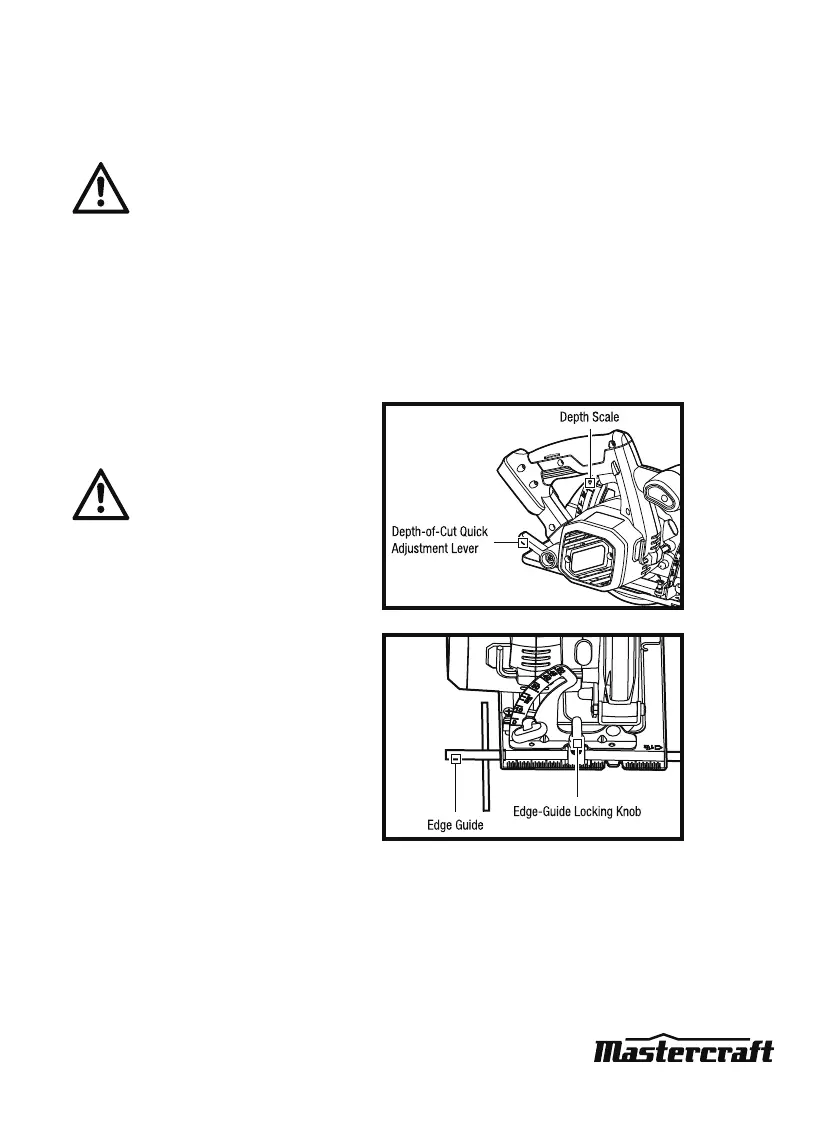

20V max* LITHIUM-ION CORDLESS CIRCULAR SAW - 054-8332-4
16
OPERATING INSTRUCTIONS
WARNING!
Always remove the battery pack from the tool when assembling parts, changing the blade and
making adjustments. Failure to obey this warning could cause serious personal injury.
Depth-of-cut adjustments
(g 8)
Always use the correct blade-depth setting. The correct blade-depth setting for all cuts should not be more
than 1/4 inch below the material being cut. Greater blade depth will increase the chance of kickback and
cause the cut to be rough. Your saw is equipped with a depth scale that enables you to accurately set the
depth-of-cut.
TO ADJUST DEPTH OF CUT
WARNING!
Always remove the battery pack
from the saw when assembling
parts, changing blades and making
adjustments. Failure to obey this
warning could cause serious personal
injury.
1. Remove the battery pack from the saw.
2. Loosen the depth-of-cut quick adjustment lever.
3. Hold the base flat against the workpiece and
raise or lower the saw until the indicator aligns
with the desired depth on the scale.
4. Securely tighten the depth-of-cut quick
adjustment lever.
Using a guide (sold separately)
(g 9)
To order an edge guide (#54-8332-ED), call Customer Service 1-800-689-9928.
Always use a guide when making long or wide rip cuts with your saw. You can use either a straight edge or
an edge guide (sold separately).
fig 8
fig 9
