Mastervolt ALPHA ALTERNATOR 12/90 - Alpha Pro II Event Source List (Alpha Pro II as Event Source); Alpha Pro II Event Target List (Alpha Pro II as Event Target)

MASTERBUS
22 January 2013/ Alpha alternator - Alpha Pro II regulator / EN
Value
Meaning
Defau
lt
Adjustable. range
Shunt
Shunt device Selection of the shunt to measure the battery
voltage
Alpha Pro II setup
Factory settings Option to reset to factory settings
Lock setup Option to lock the configuration settings. With
the configuration locked, only the language
and the device name can be changed.
Unlock setup Option to unlock the configuration settings
(only appears after Lock setup)
* only with Alternator type and Battery voltage configured as “user defined”
V
alue
Meaning
Default
Adjustable. range
Events
Event x source Event by the Alpha Pro II that should result in an
action another device on the MasterBus network.
Nine events are available: x can be 1-9.
Disabled See Event source
list
Event x
target
Select a connected MasterBus device that should
take action due to an Alpha Pro II event.
SelectZ Selectable targets
are system
dependent.
Event x command Action to be taken by the target device. SelectZ See command list in
manual of the
selected device.
Event x data Data is linked to the command. See also figure
16.
Off Off, On, Copy, Copy
Invert, Toggle.
Event x+1 The next event appears after enabling Event x. Disabled See Event x.

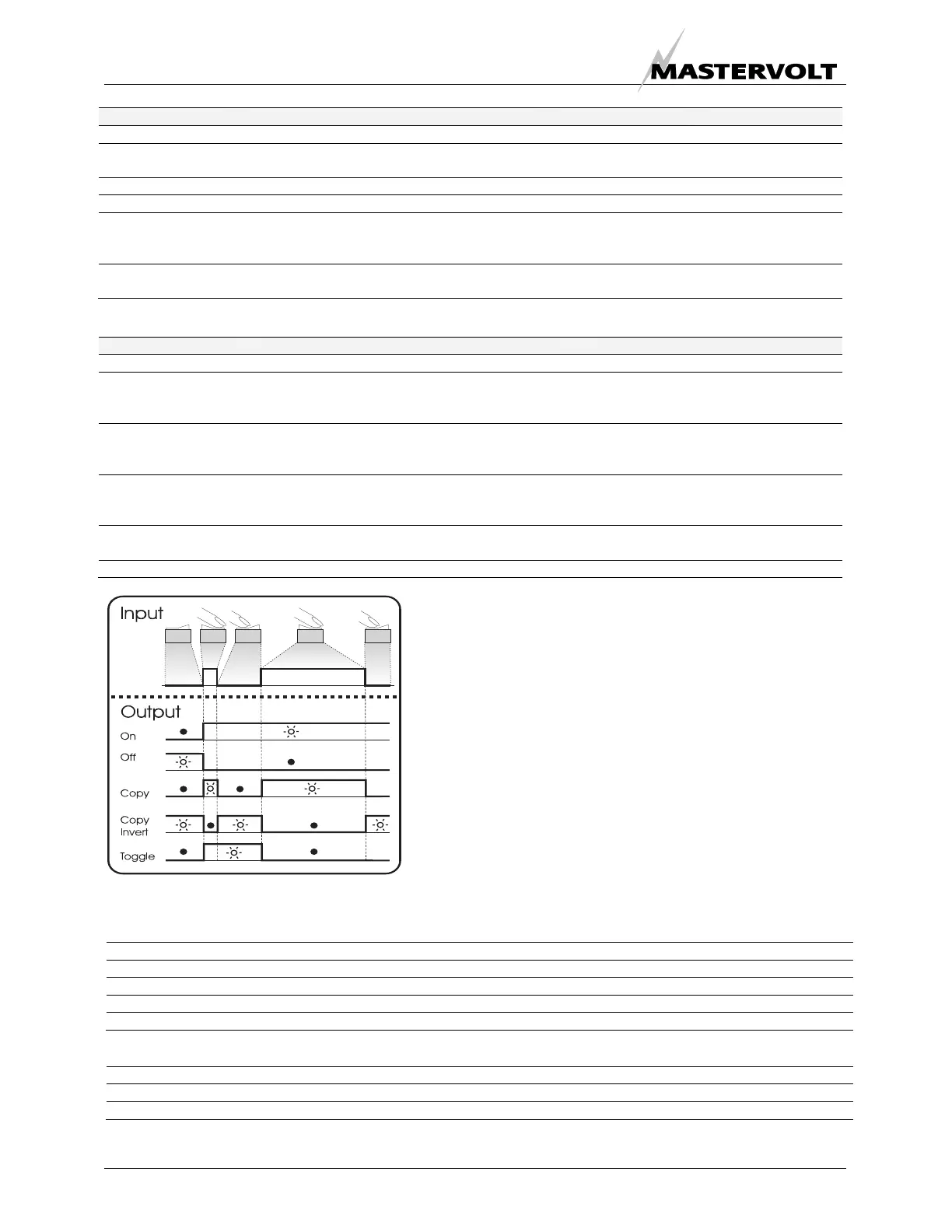

Figure 17 shows the meaning of the event data.
Input is a pulse followed by a longer signal (1/0).
On changes the status to On at the first signal.
Off changes the status to Off at the first signal.
Copy lets the status follow the input.
Copy Invert lets the status follow the opposite of the
input.
Toggle changes the status at the first signal and
back at the second signal. It is often used in
combination with a pulse switch.
6.3.5 Alpha Pro II event source list (Alpha Pro II as event source)
Device state A change in device state
Bulk The charging process switches to Bulk phase
Absorption The charging process switches to Absorption phase
Float The charging process switches to Float phase
RPM event The alternator number of revs reaches a certain level
6.3.6 Alpha Pro II event target list (Alpha Pro II as event target)
Bulk The charging process switches to Bulk phase
Absorption The charging process switches to Absorption phase
Float The charging process switches to Float phase
Figure 17: Event data
