Mastervolt CHARGEMASTER 12/50-3

TECHNICAL DATA
26 August 2009 / Chargemaster1 12/35-3, 12/50-3, 24/20-3 & 24/30-3 / EN

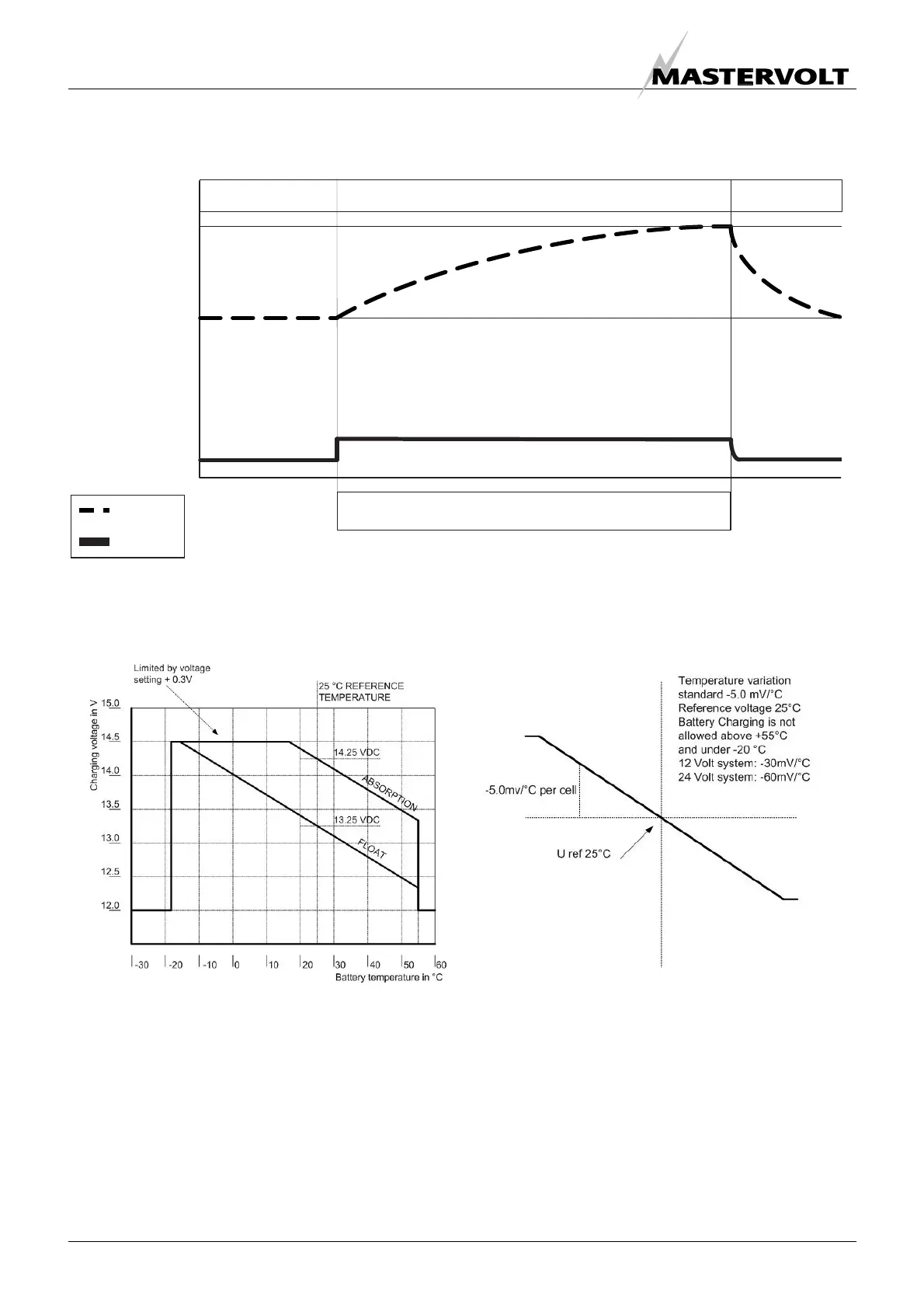

Figure 17: Charge characteristic of the equalize charge cycle (see section 5.1.3) (at 25°C / 77°F)
Figure 18: Temperature compensation characteristic (charge voltage versus temperature)
FLOAT EQUALIZE FLOAT
Float voltage + 2.25V
= 15.50VDC
Float voltage
= 13.25VDC
10% of Imax
Max equalize time = 6hr
Start equalize cycle by jumper change (disabled when Gel)
= voltage
= current
