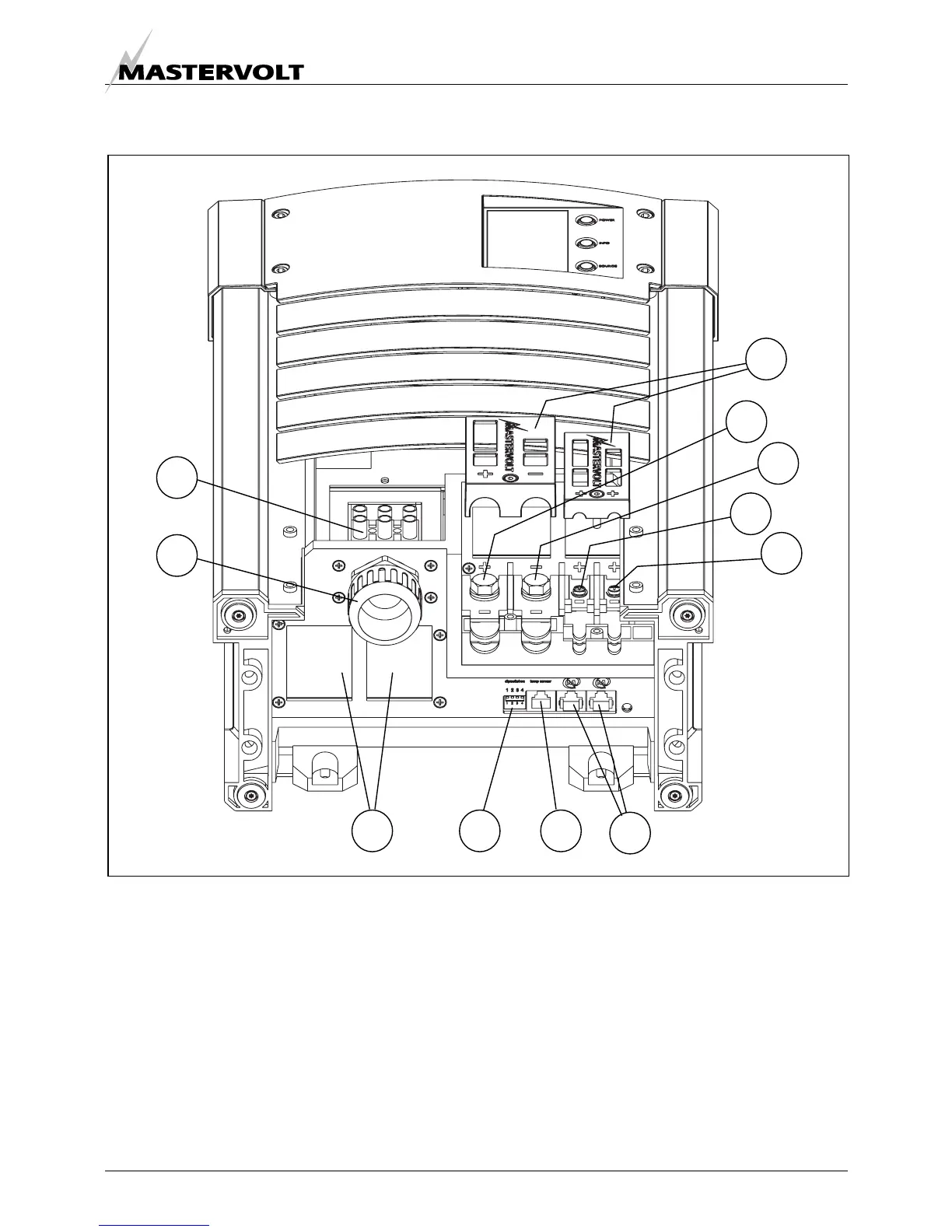

4.4 OVERVIEW CONNECTION COMPARTMENT
1
Screw terminals AC input
2 Cable gland for AC-wiring
3 Isolation caps for DC connections
4 Positive terminal charge output 1 (main output)
5 Common negative output terminal
6 Positive terminal charge output 2
7 Positive terminal charge output 3
8 Ventilation openings
9 DIP-switches
10 Temperature sensor jack
11 MasterBus connector
Figure 6: overview connection compartment
8
4
3
2
1
9 10
11
7
6
5
