CHARGEMASTER 12/15-2 SPECIFICATIONS
General
Model ChargeMaster 12/15-2
Article number 43011500
Operating temperature
0 °C to 40 °C (derating of 2% / °C >40°C)
Storage temperature
-20 °C to 70 °C
Protection degree IP21 (horizontally mounted), IP20 (vertically mounted)
Noise level Not audible (<30 dBA)
Safety class Class I
Dimensions ( HxWxD ) 206 x 121 x 50mm
Input
Input voltage 230 Vac +/- 10%
Input frequency 50/60 Hz +/- 10%
Input current 1,2A
Maximum input power 212 Watt
Power factor cos phi > 0.95
Efficiency at full power > 85 %
No load consumption < 15 Watt
AC input fuse 1,6A slow blow (non replaceable)
AC connector Class I plug
Length AC cable 120 cm
Output
Voltage (DC) absorption 14.25 V ( 6 Hr )
Voltage (DC) float (gel/AGM) 13.25 V ( 13.8 V )
Voltage (DC) force float 13.8 V
Return amps < 1.9A (15min) (1/8 Imax)
Adjustment range (DC) 12 V – 15 V
Adjustment method Software setting by Quasi RS232 (TTL levels)
Number of outputs 2
Max. output current (bulk) 15 A
Charge Characteristic Three-step, fully automated, IUoUo (acc. DIN 41772), programmable
Battery types Open and sealed lead acid batteries
DC-cables 3 x 2,5mm² x 125 cm
Safety devices
Short circuit protection Yes, reduced output, max. 7A
Reverse polarity protection Yes, by DC fuse
DC fuse 20 Amps (yellow), standard automotive blade fuse
Temperature protection Yes, by derating the output and shut off at 50°C
Power and fault indicator
Indicator Green LED
Correct operation Green, flashing (bulk / Absorption) or continuously (Float )
Compliance
CE Yes

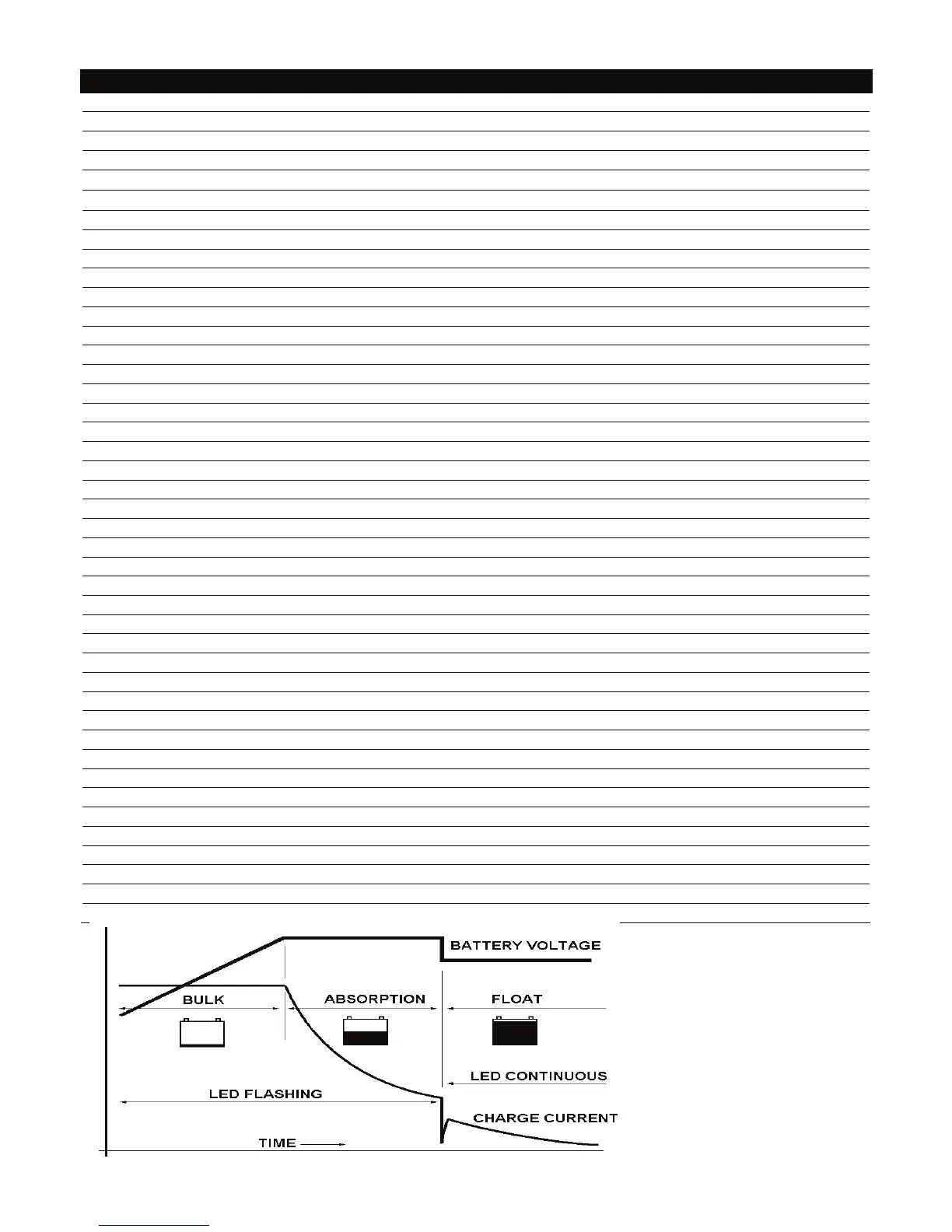

Figure 3 – Abbildung 3 –
Figuur 3 – Figura 3
Charge characteristic
