3.3.1 Bulk (LED 1 illuminates)
The battery is empty when only the first LED Bulk/ON
illuminates. In this stage the Mass Charger gives full current
(see fig. 2 stage A) and the battery voltage will slowly
increase.
3.3.2 (LED 1 and 2 illuminate)
After reaching the level of 27.6V (24V charger) the battery
is charged for about 25% and the second LED will also
illuminate. The Mass Charger still gives the maximum
output current and the voltage will increase till the
absorption voltage level (see fig. 2 stage A). The maximum
time of stage A is 8 hours.
3.3.3 Absorption (LED 1, 2 and 3 illuminate)
The battery has been charged for 80% (fig. 2 stage B). The
Mass Charger limits the charge voltage to a safe level and
the charge current will decrease slowly during charging.
3.3.4 (LED 1 to 4 illuminate)
The charge voltage is limited at the absorption level. As the
battery is almost full, the charge current will further
decrease.
3.3.5 Float (LED 1 to 5 illuminate)
When all LEDs are illuminated the battery is fully charged.
The float charge stage provides a lower output voltage,
sufficient enough to maintain the batteries at 100% charge
but low enough to prevent your batteries from unnecessary
stress. In this stage the Mass Charger is able to supply full
current to the connected users/loads.
Note: The Mass Charger automatically resumes operation
in Bulk stage after it was disconnected from an AC-
source temporarily.
3.4 Temperature compensated charging
By installing the battery temperature sensor, the charge
voltages are automatically adapted for deviating
temperatures. This can increase the battery’s lifetime
substantially and save you a lot of money.

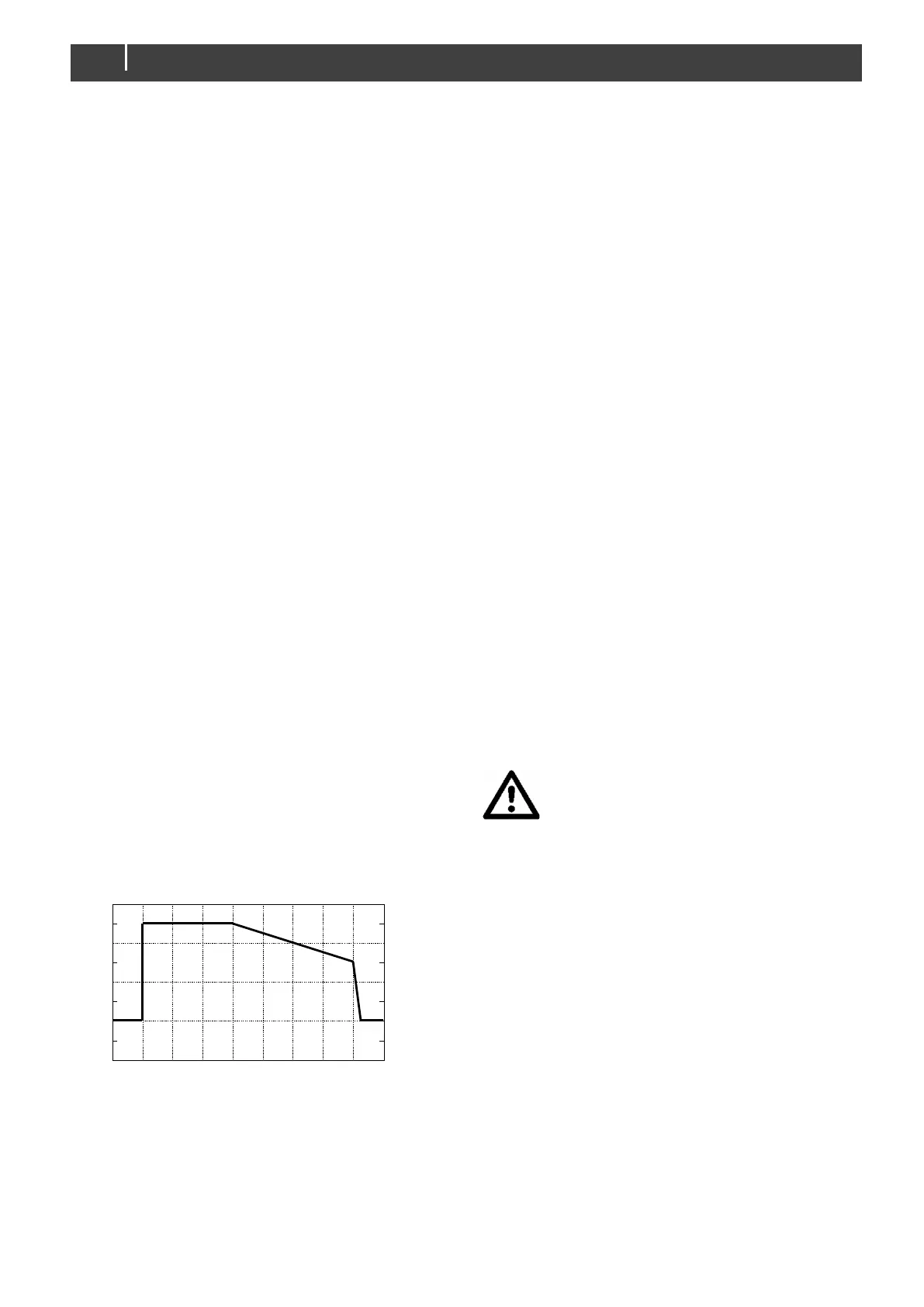

Figure 4: Temperature compensated charging
See figure 4. When the battery temperature is low, the
charge voltage increases. On the other hand, when the
battery temperature is high, the charge voltage is
decreased. Over charge and gassing are prevented this
way. This will extend the life of your batteries.
3.5 Compensation of the cable losses
The Mass Charger can compensate the voltage drop
occurring over the DC cables. For this purpose, the Mass
Charger is provided with terminals for sense wires. The
sense wires are connected closest possible to the batteries
in order to charge them with the right voltage. When only
the minus sense wire is connected only the losses of the
minus DC cable will be compensated. Connecting both
cables produces the best result, all losses will be
compensated until a maximum of 3V in total.
3.6 Alarm function
The battery charger is equipped with an integrated alarm
function. External equipment can be controlled by the
potential free contacts of this alarm. The maximum switch
current of the relay is 1A. Exceeding the setpoints (refer to
section 7.7) will activate the alarm.
3.7 Charging a second battery
Some installations have a main battery set and besides this
a smaller (cranking) battery with the same voltage. It is
possible to maintain this second battery with the 3A output
of the battery charger.
3.8 Equalize mode
An equalizing charge can be necessary after very deep
discharges and/or inadequate charges. This has to be
carried out according to the specifications of the battery
manufacturer.
WARNING!
Equalization is ONLY applicable for wet type
batteries and will damage gel/AGM/Spiral type
batteries!
Incorrect use of the equalize mode may lead to
hazardous situations. Do not smoke or use any
naked flame or other sources of ignition due to risk
of explosion. Always ventilate the battery room
during equalizing to clear the air.
During equalizing the batteries are brought into the gas
state and permitted load voltages may be exceeded. Refer
to chapter 9 for characteristics. Therefore, appropriate
measures must be taken, e.g. disconnect all loads from the
battery and ventilate the room. For these reasons the
equalizing mode should only be used by trained technical
engineers.
The equalizing mode can only be started when the Mass
Charger is in operation. To start the equalize mode, select
Equalize in the MasterBus device settings (section 7.2).
