Mastervolt MASS SINE 12/500

INSTALLATION
EN / MASS Sine 12/500 / March 2000
33
8.4 MOUNTING OF THE CABINET
For mounting the MASS inverter follow the described
instructions:
1 Determine the mounting points (see fig. 3).
2 Drill mounting holes for the cabinet.
3 Mount the MASS inverter with four screws or
bolts (M6) to the wall.
4 Fasten all screws or bolts securely.
On Low batt.
Temp

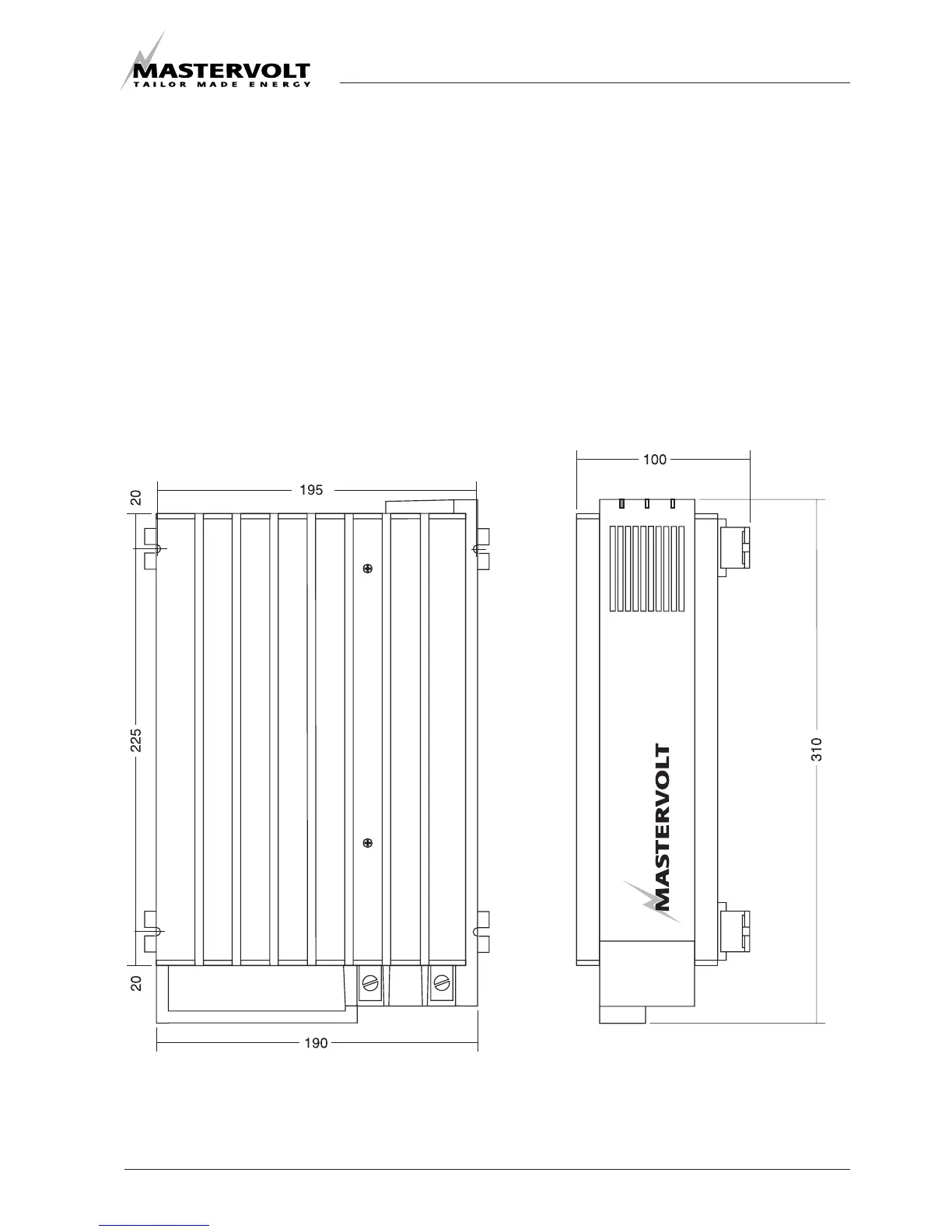

Fig. 3: Dimensions of the Mass Sine 12/500.
