EN / MASS Sine 12/500 / March 2000
35
INSTALLATION
8.6 CONNECTING THE REMOTE CONTROL
PANEL (see fig. 4)
The remote control panel C4-RI for the MASS inver-
ter comprises an off/on switch and two LEDs. The
LED 'inverter on' indicates proper functioning of the
inverter and the availability of 230/117V AC output
voltage. The LED 'failure' indicates overload, over-
temperature or too low voltage.

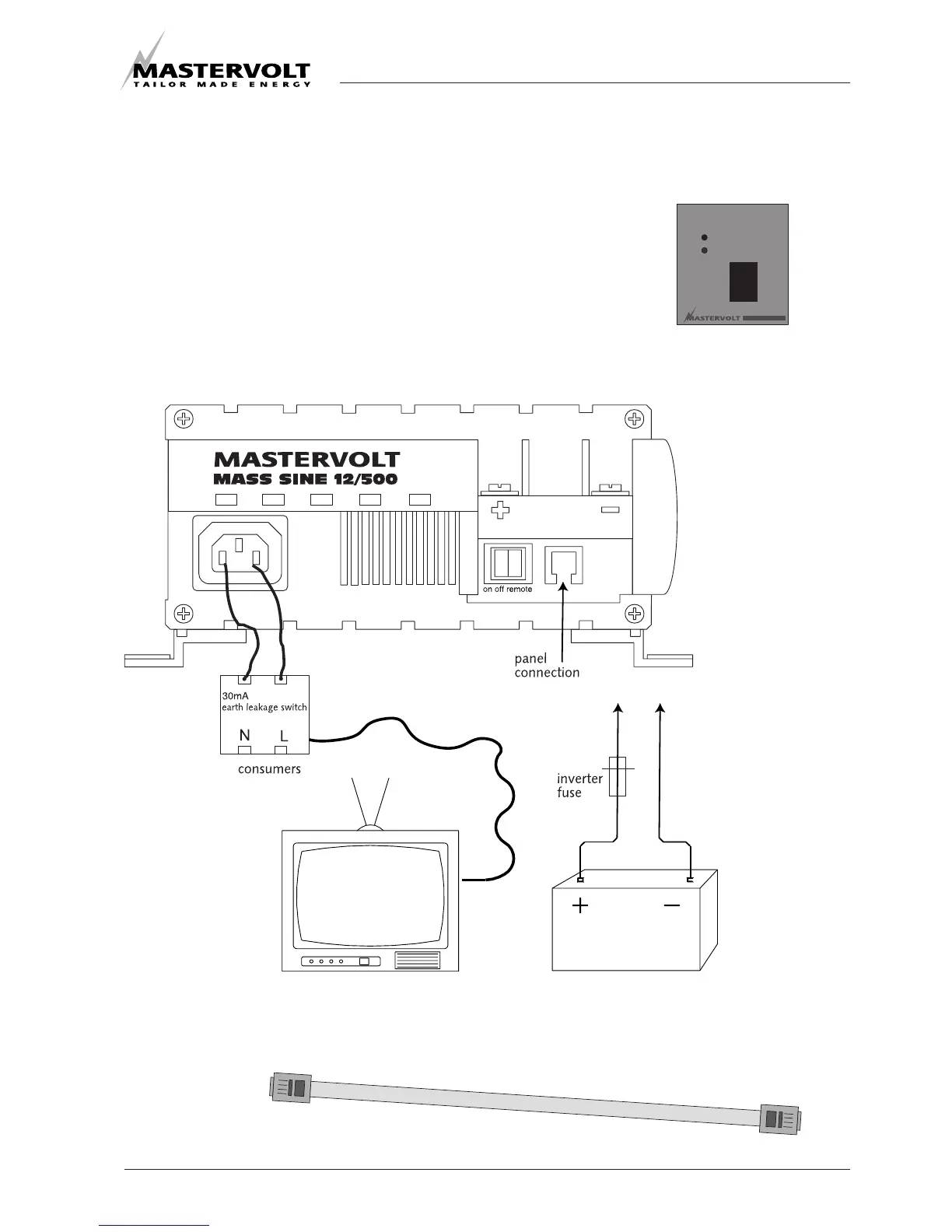

Afb. 4: Connection of the Mass Sine 12/500.
Afb. 5: Connection cable for panel C4-RI
(not delivered as a standard).
