7 LOW BATTERY ALARM MENU
The Masterlink MICC checks the state of charge
of the battery continuously and gives an alarm
when the battery is reaching a low voltage set
point or a low discharge floor. The Masterlink
MICC is provided with a relay to control an
external alarm (check also chapter 3.4 for more
information).
To enter the Alarm menu hold
the Select button for 5 seconds
until the Select-LED flashes.
Now press the Volt-Amp button
to enter the low batter alarm
menu.
With the Select button you can
now scroll through the levels of
this menu and adjust several
alarm set points.

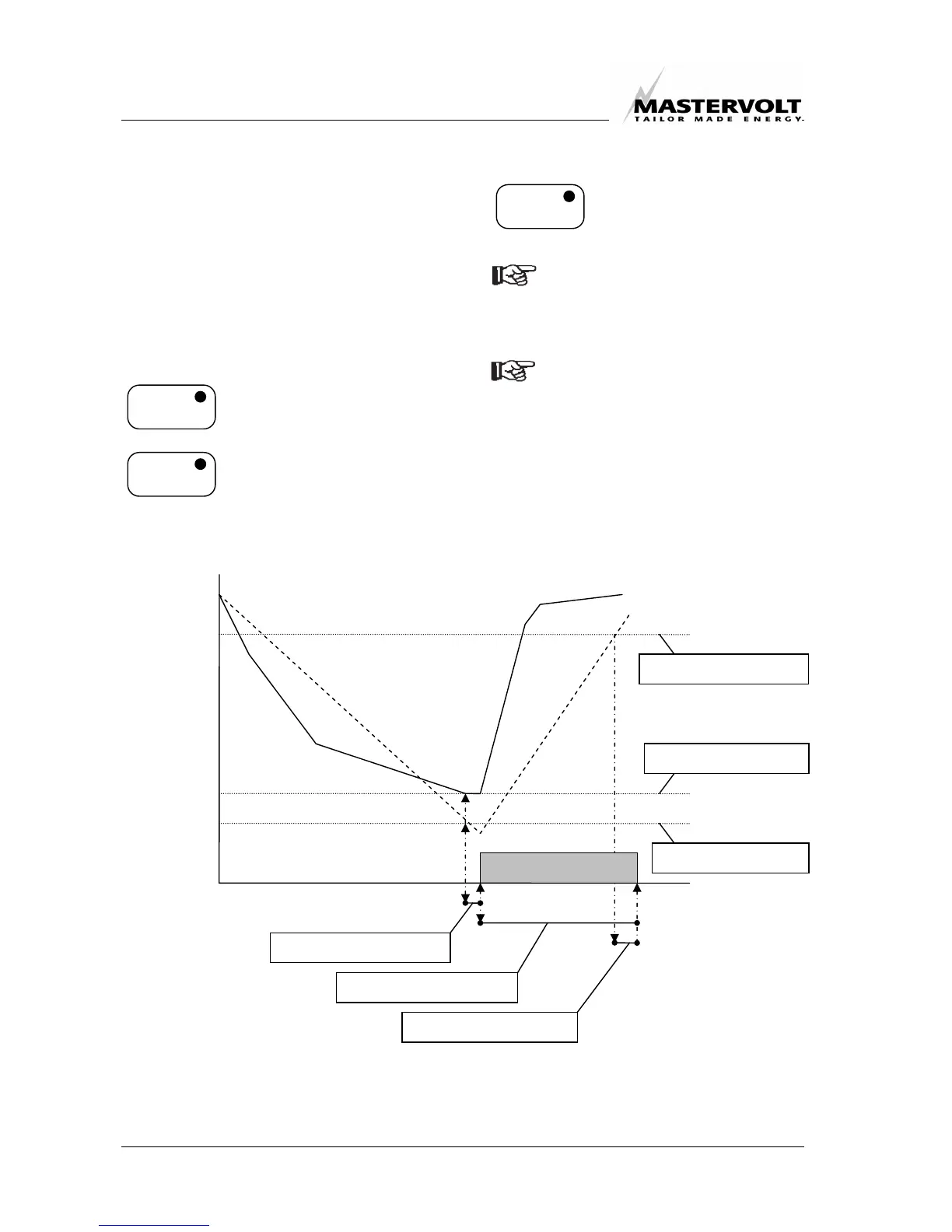

For more information see also the set-
up drawing (figure 8) and figure 10. The
numbers that are mentioned behind the
levels correspond with this drawing.
Note: If the Select button is held for
five seconds, the arrow in the right part
of the display will change. If the arrow is
pointing downwards (È) the set value
can be decreased by means of the Set-
up button. If the arrow is pointing
upwards (Ç) the set value can be
increased.
