Mastervolt MASTERLINK MICC

ADDITIONAL INFORMATION
34 November 2004 / Masterlink MICC / EN

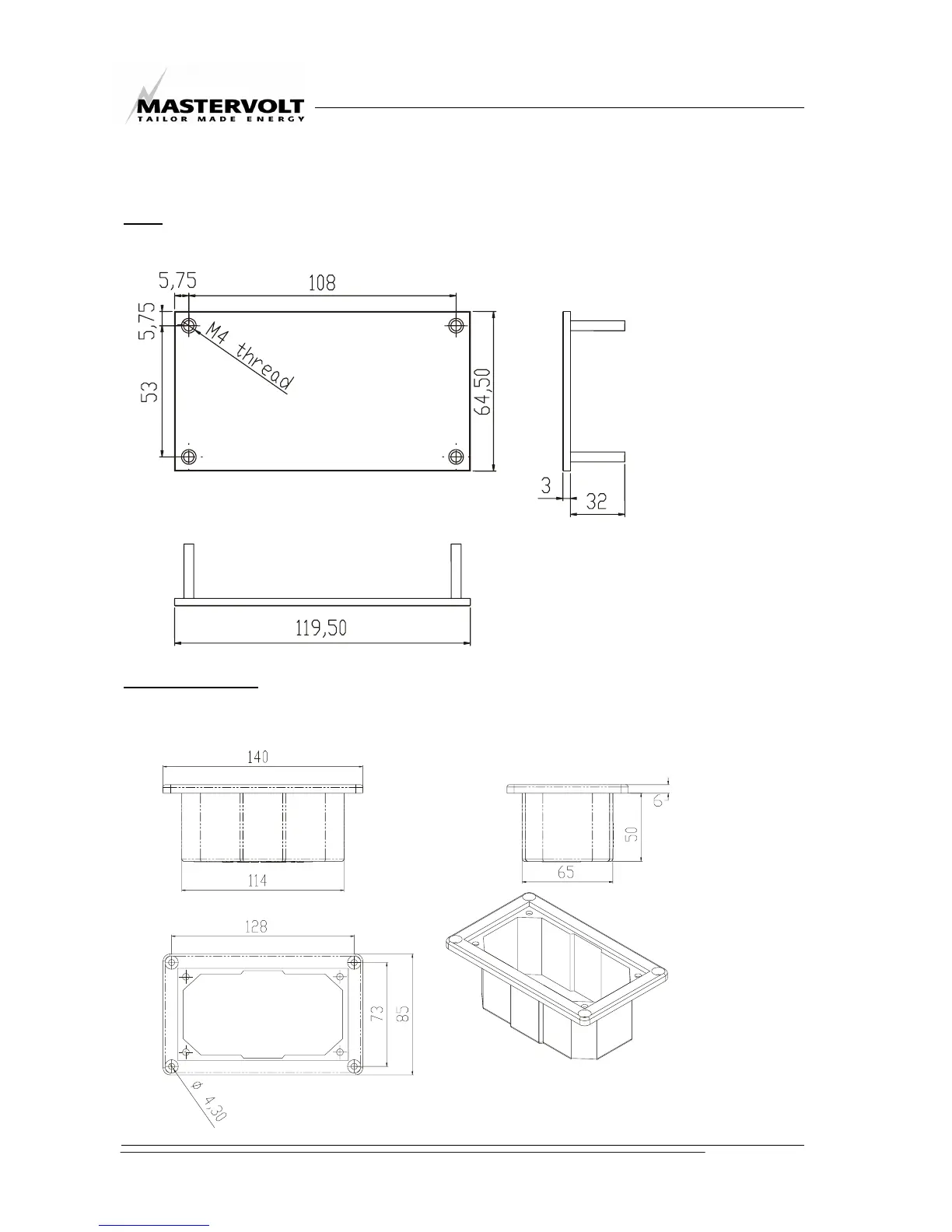

15 DIMENSIONS
Panel
Minimum required dimensions for installing (panel only): width x height x depth: 120 x 65 x 40mm
Grey mounting-box
Dimensions grey mounting-box: width x height x depth: 140 x 85 x 50mm
Dimensions for cut-out: width x height: 120 x 68mm (use the packing as mounting template)
