Mastervolt MasterShunt 500

PARALLEL USE
14 February 2011 / MasterShunt / EN
7 PARALLEL USE
For load currents which exceed 300A continuous
current, more than one MasterShunt can be installed
to monitor the same battery (bank). The
MasterShunts are then configured in parallel to the

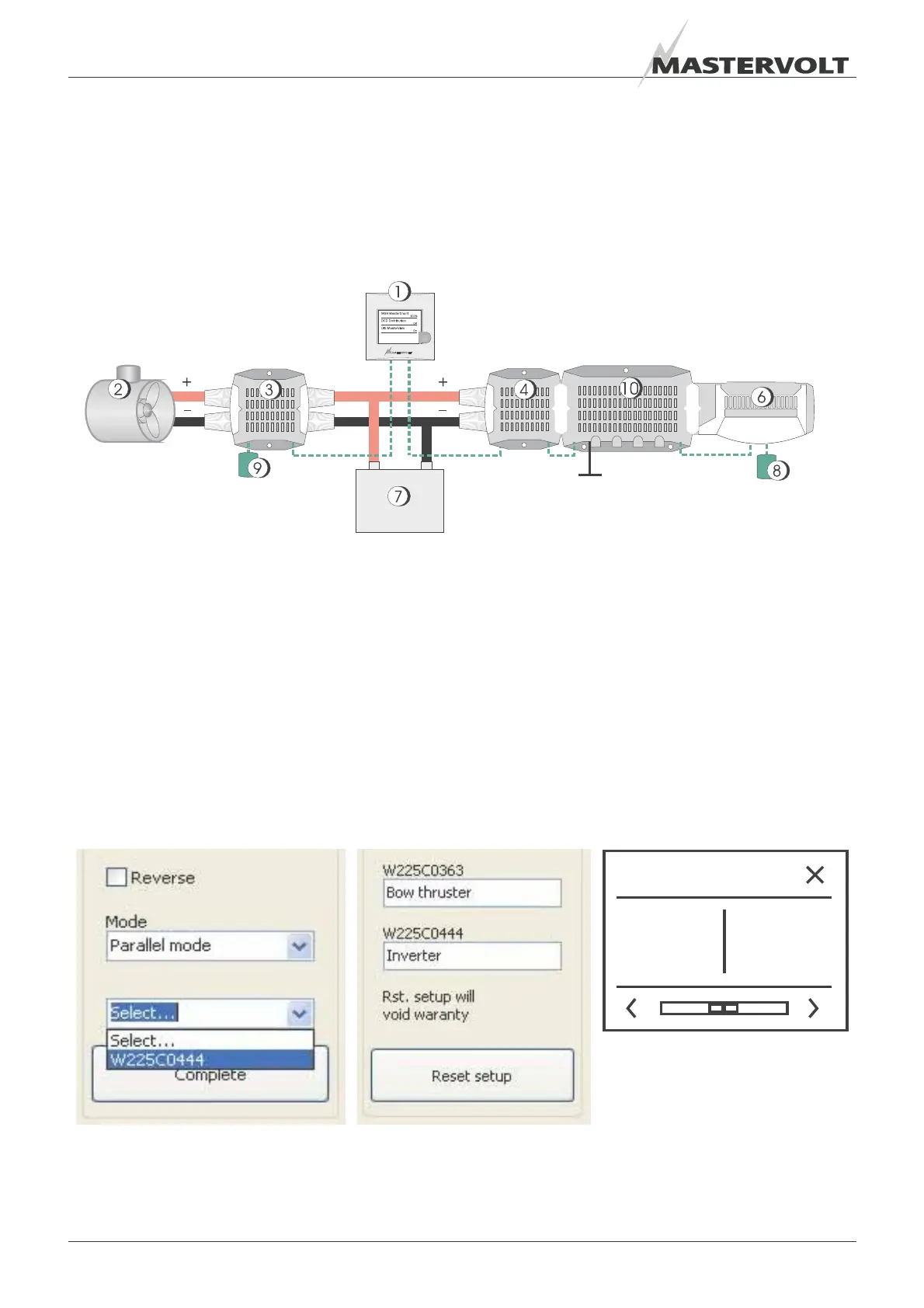

battery, like shown. Figure 13 shows the parallel
configuration of two MasterShunts (3) and (4) and
other products.
1. Masterview Easy display
2. Bow thruster
3. Mastershunt in parallel 1, in Reversed setting
4. Mastershunt in parallel 2
5. DC Distribution 500
6. Digital DC 10x10A
7. Battery
8, 9. MasterBus Terminator
For parallel setup of two MasterShunts, follow next
steps:
• Reset both Mastershunts to factory settings;
• During First start up select Advanced mode/
Parallel mode on one of the MasterShunts.
• Enter the serial number(s) of the other
MasterShunt(s), refer to figure 14. These
MasterShunt(s) will be the slave(s).
The measurements of all parallelled MasterShunts
are combined and shown as one MasterShunt.
The currents however are shown separately, see
figure 16. This means, renaming the MasterShunts
can be convenient (see figure 15).
Figure 14: Parallel setting Figure 15: Renaming MasterShunts
Figure 16: MasterView display
Bow
thruster
0.0 A
MSH MasterShunt
Inverter
- 8.0 A
Figure 13: System example 2
