11 CONFIGURATION
The Configuration Menu is used to adjust general
settings like displayed language, energy save mode
and advanced settings for your battery bank. Here
you can also opt for resetting the MasterShunt to the
factory settings. A MasterAdjust example is shown in
figure 18.

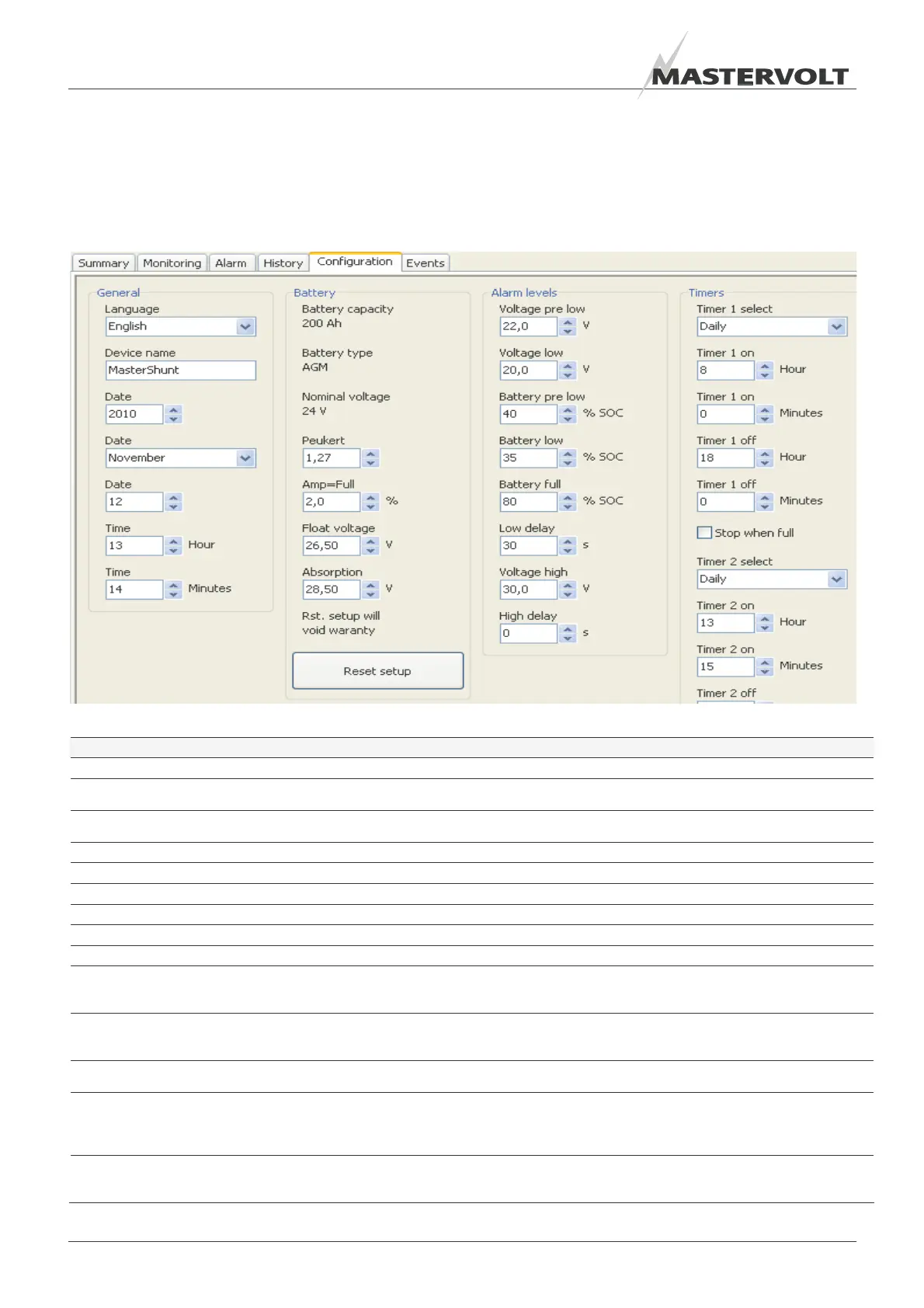

Figure 18: MasterAdjust Configuration screen
Variable Description Factory sett.* Range
General
Language Change the language after your setting at first
start up. See chapter 5 for more instructions.
English 11 languages,
see section 14.1
Device name Name of the battery bank; example: POWER
BANK.
MasterShunt Any maximum 12
character name
Date set. year Set the MasterShunt clock year. 2000 2000-2200
Date set. Month Set the MasterShunt clock month. February February-December
Date setting day Set the MasterShunt clock day. 1 1-31
Clock (hour) Set the MasterShunt clock hour. 0 0-23
Clock (min) Set the MasterShunt clock minute. 0 0-59
Battery
Battery capacity You see the battery capacity selected during
FIRST START UP. Refer to chapter 6. To change
this value you need to reset the setup.
Value from First
Setup
30-10000Ah
Battery type You see the battery type selected during FIRST
START UP. Refer to chapter 6. To change this
value you need to reset the setup.
Value from First
setup
Gel, AGM, Wet
battery, Li-ion
Nominal voltage Nominal battery voltage. To change this value you
need to reset the setup.
Value from First
setup
12V ,24V, 48V
Peukert Peukert coefficient. Do not change this setting
without extended knowledge of the installed
batteries. See chapter 13.
Wet: 1.27
Gel: 1.27
AGM: 1.27
Li-ion: 1.00
1,00-2,50
Amp=Full Charge amps for Battery full. Several parameters
must be met before the MasterShunt will consider
the battery fully charged. See section 12.5.
2.0% 0.1-10%
