OPERATION
EN / MasterShunt / February 2011 7
Another way of displaying and setting values is the
MasterAdjust software, shown for MasterShunt
application.

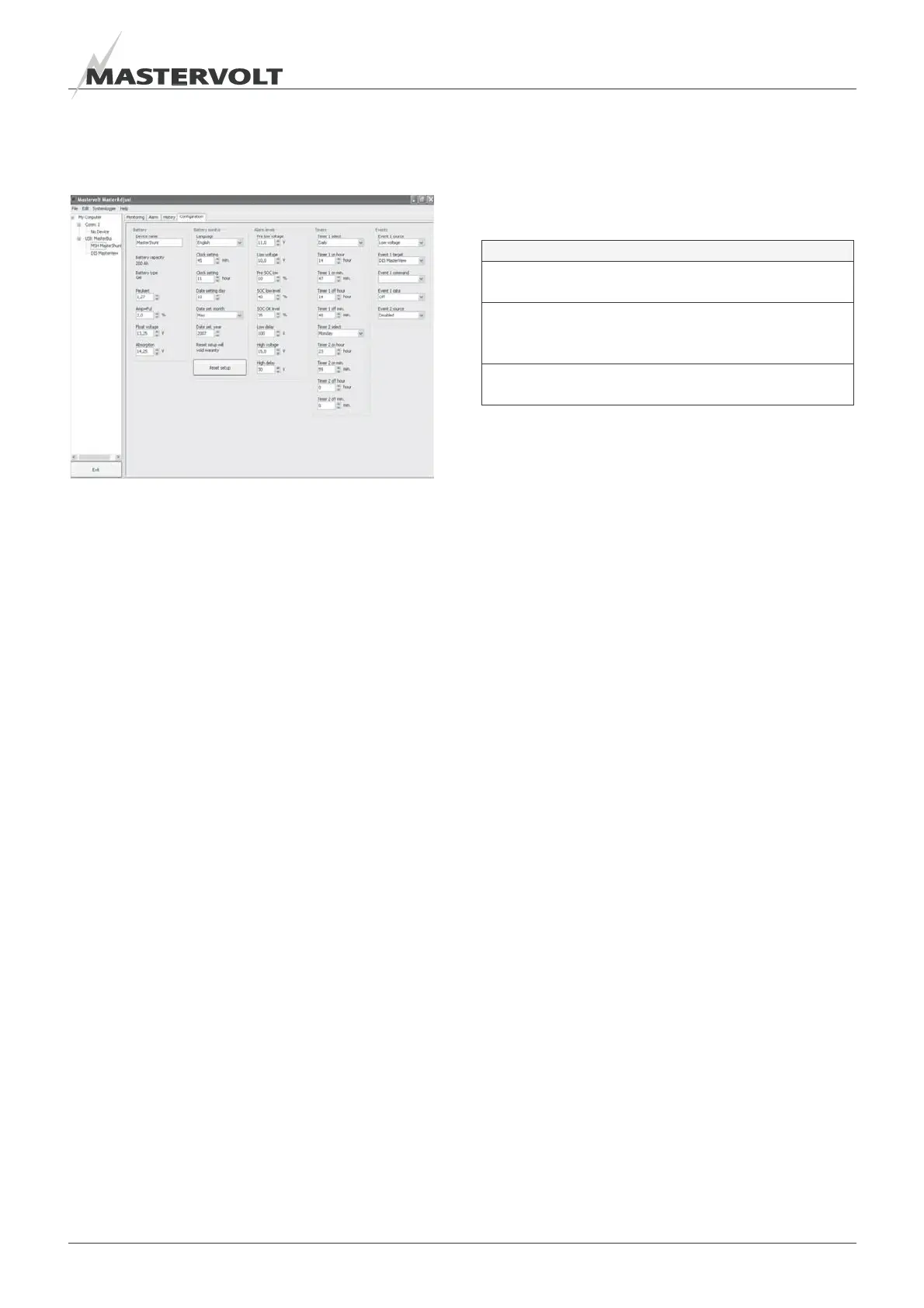

Figure 3: MasterAdjust software
3.5 COMMUNICATION LEDS
The MasterShunt features two LEDs, between the
DC connectors at the load side and battery side (see
also figure 1). These two green LEDs blink together
in three modes:
Mode Blinking Meaning
1 Simultaneously short, 10
second intervals
No MasterBus
activity
2 Simultaneously,
other than 10 second
intervals
MasterBus
activity
3 Alternately, regular
intervals of half a second
Alarm situation
