13.7 FUSE CHARACTERISTIC
13.8 ORDERING INFORMATION
Part number Description
77020100 MasterShunt
77020200 DC Distribution
77010305 MasterView Easy MkII
77030100 MasterBus USB interface, required as interface between your PC and the MasterBus network
77040000* MasterBus terminator for the MasterBus network
77040020 MasterBus connection cable 0,2m / 0.6ft
77040050 MasterBus connection cable 0,5m / 1.6ft
77040100 MasterBus connection cable 1,0m / 3.3ft
77040300 MasterBus connection cable 3,0m / 10ft
77040600* MasterBus connection cable 6,0m / 20ft
77041000 MasterBus connection cable 10m / 33ft
77041500 MasterBus connection cable 15m / 49ft
77042500 MasterBus connection cable 25m / 82ft
77050100 100m / 330ft MasterBus cable
77050200 50 pcs. MasterBus connectors
77050000 Complete set to assemble MasterBus cables. Delivery includes: 100m / 330ft MasterBus cable,
50 pcs. modular jacks and crimping tool
77049000* T-Fuse 500A, internal fuse for the MasterShunt 500
* These parts are standard included with the delivery of the MasterShunt
Mastervolt can offer a wide range of products for
your electrical installation, including AGM batteries,
GEL batteries, DC distribution kits, battery switches,
battery cables and battery terminals.
See our website www.Mastervolt.com for an
extensive overview of all our products and free to
download software for monitoring and configuration.
500
1000
5000
0.01 0.1 1.0
10 100 1000
Time (seconds)
Current (Amperes)
3000
T3A 500A Melting time - Current
300
100002000
500
2500
700
600

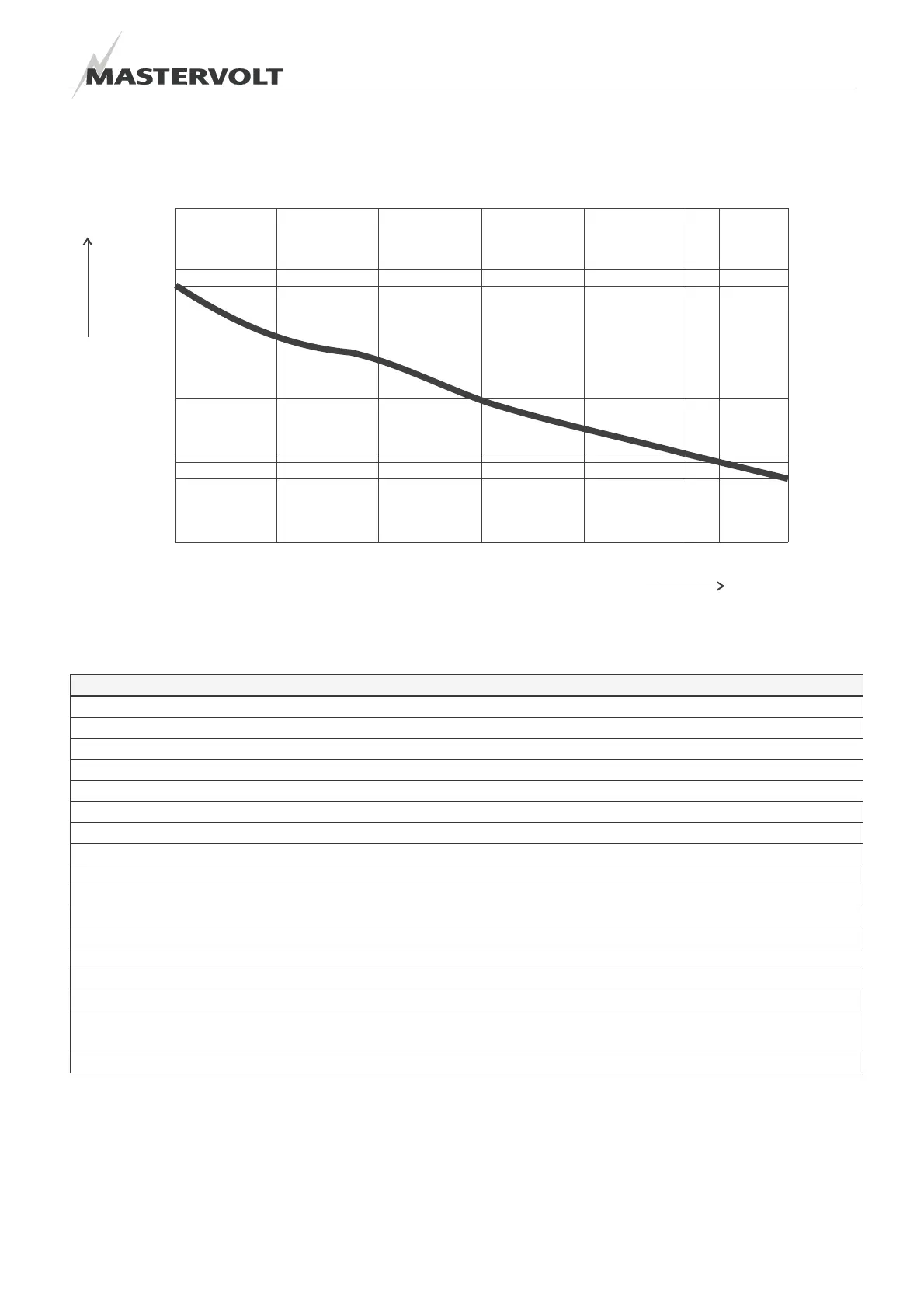

Figure 20: Melting time of the fuse included, measured at 25°C (77°F),
derating 5% / 10°C (3% / 10 °F)
