5.4 CONTROL
The MasterView Easy is a monitoring and control
panel for the MasterBus network.
The display guides you through the different menus,
starting with the selection of device you wish to
monitor. See the example on these two pages.
NOTE: The screens shown may differ
from the screens on your own
MasterView Easy.

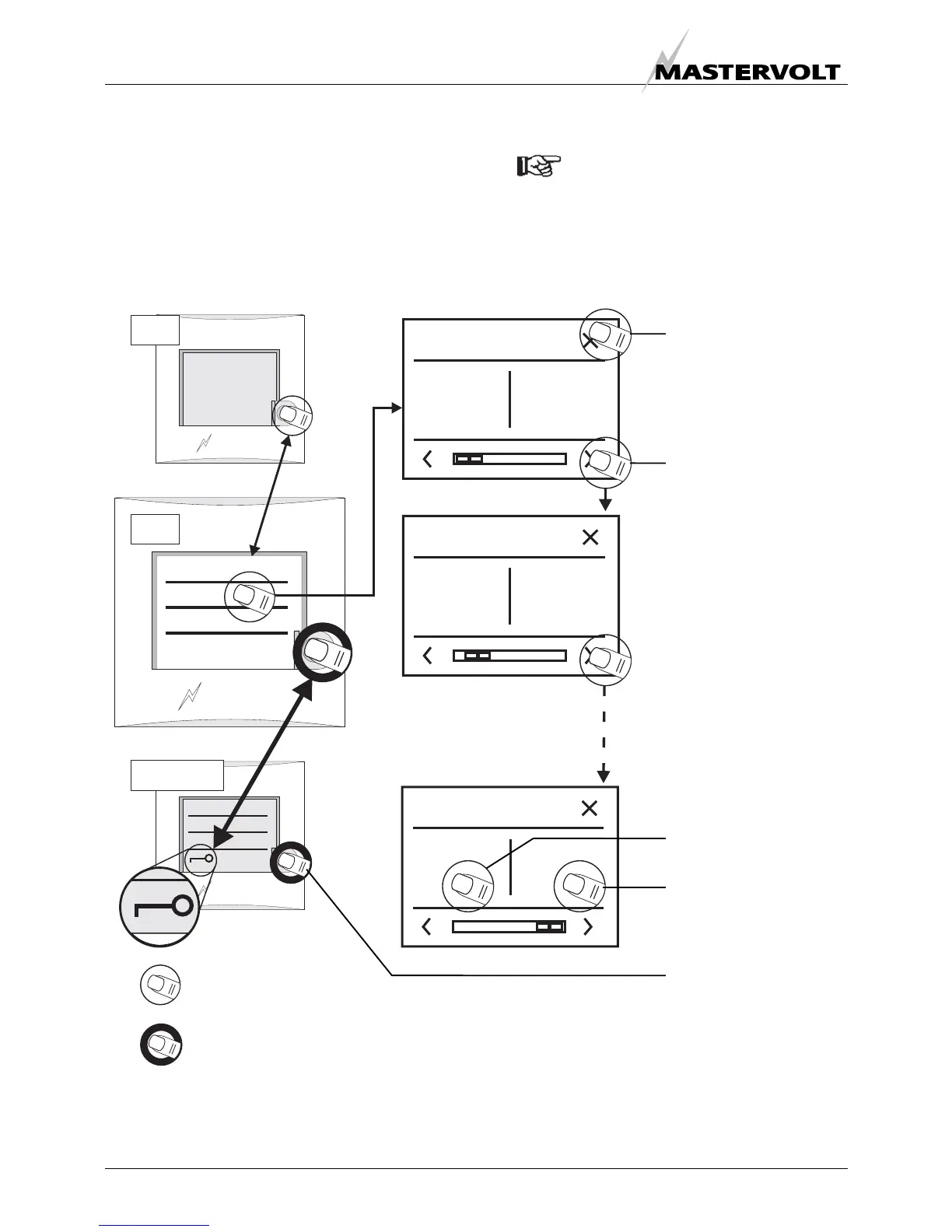

Figure 10: Operation of the MasterView Easy, opening screens
M ASTERVOLT
M ASTERVOLT
M ASTERVOLT
M ASTERVOLT
M ASTERVOLT
M ASTERVOLT
MasterShunt
MV Easy
Mastership
Off
On
Locked
=
=
State of
Charge
100%
Time
remaining
12:34:56
Cap.
consumed
0Ah
Go to
Alarm
Go to
Configuration
MSH MasterShunt
MSH MasterShunt
MSH MasterShunt
100%
Distribution
OK
On
MasterShunt
MV Easy
100%
Distribution
OK
On
System level Product level
Exit Product level,
Go to system level
Scroll through
Product menus
Go to
Product Configuration
Go to
Product Alarms
Unlock
Press shortly: 0-2 sec.
Press long: longer than 2 sec.
