INSTALLATION SPECIFICATIONS
30 Copyright © 2009 Mastervolt / May 2009 / Whisper 6/8/12/16 Ultra for mobile applications / EN

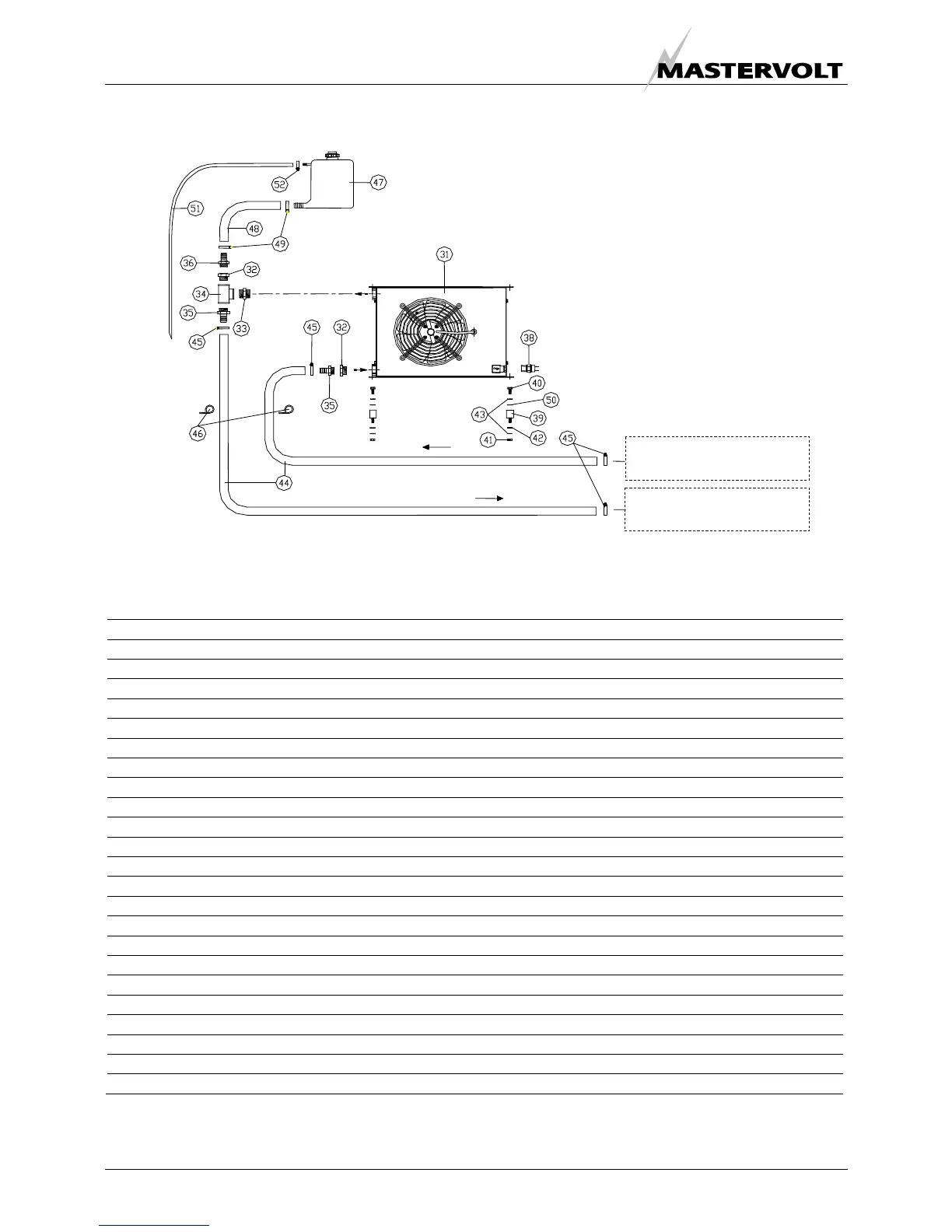

Figure 36: Radiator cooling kit alternator ¾” x 25mm 230VAC for Whisper 16 Ultra
RADIATOR COOLING KIT ALTERNATOR ¾” x 25mm 230VAC for Whisper 16 ULTRA
pos. qty article no description
31 1 50230307 Radiator AP 430 230VAC
32 1 50221103 Straight reducer m/f 1-3/4"
33 1 50221064 Male nipple 1"
34 1 50221044 TEE fittings 1"
35 2 50221010 Male hose connection 1x25
36 1 50221004 Male hose connection 3/4x20
38 1 50212405 Temperature switch 35-45 degr
39 4 50201121 Vibration mounting 30x25
40 4 50211152 Bolt hexagonal ZP M8x16
41 4 50211465 Nut hexogonal SP M8
42 4 50211405 Washer SP M8
43 8 50211445 Washer spring SP M8
44 6m 50220012 Cooling water hose smooth (1") 25x34 m
45 1.5m 50220011 Cooling water hose smooth (3/4")18x27
45 4 50221503 Hose clamp stainless 25-35 mm
46 8 50221599 Hose support stainless 35x12 mm
47 1 50230529 Bracket expansion tank for 50230531 pass
47 1 50230531 Expansion tank 20 mm
47 1 50230532 Cap for expansion tank 50230531
49 2 50221502 Hose clamp stainless 22-30 mm
50 4 50211437 Washer mudguard SP 8x30x1,5
51 1m 50220081 Hose polyurethane 8x11mm
52 1 50221532 Hose clamp stainless mini 9-11
TOTAL 50201888 Radiator cooling kit alternator 230VAC Whisper 16 Ultra
Generator Alternator
coolant outlet ¾” x 25mm
Generator Alternator
coolant inlet ¾” x 25mm
Open drain
