INSTALLATION SPECIFICATIONS
EN/ Whisper 6/8/12/16 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 31
RADIATOR COOLING KIT ENGINE 1” - 230VAC for Whisper 6 Ultra
pos. qty article no description
1 1 50230304 Radiator cooler AP 300/2E 230VAC
2 2 50221502 Hose clamp stainless 22-30 mm
3 1 50221064 Male nipple 1"
4 1 50221044 TEE fitting 1"
5 2 50221010 Male hose connection 1x25
6 1 50221103 Straight reducer m/f 1-3/4"
7 1 50221004 Male hose connection 3/4x20
8 1 50212409 Temperature switch 87-82 degr
9 4 50201121 Vibration mounting 30x25
10 4 50211152 Bolt hexagonal ZP M8x16
11 4 50211465 Nut hexogonal SP M8
12 8 50211405 Washer SP M8
13 8 50211445 Washer spring SP M8
14 6m 50220012 Cooling water hose smooth (1") 25x34 m
15 4 50221503 Hose clamp stainless 25-35 mm
16 8 50221599 Hose support stainless 35x12 mm
17 1 50230529 Bracket expansion tank for 50230531 pass
17 1 50230531 Expansion tank 20 mm
17 1 50230532 Cap for expansion tank 50230531
18 1.5m 50220011 Cooling water hose smooth (3/4")18x27
19 4m 50220005 Hose hydraulic 7,5x15mm
21 2 50221522 Hose clamp stainless 10-16
TOTAL 50201879 Radiator cooling kit engine 1” - 230VAC Whisper 6 Ultra
RADIATOR COOLING KIT ENGINE 1” - 12VDC FOR Whisper 6 Ultra. Same as article no. 50201879, except:
no qty article no description
1 1 50230302 Radiator cooler AP 300/2 E 12VDC
TOTAL 50201871 Radiator cooling kit engine 1” - 12VDC Whisper 6 Ultra
RADIATOR COOLING KIT ENGINE 1” - 24VDC FOR Whisper 6 Ultra. Same as article no. 50201879, except:
no qty article no description
1 1 50230303 Radiator cooler AP 300/2 E 24VDC
TOTAL 50201880 Radiator cooling kit engine 1” - 24VDC Whisper 6 Ultra
Generator
Engine coolant outlet 1”
Generator
Engine coolant intlet 1”
Generator
Expansion tank connection

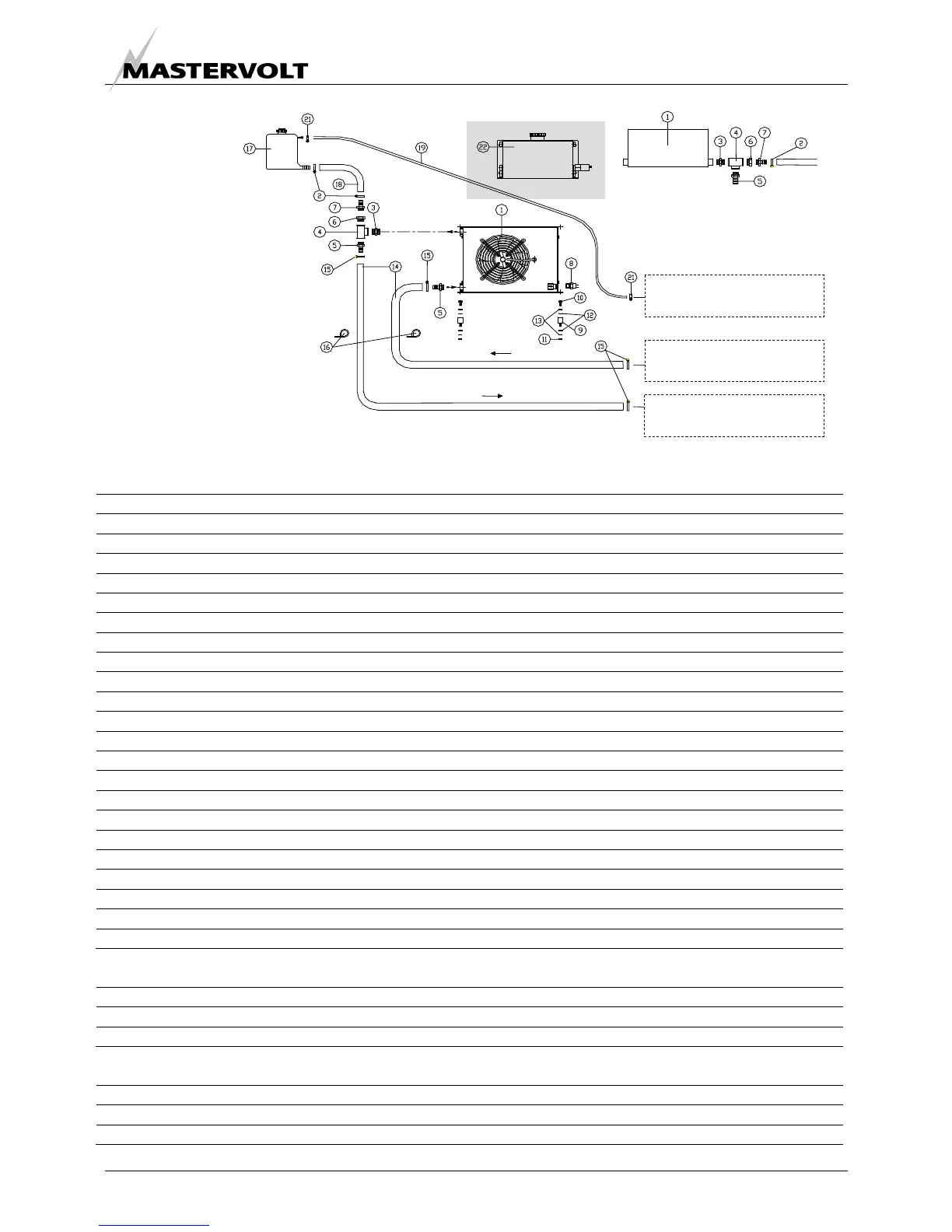

Roof mounting of the radiator
