INFORMATION
22 Copyright © 2008 Mastervolt / December 2008 / Whisper 12 Ultra - Three phase for mobile applications/ EN

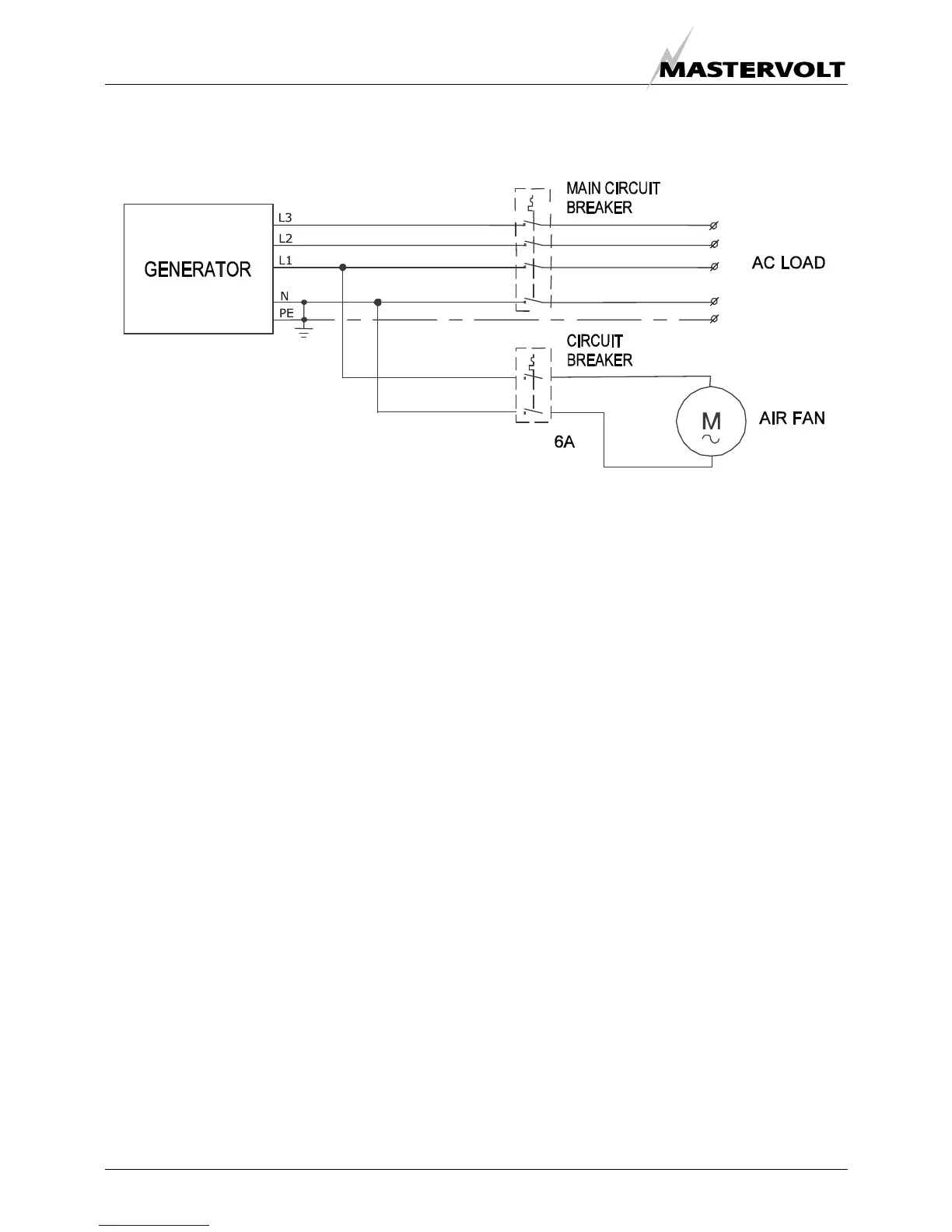

2.5.19 Electrical diagram radiator fan connection
Fig. 15: Electrical diagram for standard fan control using a 230 Volt AC radiator fan
