INFORMATION
10 Copyright © 2008 Mastervolt / December 2008 / Whisper 12 Ultra - Three phase for mobile applications/ EN
2.4 COMPONENTS
2.4.1 Main components to identify

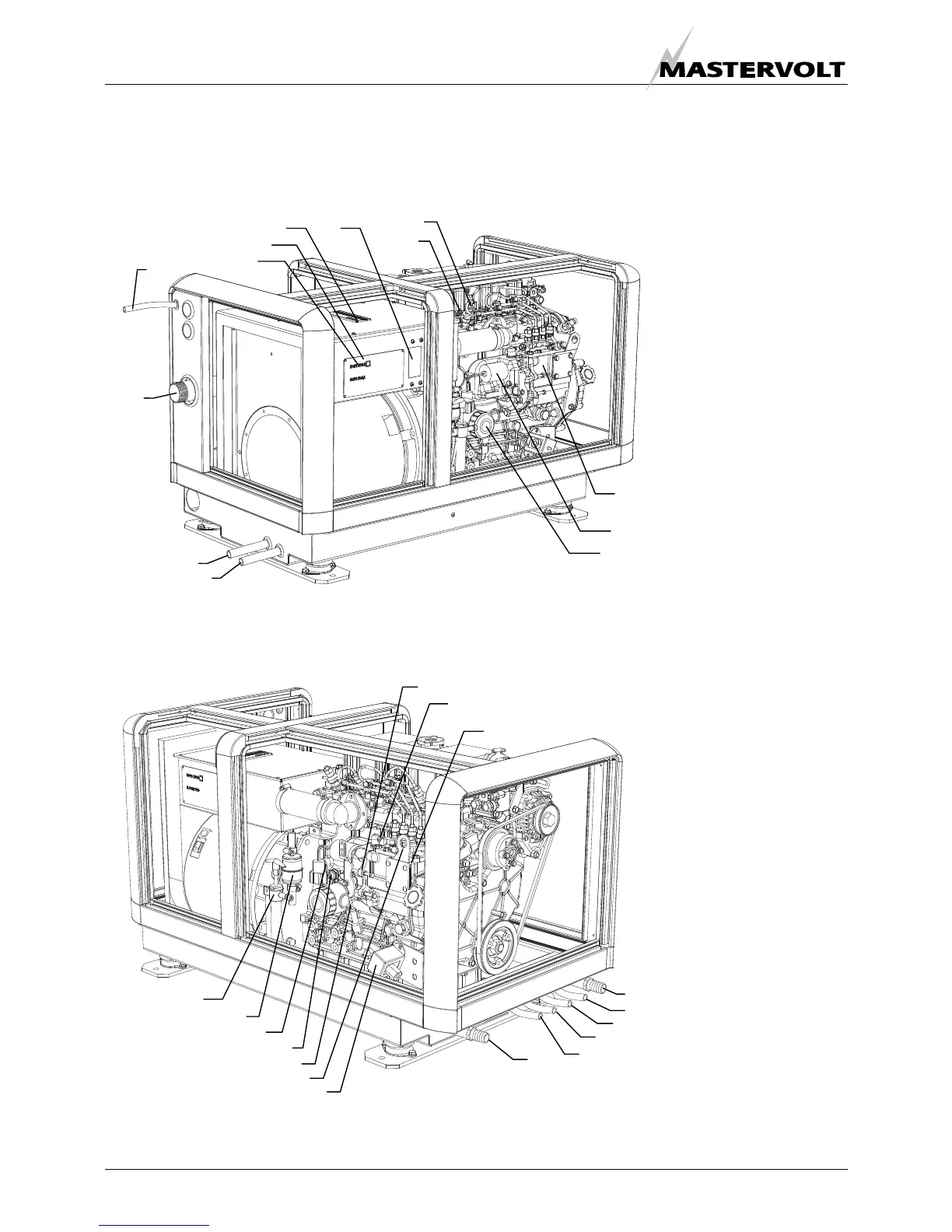

Fig. 3 Front left view main components Whisper 12Ultra – three phase, mobile
Fig. 4: Front right view main components Whisper 12Ultra – three phase, mobile.
21
24
23
27
28
20
22
25
26
35
29
30
31
32
33
34
01
04
03
02
07
08
09
13
11
10
05
06
12
20 Engine speed adjusting
screw
21 Injection pump air
bleeding screw
22 Engine serial number
23 Coolant engine out
24 Fuel out Ø8mm
25 Fuel in Ø8mm
26 Battery negative (–)
27 Battery positive (+)
28 Coolant engine in
29 Fuel lift pump
30 Hoist eye front
31 Engine oil dipstick
32 Engine oil pressure switch
33 Coolant drain plug
34 Fuel filter
35 Oil sump handpump
01 Identification plate
02 Digital Diesel Control
(DDC)
03 Control panel
04 Fuses
05 Fuel injector (4x)
06 Glowplug (4x)
07 Fuel injection pump
08 Fuel solenoid
09 Engine oil filter
10 AC power output
11 Remote control
12 Dry exhaust
13 Expansion tank Ø8mm
