Mastervolt whisper 3.5m

INSTALLATION SPECIFICATIONS
EN / WHISPER 3.5 / October 2009 / Copyright © 2009 Mastervolt 21

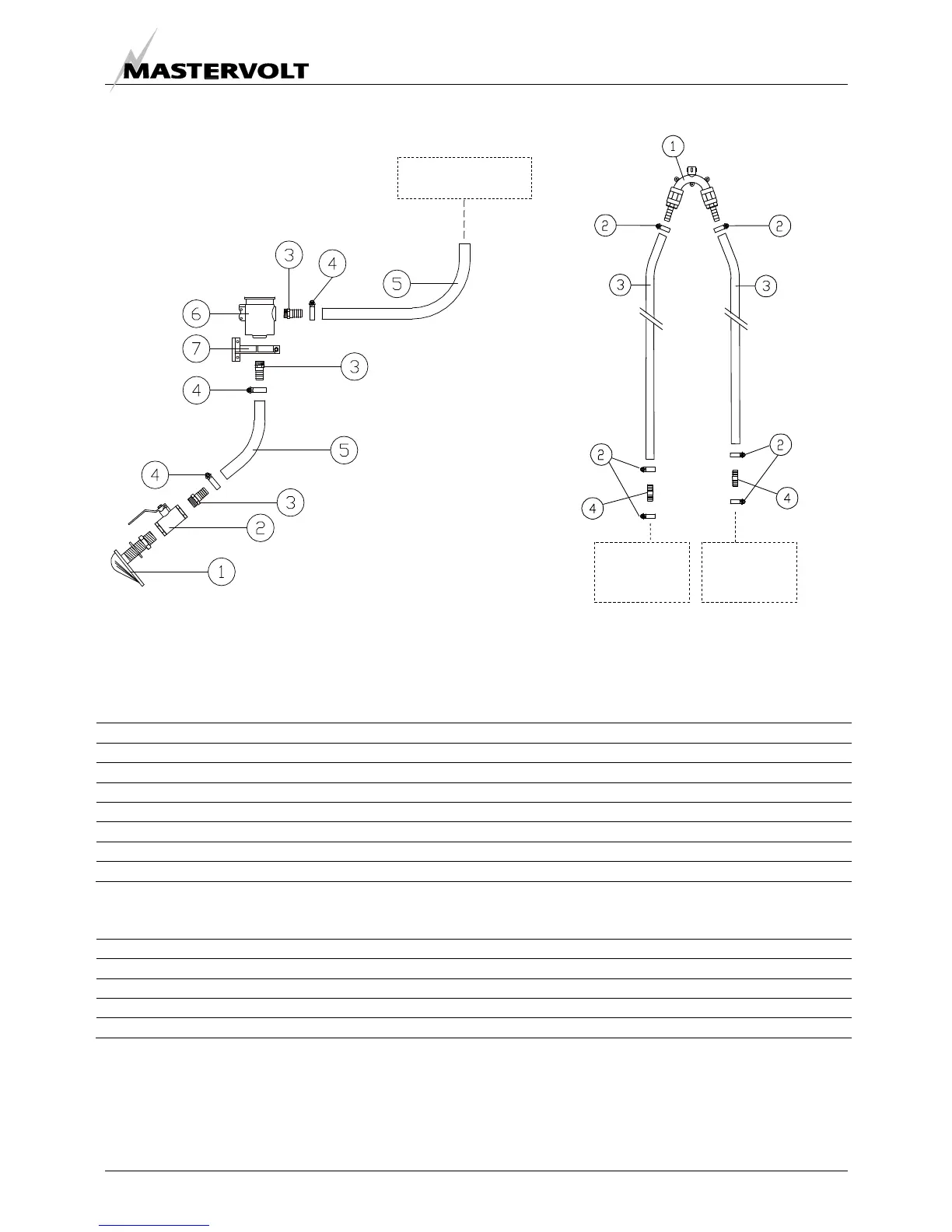

Figure 26: Installation materials Water inlet kit and Syphon breaker kit
WATER INLET KIT 12.5 mm
pos. qty article no description
1 1 50230052 Intake strainer 3/4"
2 1 50230042 Lever operated ball valve FF 3/4"
3 3 50221016 Male hose connection 3/4"x13
4 3 50221521 Hose clamp stainless 12-20
5 3m 50220055 Cool. water hose transp.spiral 13x19mm
6 1 50230062 Nickel plated brass intake strainer 3/4"
7 1 50230067 Mouting bracket small waterstrainer 1158
TOTAL 50230201 WATER INLET KIT 12.5 mm
SYPHON BREAKER KIT 12.5 mm
pos. qty article no description
1 1 50230017 Syphon breaker valve 12.5mm (1/2”), complete (including valve assembly)
2 6 50221521 Hose clamp stainless 12-20
3 3m 50220057 Cooling water hose warm water 13x21mm
4 2 50221260 Hose connector 12.5mm (1/2”)
TOTAL 50230272 SYPHON BREAKER KIT 12.5 MM (1/2")
Generator
cooling water inlet
Bypass
cooling
water out
Bypass
cooling
water in
WATER INLET KIT 1/2” (12.5 mm) SYPHON BREAKER KIT 1/2” (12.5 mm)
