INSTALLATION SPECIFICATIONS
22 Copyright © 2009 Mastervolt / October 2009 / WHISPER 3.5 / EN

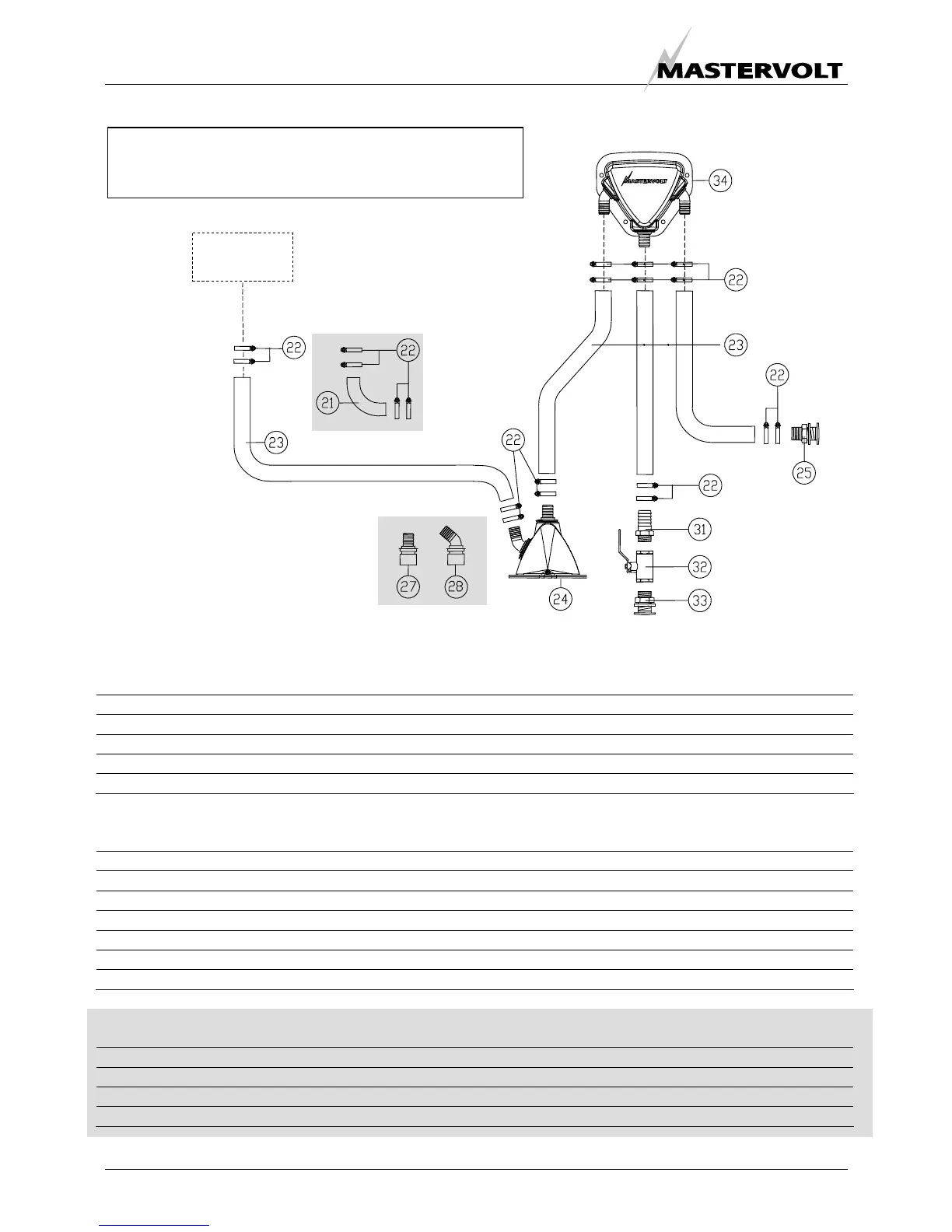

Figure 27: Installation materials “Delta” exhaust kit ø 40 mm (1
5
/
8
”) and water separator kit 40 mm (1
5
/
8
”)
“DELTA” EXHAUST KIT Ø 40 mm (1 5/8”)
pos. qty article no description
22 8 50221504 Hose clamp stainless 32-44 mm
23 3m 50220033 Marine exhaust hose 40 mm (1⅝”)
24 1 50230093 Waterlock 40 mm Delta
25 1 50230038 Brass hull fitting hose connection 1¼"x40
TOTAL 50230251 DELTA EXHAUST KIT 40 mm
“DELTA” WATER SEPARATOR KIT 40 mm (1 5/8”)
pos. qty article no description
22 8 50221504 Hose clamp stainless 32-44 mm
23 2.5m 50220033 Marine exhaust hose 40 mm (1⅝”")
31 1 50221015 Male hose connection 1¼” x 40mm
32 1 50230044 Lever operated ball valve FF 1¼”
33 1 50230033 Brass through hull fitting 1¼” x 70
34 1 50230097 Water / gas separator Delta 40/40/40mm (1⅝")
TOTAL 50230261 Delta water/gas separator kit 40mm
OPTIONAL INSTALLATION MATERIALS
pos. qty article no description
21 1 50201830 Elbow 90° adapter exhaust hose
22 4 50221504 Hose clamp stainless 32-44 mm
27 1 50230113 Straight coupling Delta 40mm
28 1 50230112 Elbow (45º) Delta 40mm
Generator
exhaust
According to ABYC recommendations all hose connections must
be fitted with two hose clamps
Maximum torque hose clamps: 12Nm / 105 InLbs
