INSTALLATION SPECIFICATIONS
EN / WHISPER 3.5 / October 2009 / Copyright © 2009 Mastervolt 23

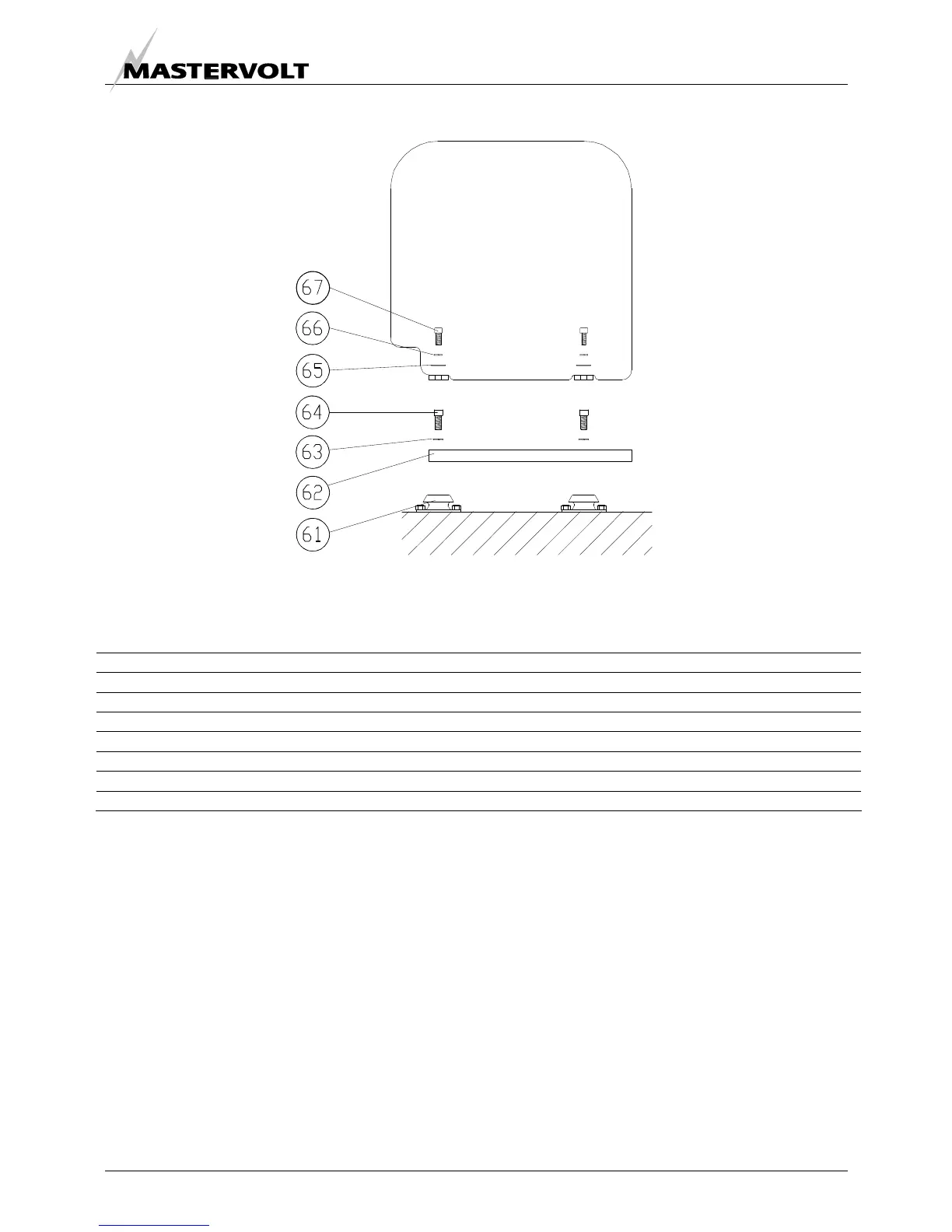

Figure 28: installation materials base plate kit
BASE PLATE KIT for Whisper 3.5 (3000 rpm)
pos. qty article no description
61 4 50230552 Rubber mounting up to 70 kg RAB3
62 1 50230012 HD base plate 3500 yellow zinc plated
63 4 50211449 Washer spring SP M12
64 4 50211251 Bolt hexagonal socket ZP M12x40
65 4 50211438 Washer SP M10x30x1,5
66 4 50211447 Washer spring SP M10
67 4 50211241 Bolt hexagonal socket ZP M10x25
TOTAL 50230207 BASE PLATE KIT WHISPER 3.5
