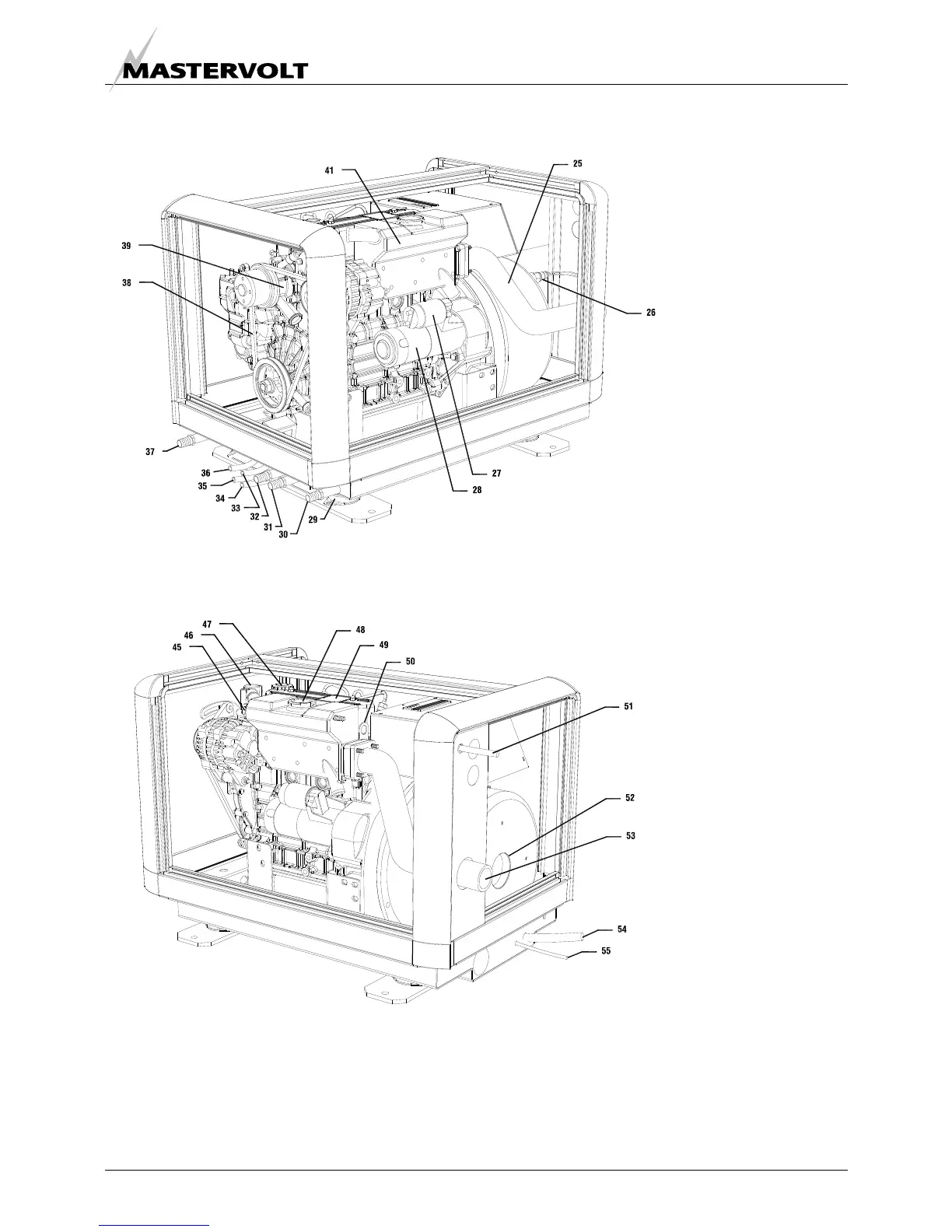

Fig. 5: Rear view main components Whisper 6Ultra
Fig. 6: Rear View main components Whisper 6Ultra
45 Temperature switch
46 Thermostat housing
47 Filler cap engine oil
48 Filler cap engine coolant
49 Rocker cover
50 Hoist eye rear
51 Expansion tank
52 AC Generator
53 Exhaust 1½”
54 AC power output
55 Remote control
25 Dry exhaust
26 Temperature switch
alternator
27 Starter motor solenoid
28 Starter motor
29 Rubber engine mounting
30 Coolant generator out
31 Coolant engine in
32 Coolant engine out
33 Battery negative (–)
34 Fuel in Ø8mm
35 Fuel out Ø8mm
36 Battery positive (+)
37 Coolant generator in
38 V-belt
39 Engine coolant pump
41 Exhaust manifold (water-
cooled)
