2.4 COMPONENTS
2.4.1 Main components to identify

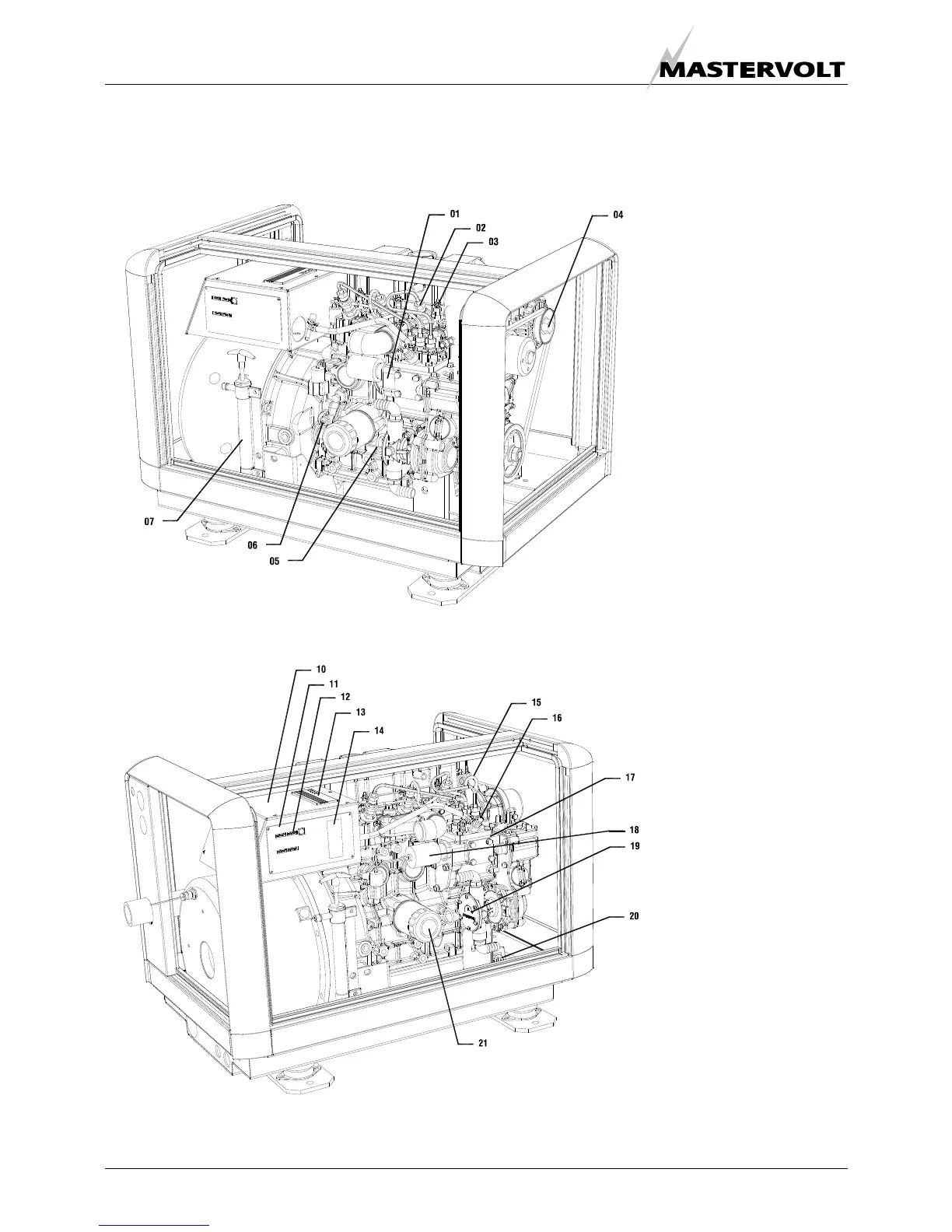

Fig. 3 Front View main components Whisper 6Ultra
Fig. 4: Front view main components Whisper 6Ultra.
01 Fuel injection pump
02 Fuel injector (3x)
03 Glow plug (3x)
04 Alternator (12VDC)
05 Engine oil dipstick
06 Coolant drain plug
07 Oil sump hand pump
10 Air cleaner element
11 Control panel
12 Fuses
13 Digital Diesel Control
(DDC)
14 Identification plate
15 Hoist eye front
16 Injection pump air
bleeding screw
17 Engine speed adjustment
screw
18 Fuel solenoid
19 Water pump of the
alternator cooling circuit
20 Fuel lift pump
21 Engine oil filter
