DIAGRAMS & DRAWINGS
US / Whisper 7/9.5/15/20 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 35

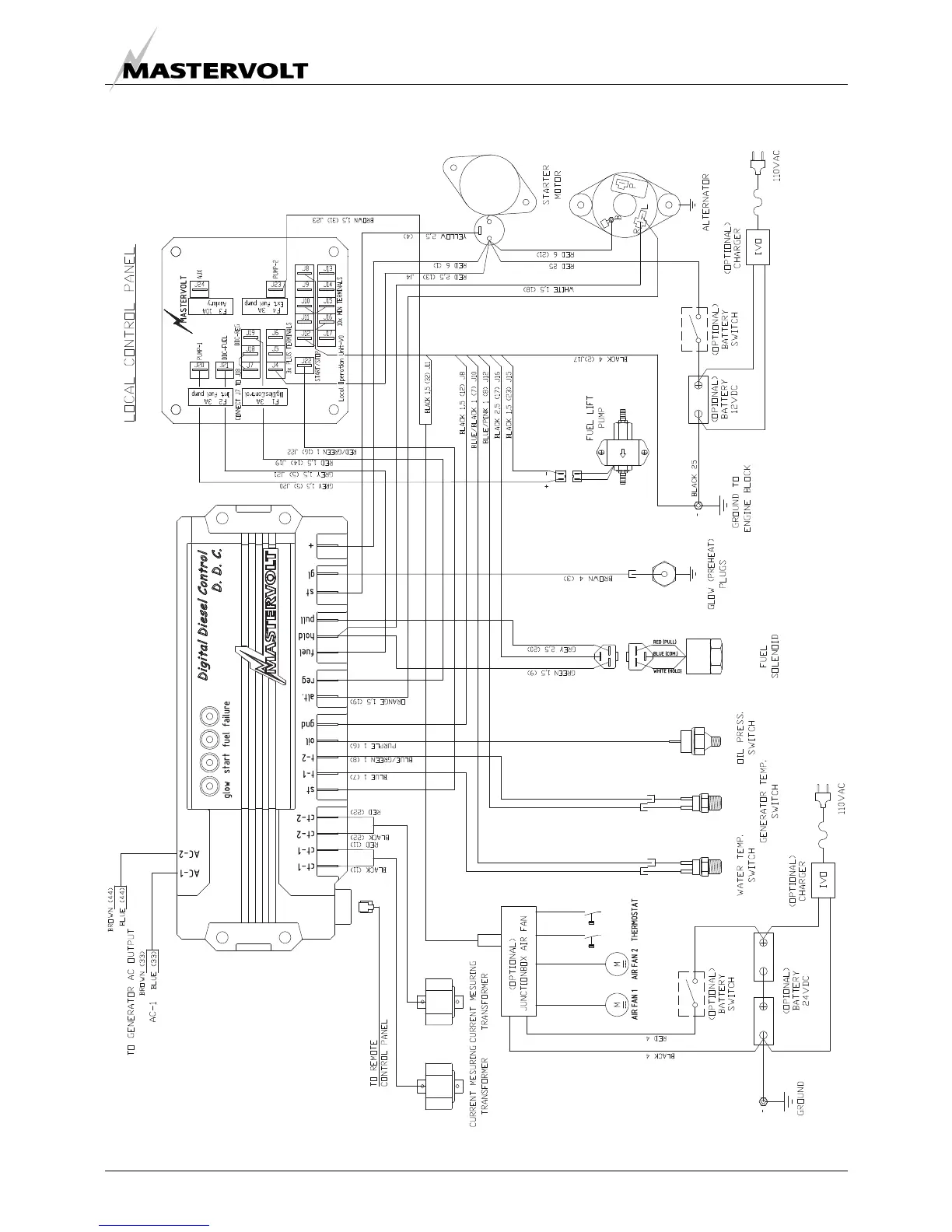

4.3 LAYOUT GENERATOR CONTROL FOR WHISPER 7 ULTRA WITH 24VDC FAN
Fig. 41: Layout generator control for Whisper 7 Ultra using a 24V DC radiator fan
