4.12 DIMENSIONS WHISPER 7 ULTRA

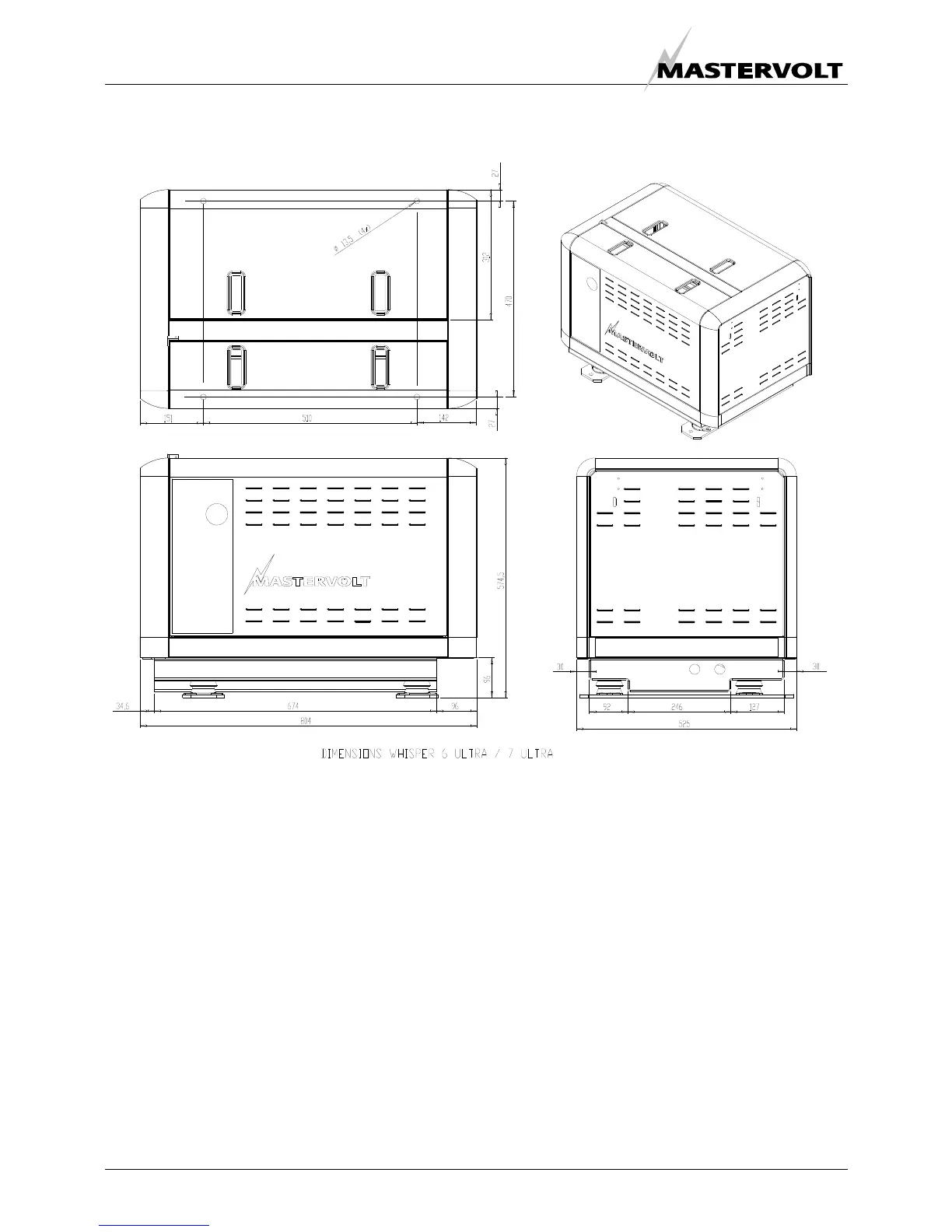

Fig. 49: Outer dimensions (mm) Whisper 7 Ultra
CONNECTIONS WHISPER 7 Ultra: BOX DIMENSIONS WHISPER 7 Ultra
• exhaust: 1 ½” • length 31.7’ (80.5 cm)
• fuel hose: 5/16” (8 mm) • width 20.7’ (52.5 cm)
• radiator alternator: 3/4” (19 mm) • height 22.8’ (58.0 cm)
• radiator engine: 1” (25.4 mm) • weight 530 Lbs (240 kg)
• battery +: AWG 3 (25 mm2)
• battery -: AWG 3 (25 mm2)
POWERCABLES ISO 13297 annex A (not included)
Refer to ISO 13297 for details
REMOTE CONTROL:
• 15 meter (45 ft) 8 wire communication cable (included)
To Next Page
