4.13 DIMENSIONS WHISPER 9.5 ULTRA

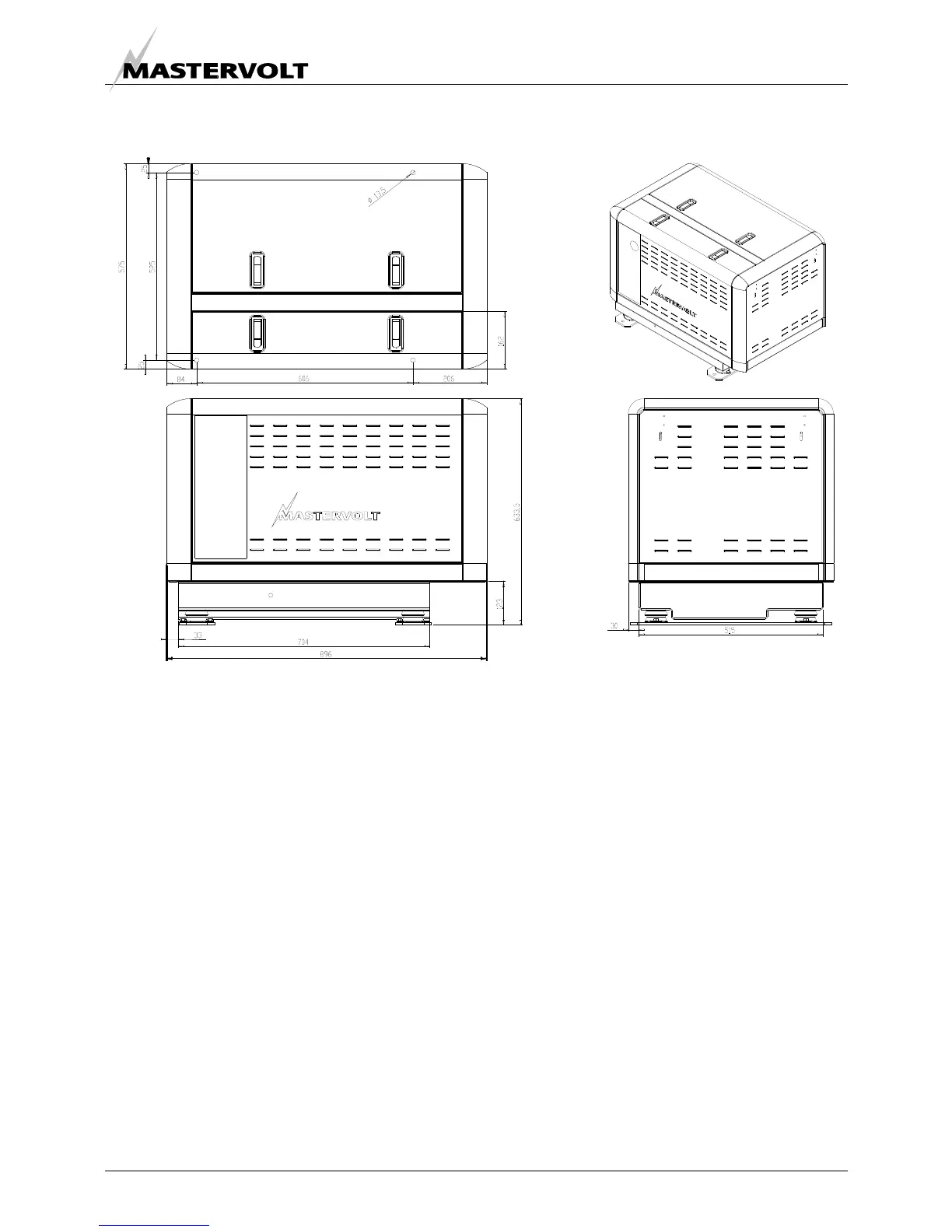

Fig. 50: Outer dimensions (mm) Whisper 9.5 Ultra
CONNECTIONS WHISPER 9.5 Ultra: BOX DIMENSIONS WHISPER 9.5 ULTRA
• exhaust: 1 ½” • length 35.4” (900 mm)
• fuel hose: 5/16” (8 mm) • width 22.6” (575 mm)
• radiator alternator: 3/4” (19 mm) • height 25.2” (640 mm)
• radiator engine: 1¼” (32 mm) • weight 750Lbs (340 kg)
• battery +: AWG 3 (25 mm2)
• battery -: AWG 3 (25 mm2)
POWERCABLES ISO 13297 annex A (not included)
Refer to ISO 13297 for details
REMOTE CONTROL:
• 15 meter 8 wire communication cable (included)
