Mastervolt WHISPER 9,5 ULTRA

DIAGRAMS & DRAWINGS
US / Whisper 7/9.5/15/20 Ultra for mobile applications / May 2009 / Copyright © 2009 Mastervolt 47
4.15 DIMENSIONS WHISPER 20 ULTRA

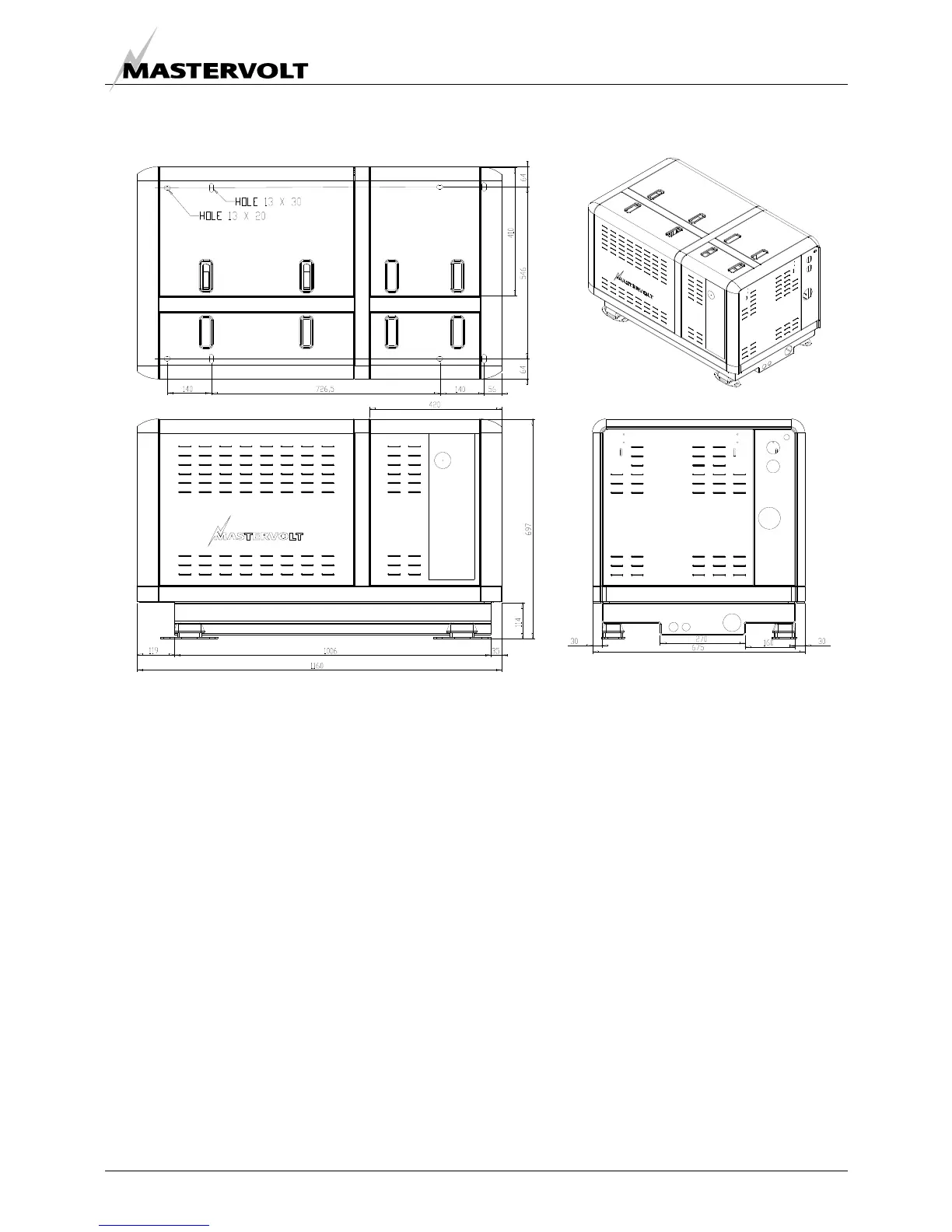

Fig. 52: Outer dimensions (mm) Whisper 20-Ultra
CONNECTIONS WHISPER 20 Ultra: BOX DIMENSIONS WHISPER 20 ULTRA
• exhaust: 1 ½” • length 45.7”(1160 mm)
• fuel hose: 5/16” (8 mm) • width 26.8” (680 mm)
• radiator alternator: 3/4” x 25 mm • height 27.6” (700 mm )
• radiator engine: 1¼” (32 mm) • weight 1000Lbs (454 kg)
• battery +: AWG 3 (35 mm2)
• battery -: AWG 3 (35 mm2)
POWERCABLES ISO 13297 annex A
A template to drill the mounting holes of the Whisper 20
Ultra is included in the delivery.
Refer to ISO 13297 for details
REMOTE CONTROL:
• 15 meter 8 wire communication cable (included)
