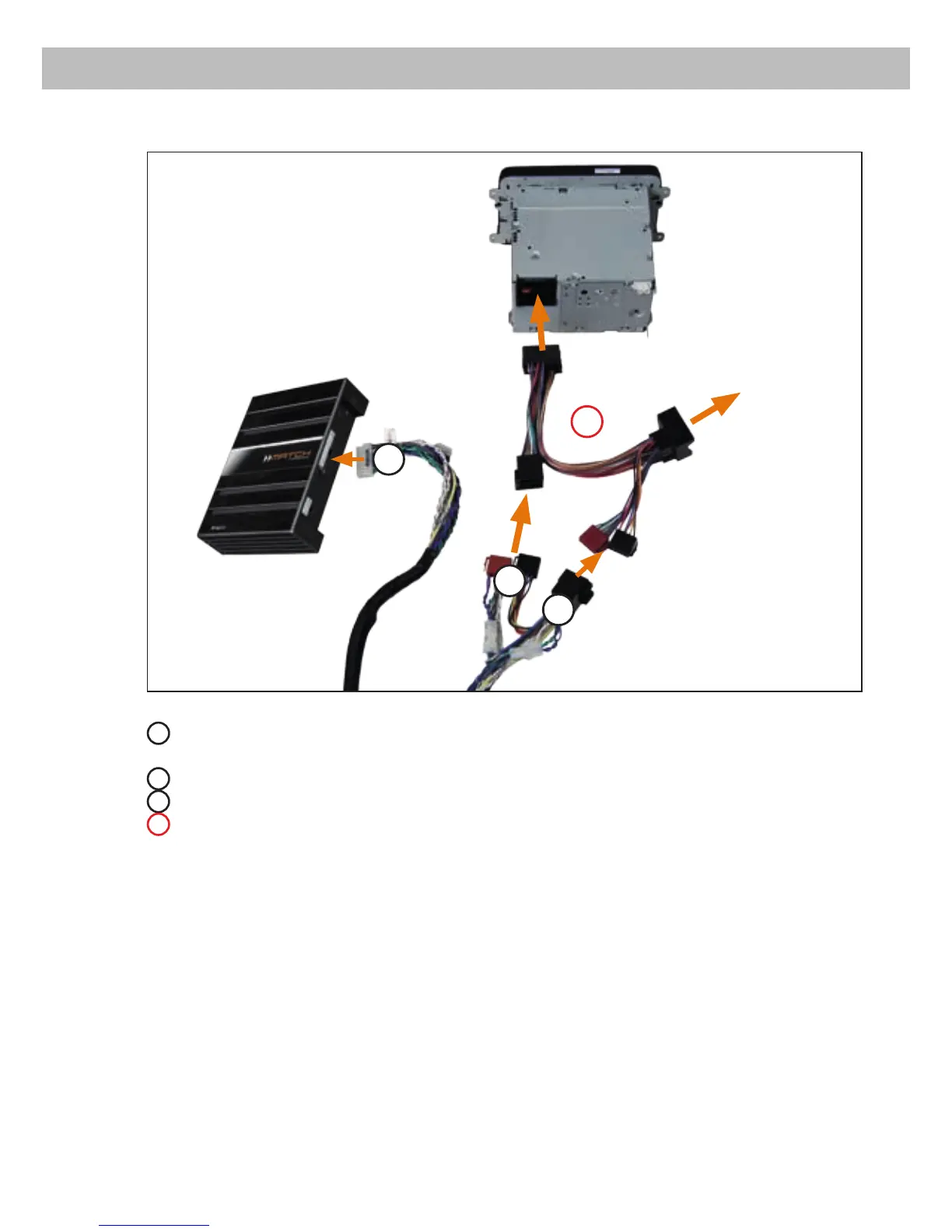

Fig. 3 Connection of the amplier to the car radio
1
The ISO female connector will either be plugged into the vehicle harness that has been dis-
connected from the car radio or a car-specic adaptor.
2
The ISO male connector will either be plugged into the car radio or into a car-specic adaptor.
3
The 20-pole connector will be plugged into the MATCH PP 62DSP amplier.
4
Optional: car-specic adaptor – such an adaptor may be required if the ISO connectors of the
provided PP 62DSP cable harness does not t into your car radio.
2
3
1
4
Male and female connector
for original cable harness or
car-specic adaptor
Female connec-
tor for original
cable harness
