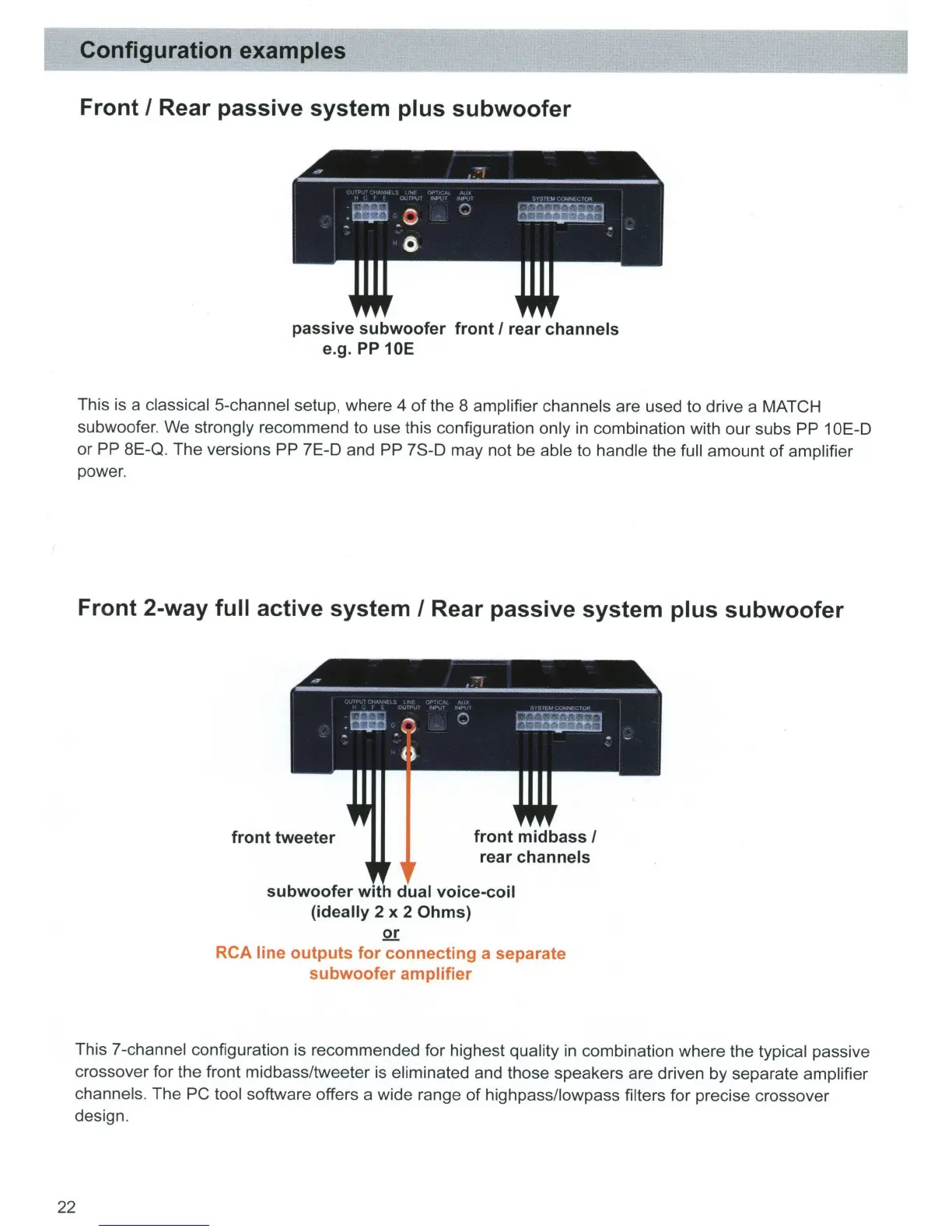

Configuration examples
Front
I
Rear passive system
plus
subwoofer
passive subwoofer front
I
rear
channels
e.g. PP
10E
This is a
classical 5-channel
setup, where
4
of
the 8
amplifier channels
are used to drive a MATCH
subwoofer. We
strongly recommend to use this configuration
only
in combination with our subs PP 1
OE-D
or PP 8E-Q. The versions PP ?E-D and PP 7S-D may not be able
to handle
the
full amount
of
amplifier
power.
Front 2-way
full active system
I
Rear passive system
plus
subwoofer
front tweeter
front midbass
I
rear channels
subwoofer
I
voice-coil
(ideally 2
x
2
Ohms)
or
RCA line
outputs for connecting
a separate
subwoofer
amplifier
This
?-channel
configuration is recommended for highest
quality
in
combination where the
typical
passive
crossover for the front midbass/tweeter is
eliminated and those speakers are driven by separate
amplifier
channels.
The
PC
tool
software offers a wide range
of
highpass/lowpass filters
for precise crossover
design.
