Match PP 82DSP - Connection of the Amplifier to the Car Radio

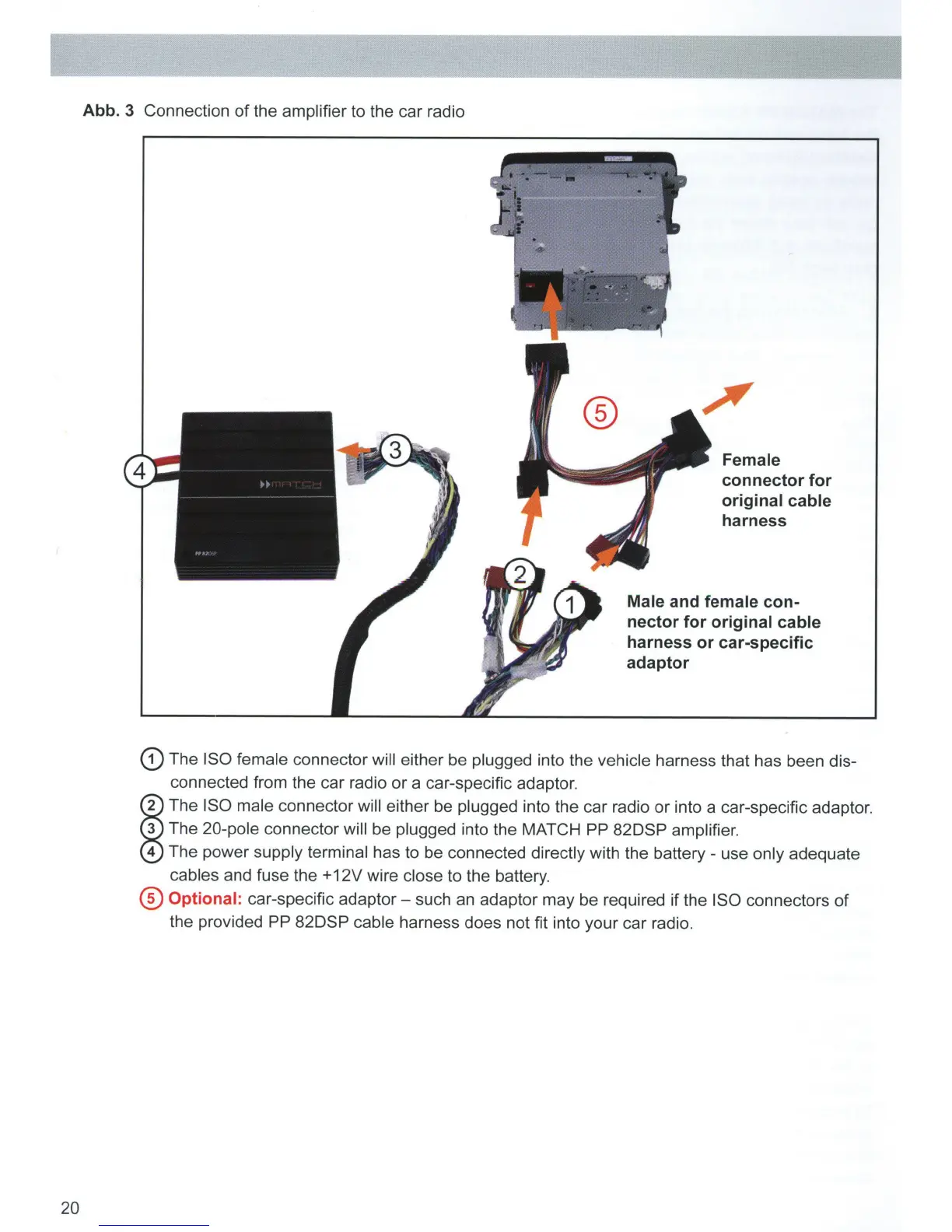

Abb. 3 Connection
of
the
amplifier
to the car radio
20
connector for
original cable
harness
Male
and
female con-
nector for
original cable
harness or car-specific
adaptor
CD
The
ISO female
connector
will either be
plugged
into the vehicle
harness that has been dis-
connected from the car radio
or
a car-specific adaptor.
~
The
ISO male
connector
will either be
plugged
into the car radio or into a car-specific adaptor.
The
20-pole connector
will be
plugged
into the MATCH
PP 82DSP amplifier.
The power
supply terminal has to be connected
directly
with the battery - use
only adequate
cables and fuse the +12V wire
close
to the battery.
®Optional:
car-specific adaptor - such an adaptor may be required
if
the
ISO
connectors
of
the provided PP 82DSP cable
harness does not fit into your car radio.
