MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 5/47

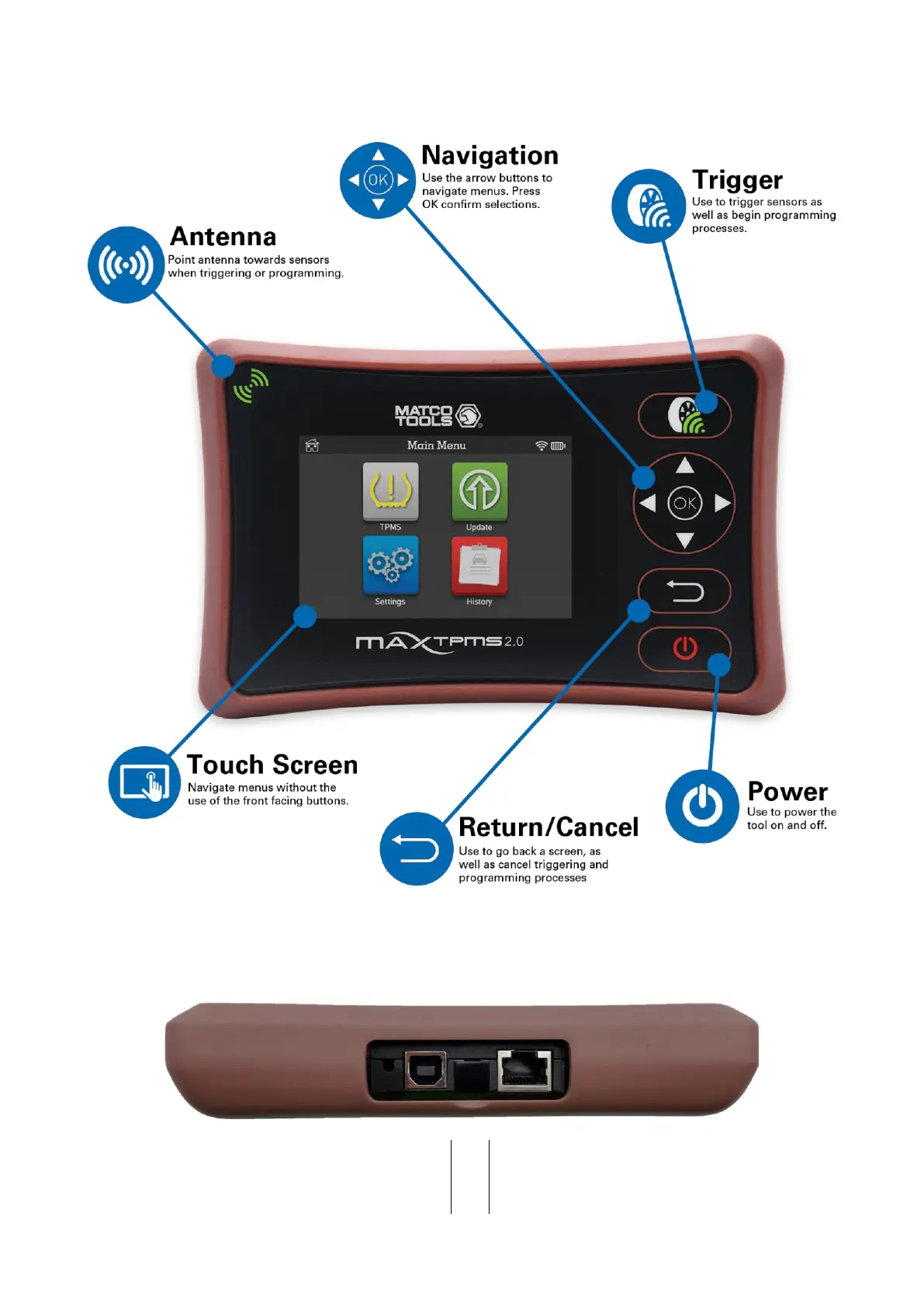

4. MAX TPMS 2.0 OVERVIEW
5. CONNECTORS
USB connector for battery
charge and software update
Extension connector for
optional OBD module and Tire
Tread Depth Gauge
