22
8.1 ELECTRICAL DIAGRAMS - CONTINUED
CHAPTER 8: TROUBLESHOOTING

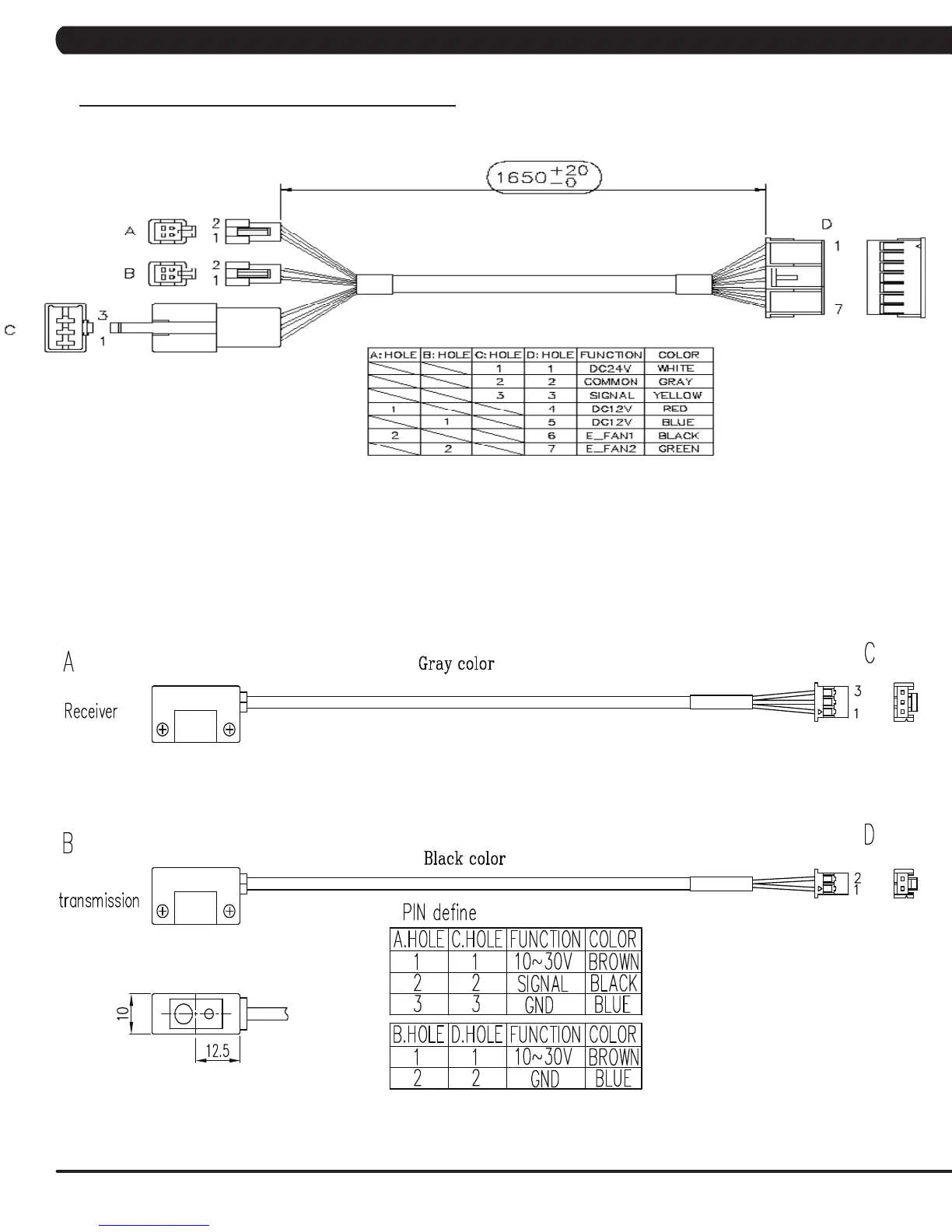

P19 - POWER SENSOR WIRE (FRAME)
P51 - IR SENSOR WIRE (FRAME)
