Matrix C3X-02 User Manual

34
8.9 ERROR CODE TROUBLESHOOTING - 02C3
CHAPTER 8: TROUBLESHOOTING
ERROR CODE 02C3 (Frame IR transmitter Error)
1) SYMPTOM:
a. During power on, the frame IR receiver connector is disconnected.
b. During power on, the frame IR transmitter is no power or connector is disconnected.
c. During power on, the frame IR sensors are hidden for over 3 seconds.
2) SOLUTION:
a. Check if there's something blocking the control zone IR sensors. (Figure A).
b. Check if the frame IR sensors (transmitter and receiver) are aligned (Figure B).
c. Check the connection of the frame IR transmitter cable from the LCB to the frame IR transmitter sensors (Figure C & D).
d. Check if the frame IR transmitter cable is good. Replace it if the cable is defective (Figure C & D).

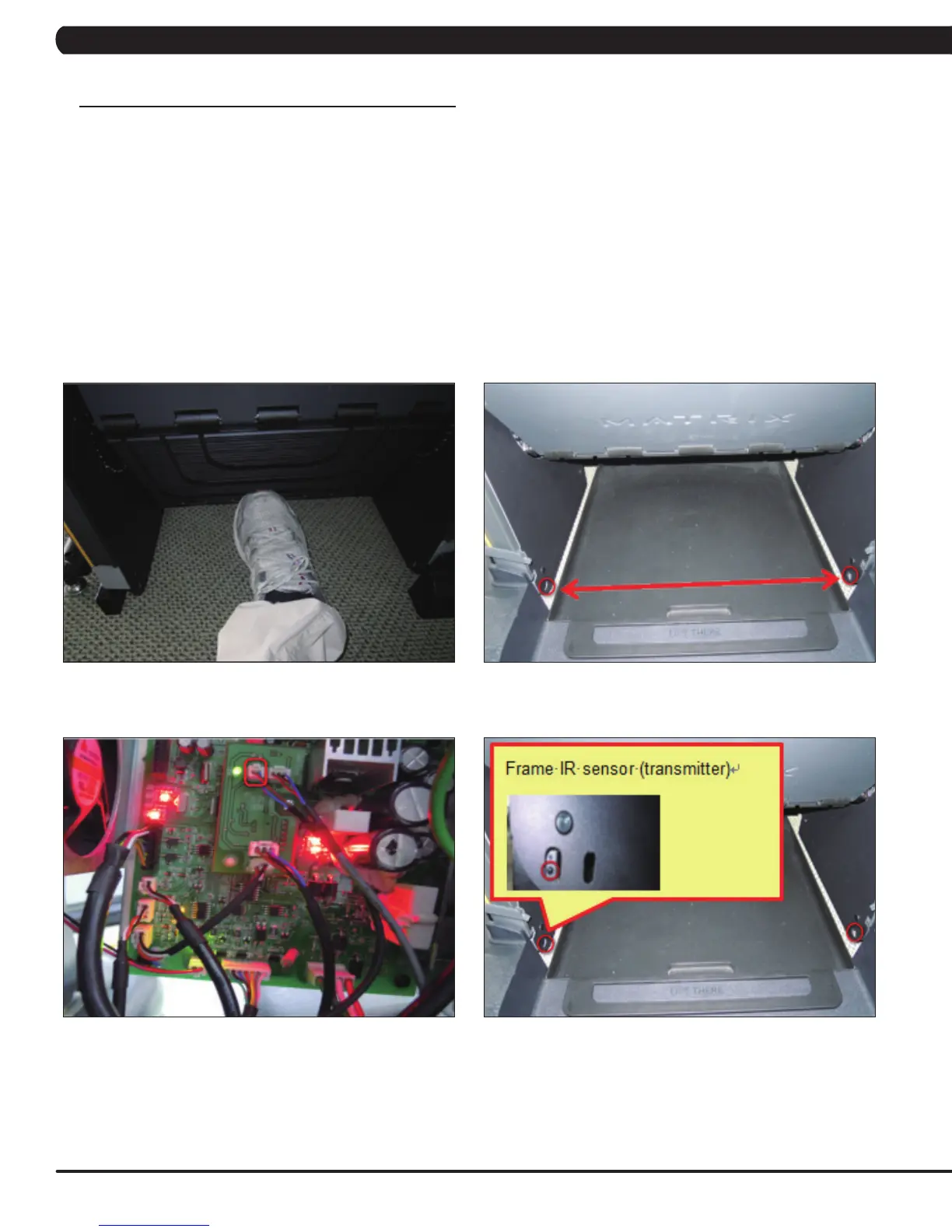

FIGURE A FIGURE B
FIGURE C FIGURE D
