65
9.12 BRAKE REPLACEMENT
1) Turn off the power and disconnect the cord from the machine.
2) Remove the Matrix logo covers from each side of the machine.
3) Turn the brake lever to the right to lock the stairs and prevent movement that could cause injury.

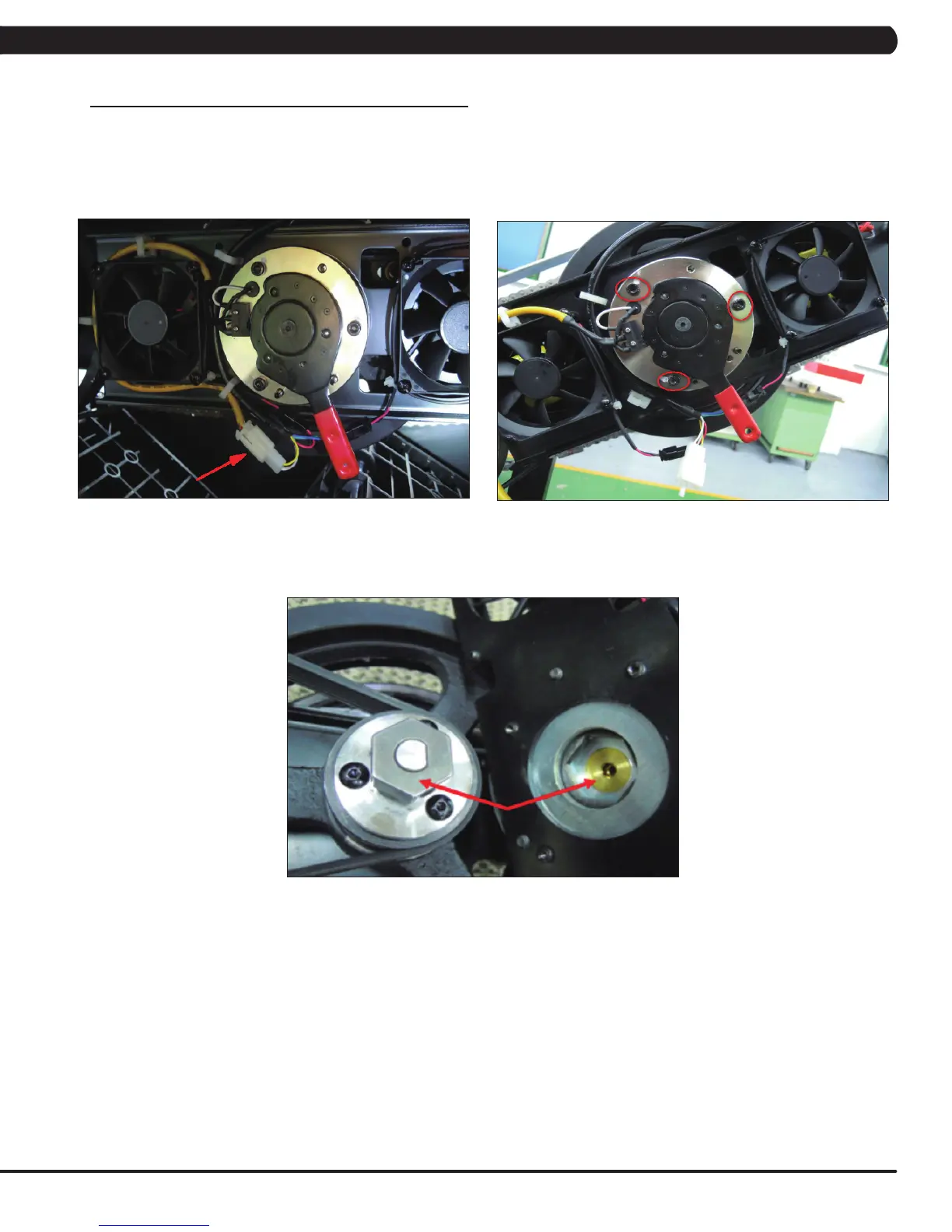

4) Disconnect the brake wire connection (Figure A).
5) Remove the 3 screws holding the brake to the drive set (Figure B) and remove the assembly. NOTE: BEFORE REMOVING THE BRAKE
AND FAN PLATE, BLOCK THE STAIRS FROM ROTATING (place a block under the bottom stair) TO PREVENT INJURY.
6) Reverse Steps 1-5 to install a new brake. note: When re-installing the plate assembly, make sure that the hexagon shaped plate on the
brake lines up with the slots in the shaft of the ywheel (Figure C).
7) Test the Climb Mill for function as outlined in Section 9.20.
FIGURE A
FIGURE C
CHAPTER 9: PARTS REPLACEMENT GUIDE
FIGURE B
