The USB port can be used for connecting Wi-fi Dongle or Mobile
Broadband Dongle. It is used to download events directly from
Panel200 to USB memory.
USB
Reset
The Reset pin can be used to set the Password and Network
settings of the Panel200 to default.
SD Card
The SD card is used for the storage of internal processing data.
Powering On the Device
Apply 12V DC,2A power supply to the COSEC Panel200 and wait
for the reboot cycle to complete. At the time of device start up
i.e. Bootloader state, the Power LED will glow in constant Red
color.
The Panel200 has 3 LEDs i.e. ALARM, STATUS and POWER. The
table below shows some common indications
m
icro
POWER
STATUS
ALARM
LED
Indicators
SD Card

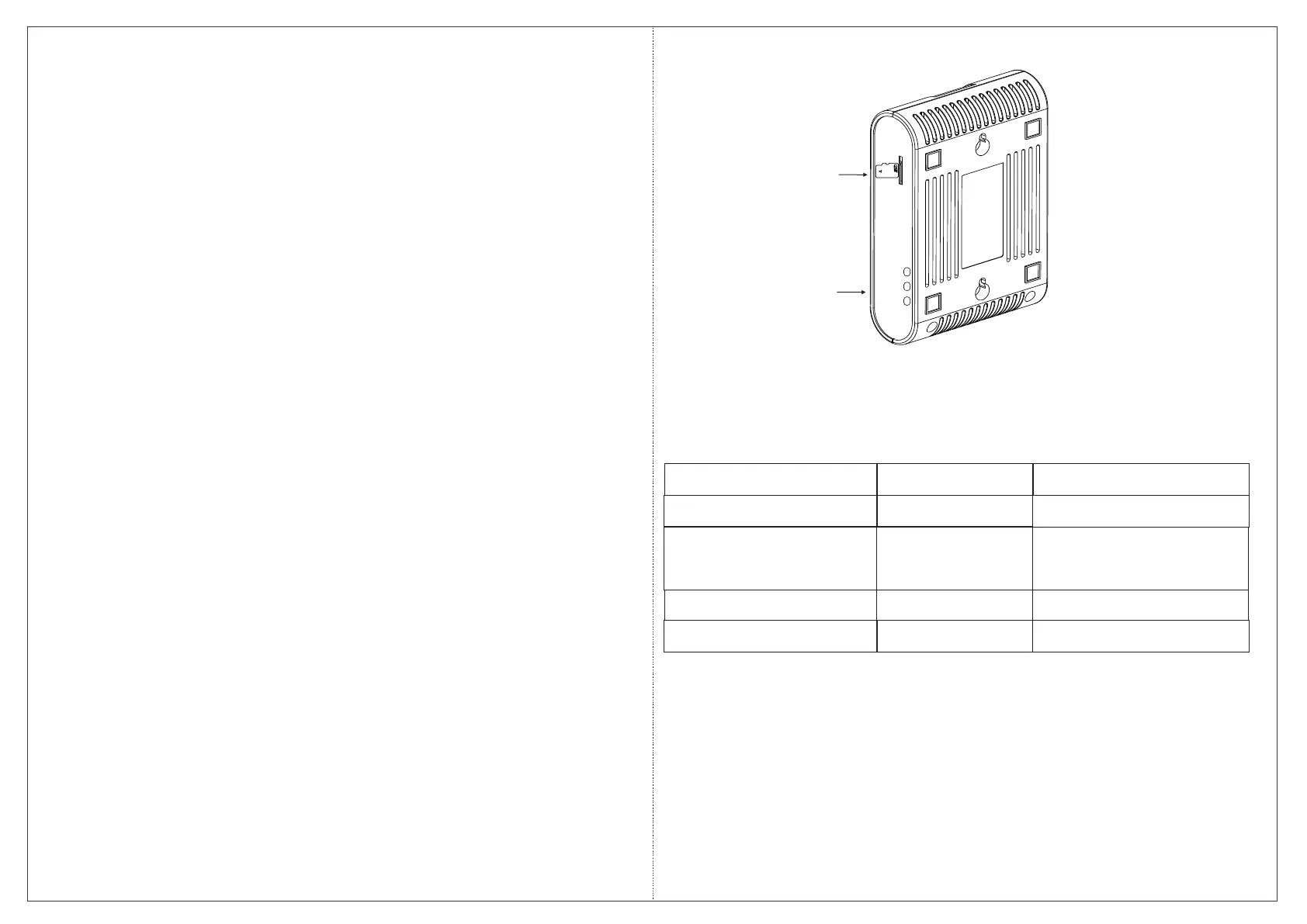

Figure 4
Power LED
Device State
Status LED
Power ON Sequence
Idle-Online
Idle-Offline
Idle-Network Fault/Link fail
Red ON
Orange blinking
Green blinking
Red blinking
Orange blinking
Red ON
Red ON
Red ON
LED Status Indicators
ALARM LED
Ÿ POWER ON sequence- blinks in Red
Ÿ Critical Alarm - glows in RED till Reset
Ÿ Minor and Major Alarm - blinks in Red
(when online with server)
