Matrix E5x-02 User Manual

27

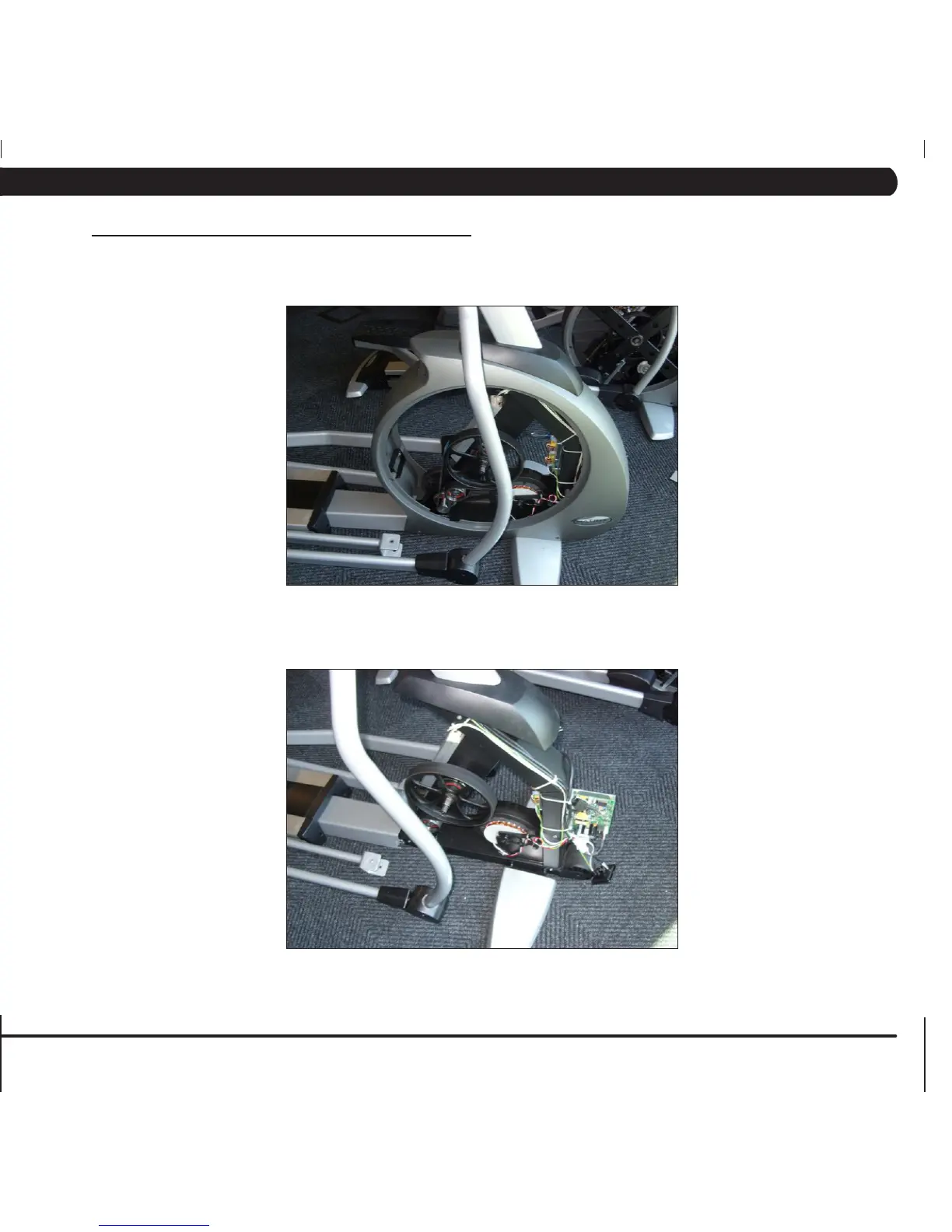

8.2 FRONT SHROUD REPLACEMENT
1) Remove the front disks as outlined in Section 8.1.
2) Remove the screws that hold the front shrouds in place and to each other on each side (Figure A). note: You will need to lift the console
mast boot to remove some of the screws.
3) Remove the front shrouds for frame access (Figure B).
4) Reverse Steps 1-3 to install a new shroud.
FIGURE A
FIGURE B
CHAPTER 8: PART REPLACEMENT GUIDE
