34
8.9 CONSOLE REPLACEMENT

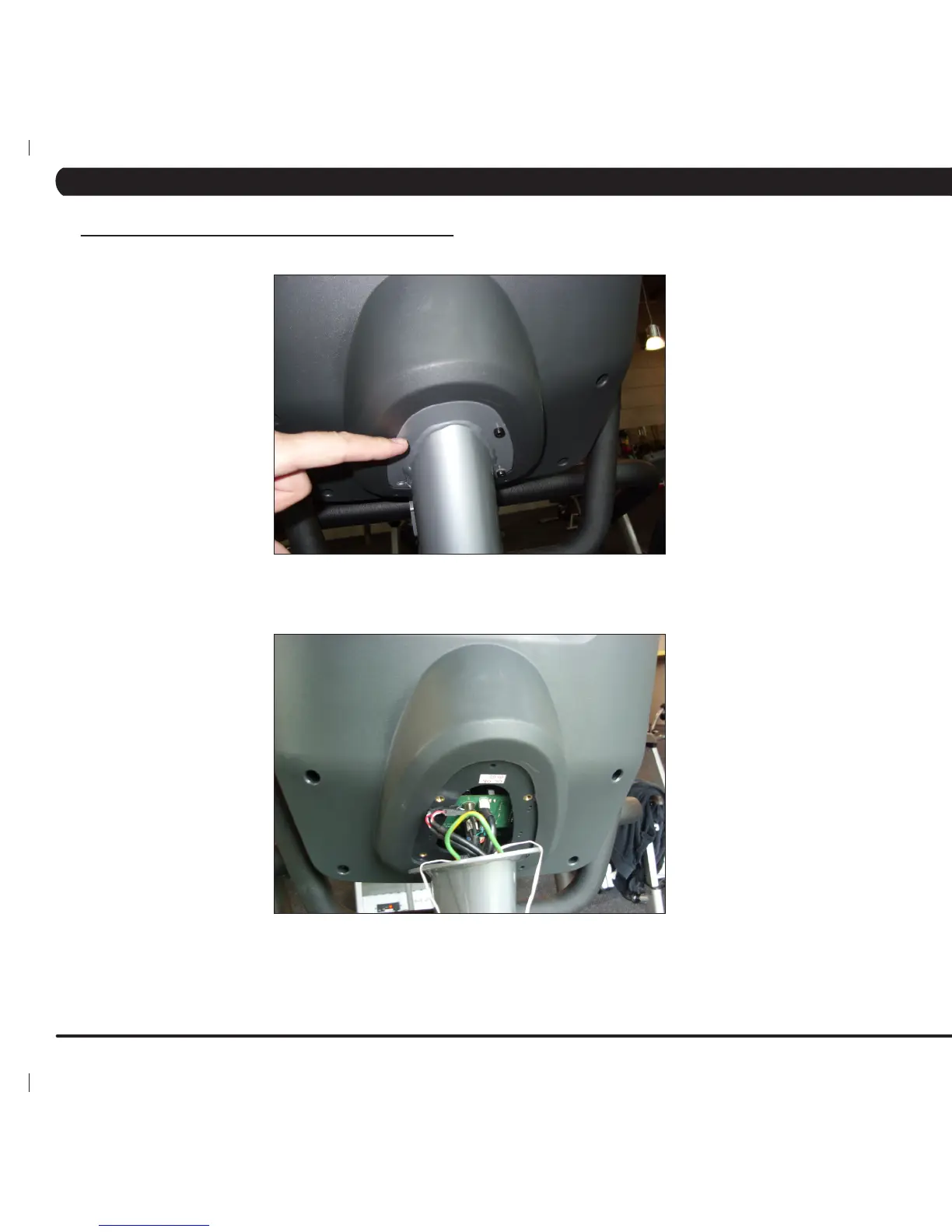

1) Remove the 4 screws that hold the console to the top of the console mast (Figure A).
2) Disconnect the data cable, heart rate, and ground wires and remove the console (Figure B).
3) Reconnect the wire connections to the new console.
4) Carefully push the wires into the console and mast until they are clear of the console / mast connection and attach the console to the mast
using the 4 screws removed in Step 2.
5) Test the Elliptical Trainer for function as outlined in Section 8.21.
FIGURE A
FIGURE B
CHAPTER 8: PART REPLACEMENT GUIDE
