Matrix E5x-02 User Manual

43
FIGURE C
FIGURE A

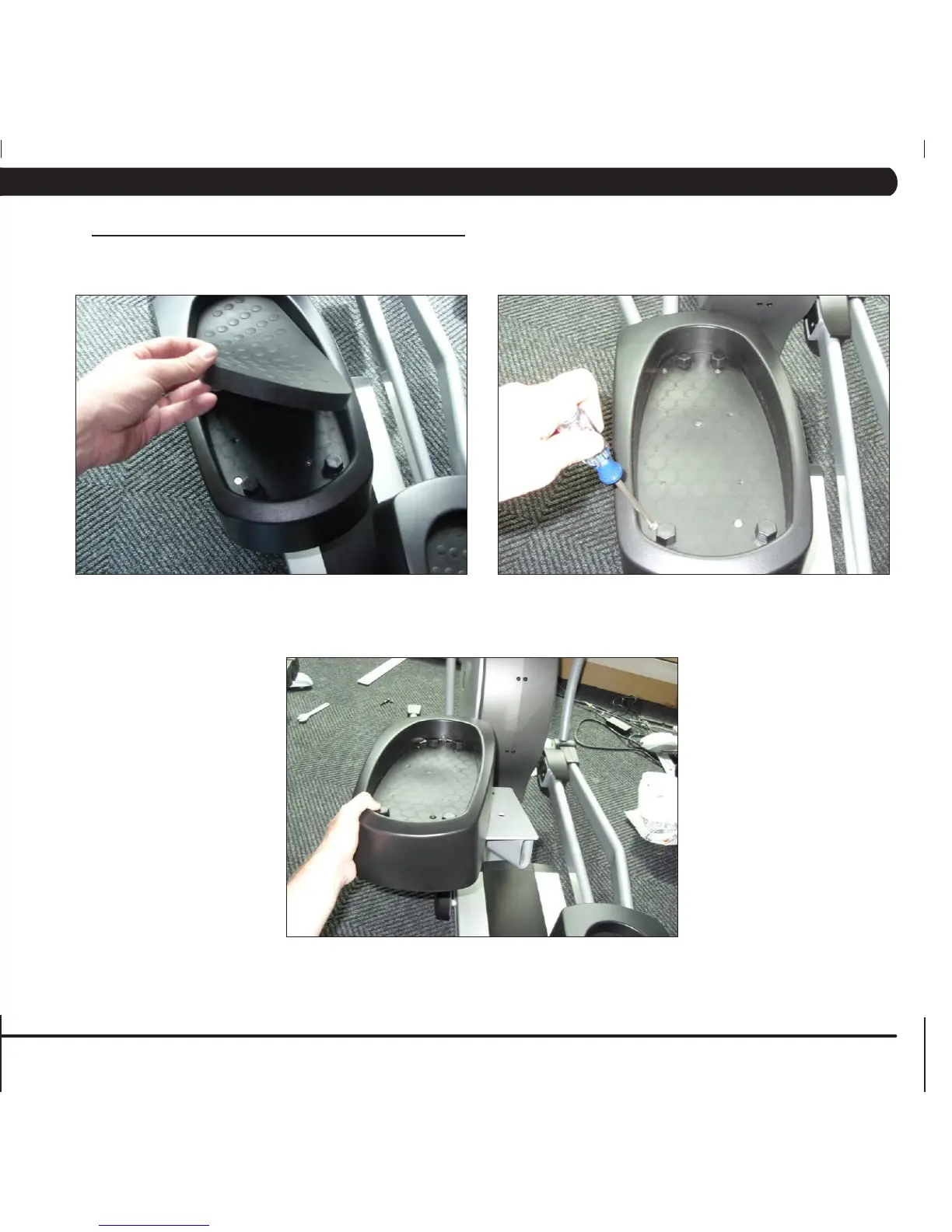

1) Pull up on the rubber pad on top of the plastic pedal to expose the pedal screws (Figure A).
2) Remove the 4 Phillips screws that hold the plastic foot pedal to the foot plate (Figure B).
3) Remove the plastic foot pedal (Figure C).
4) Reverse Steps 1-3 to install a new foot pedal.
5) Test the Elliptical Trainer as outlined in Section 8.21.
FIGURE B
8.16 FOOT PEDALS REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE
