38

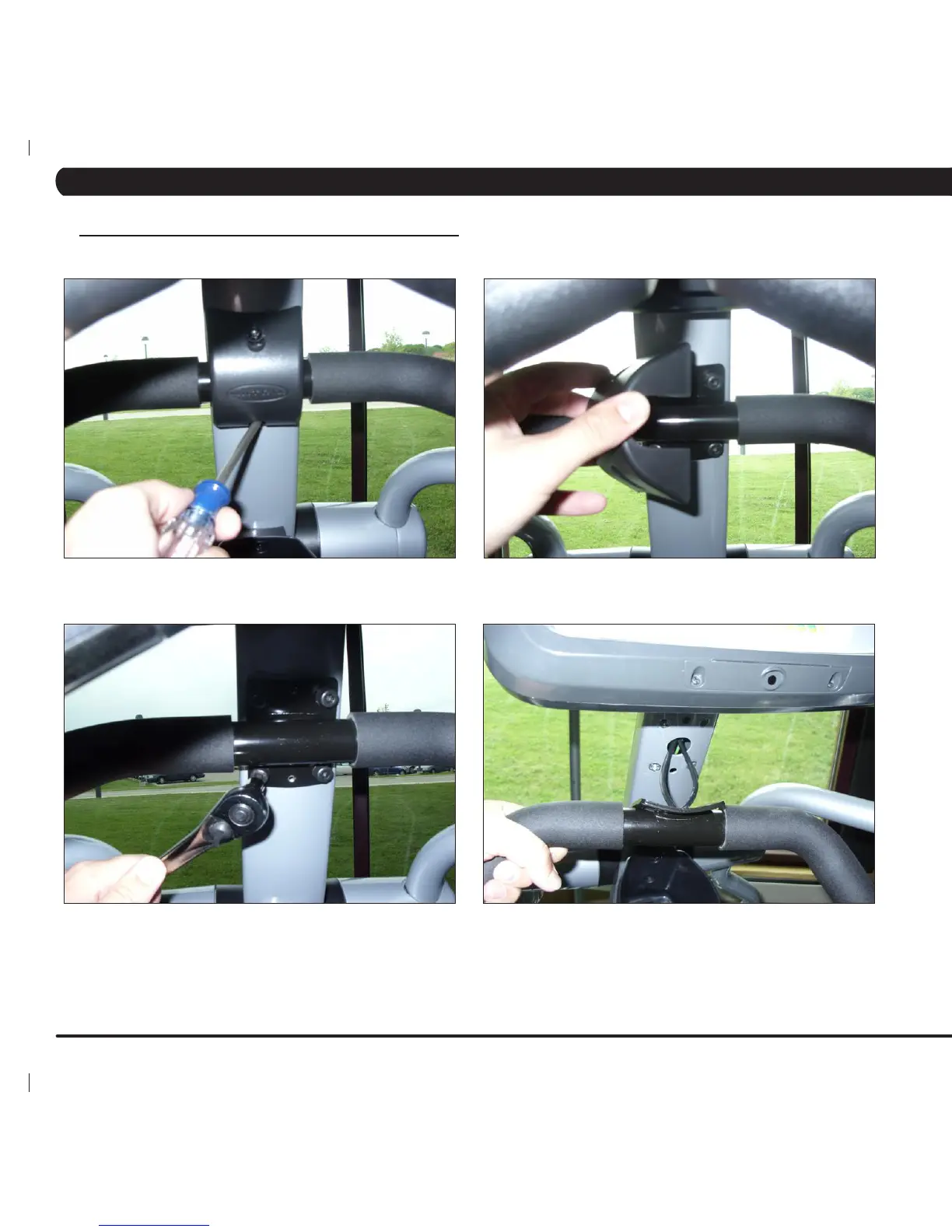

1) Remove the two screws holding the plastic handlebar cover in place and remove the cover (Figures A & B).
2) Remove the 4 bolts that hold the handlebar to the console mast being careful to support the handlebar (Figures C and D).
3) Carefully remove the wires from inside the console mast until the connectors on the ends come free and disconnect.
4) To install a new handlebar assembly, connect the new handlebar and carefully push the heart rate wires into the console mast.
5) Attach the new handlebar assembly to the console mast using the 4 screws removed in Step 3.
6) Reattach the cover over the handlebar assembly.
7) Test the Elliptical Trainer for function as outlined in Section 8.21.
FIGURE A FIGURE B
FIGURE C
FIGURE D
8.11 HANDLEBAR ASSEMBLY REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE
