Matrix E5x-02 User Manual

44

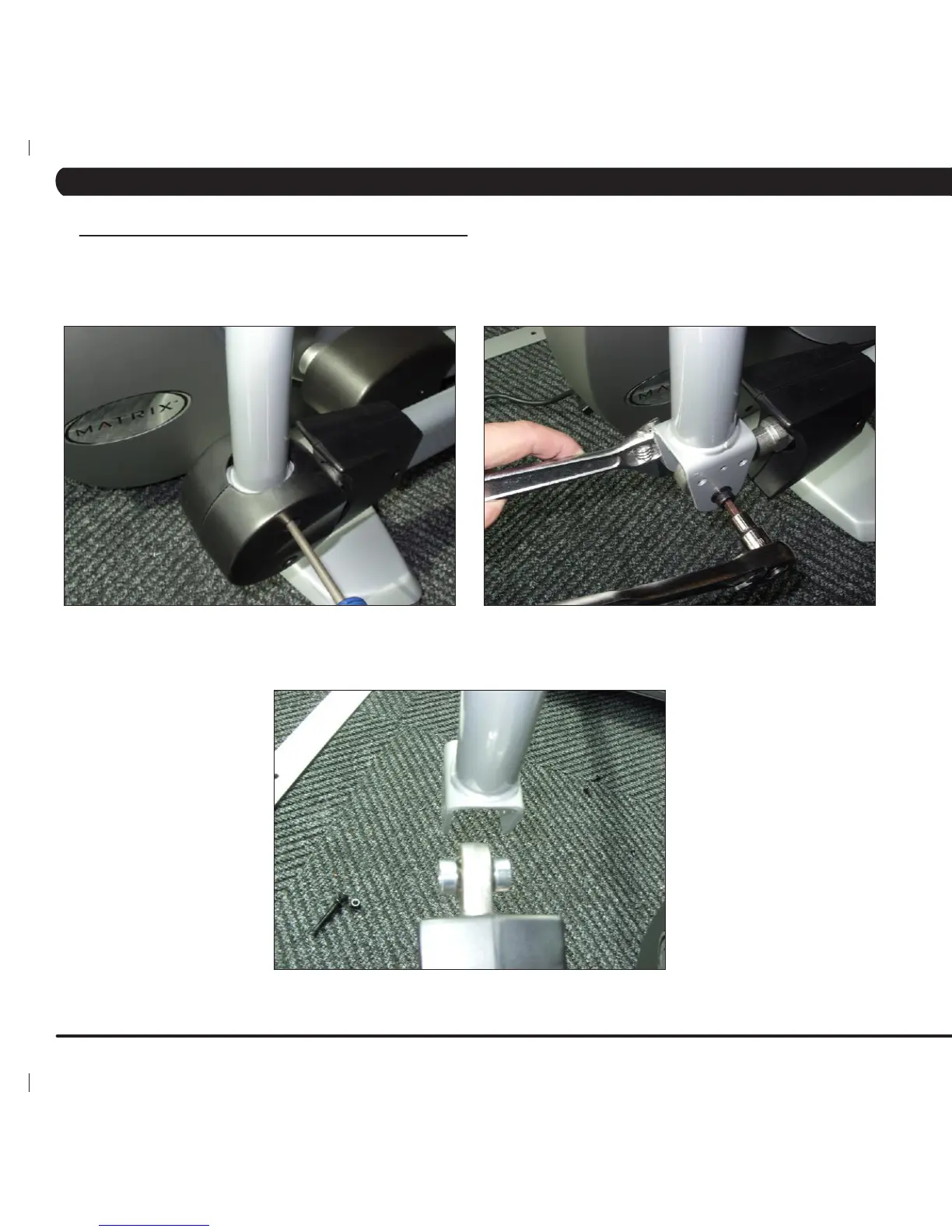

8.17 PEDAL ARM REPLACEMENT
1) Remove the plastic cover where the dual action handlebar meets the pedal arm (Figure A).
2) Remove the bolt and bushings where the dual action handlebar and the pedal arm meet (Figure B). note: Be sure to move the bushings
from the old pedal arm to the new one (Figure C).
FIGURE A FIGURE B
FIGURE C
CHAPTER 8: PART REPLACEMENT GUIDE
