Matrix E5x-02

45

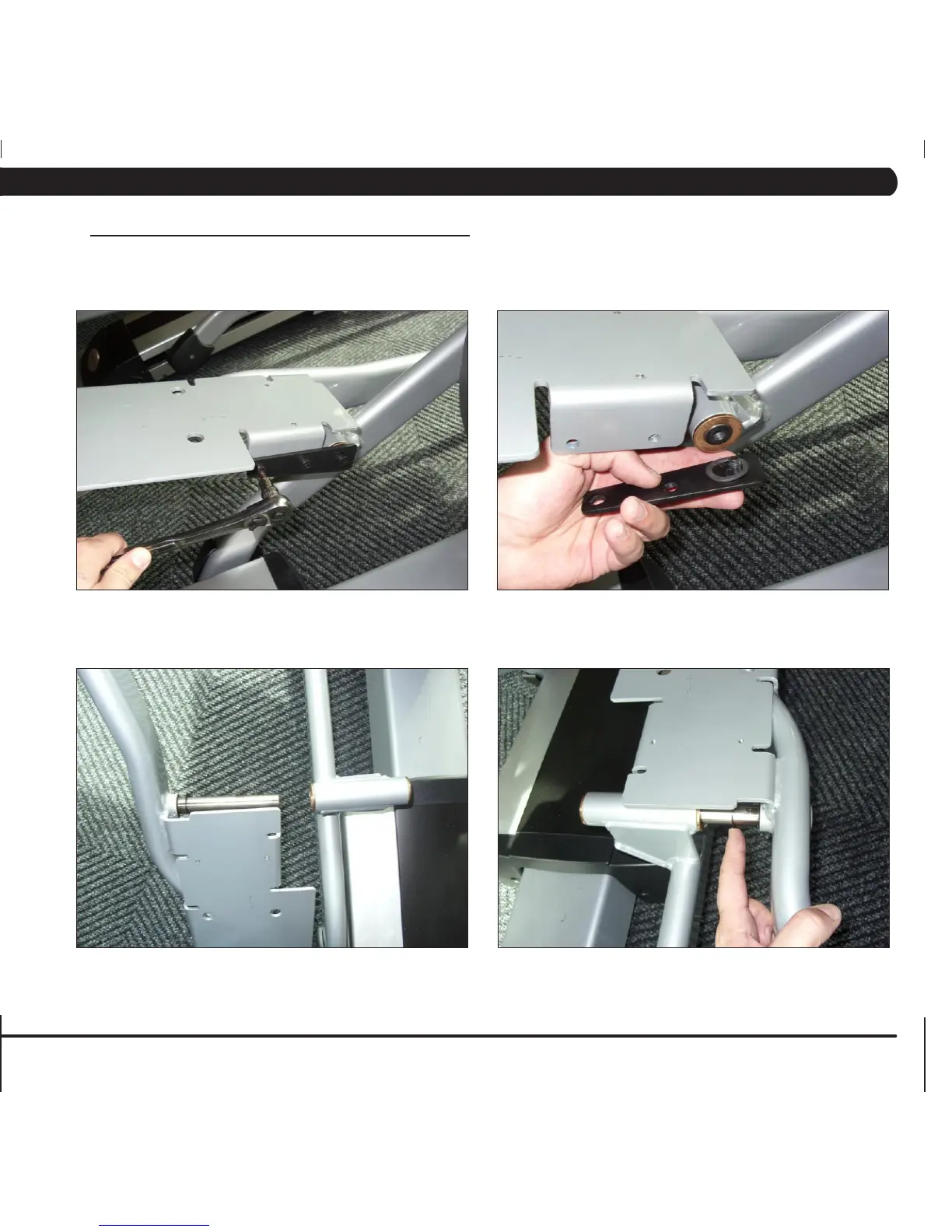

FIGURE D FIGURE E
FIGURE F FIGURE G
8.17 PEDAL ARM REPLACEMENT - CONTINUED
3) Remove the pedal as outlined in Section 8.16.

end of the shaft (Figure E).
5) Slide the pedal arm shaft out of the crank arm housing (Figure F) noting the order of the washers on the pedal arm shaft (Figure G).
6) Reverse Steps 1-5 to install a new pedal arm.
7) Test the Elliptical Trainer for function as outlined in Section 8.21.
CHAPTER 8: PART REPLACEMENT GUIDE
