8.19 ROLLER REPLACEMENT - CONTINUED

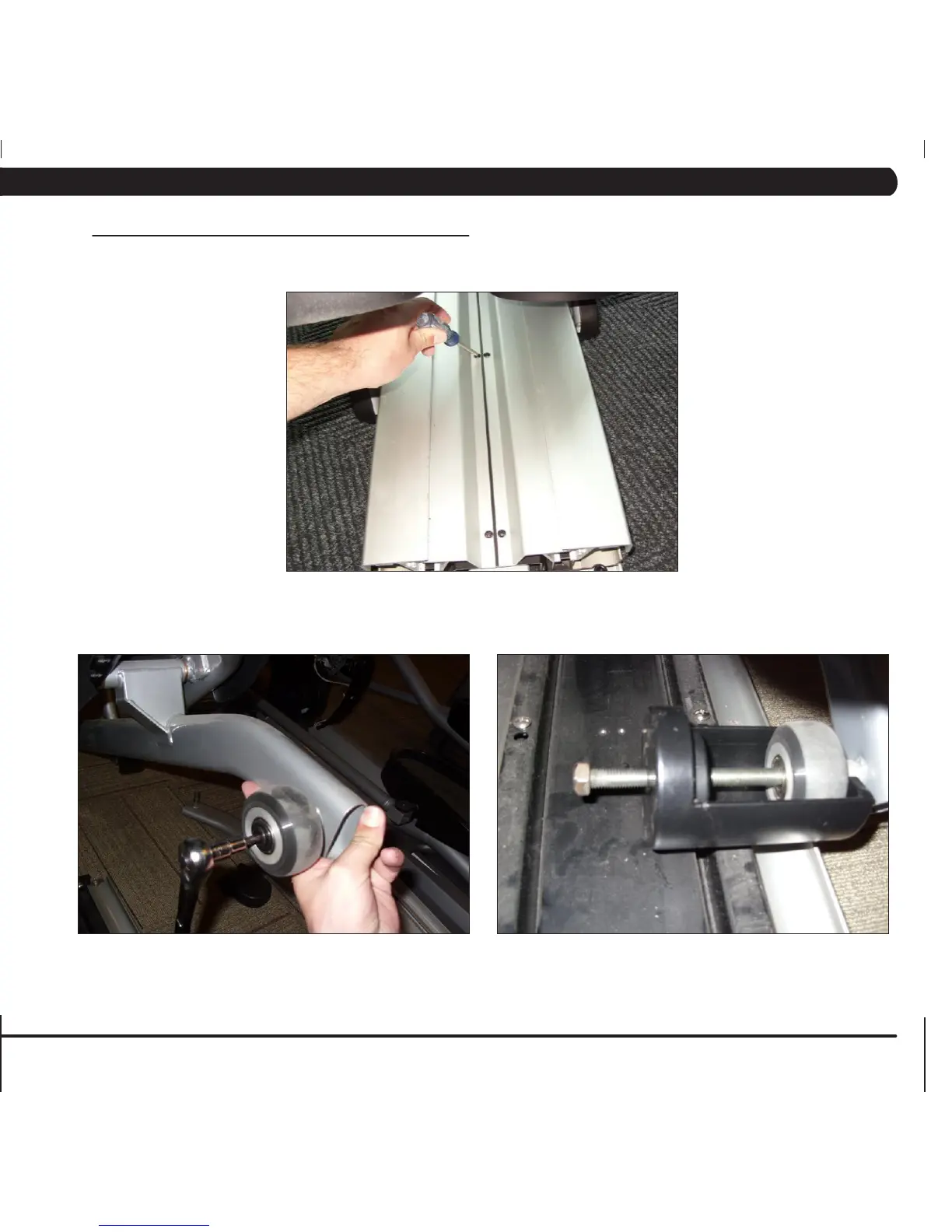

FIGURE H
FIGURE I FIGURE J
5) Remove the 3 screws holding the top roller track in place (Figure H).
6) Remove the screw holding the roller to the crank arm (Figure I).
7) Remove the roller from the crank arm using the roller puller available from Matrix (Figure J).
8) Reverse Steps 1-7 to install a new roller.
9) Test the Elliptical Trainer for function as outlined in Section 8.21.
