Matrix ETERNITY NENX User Manual

7 Matrix ETERNITY NE Quick Start

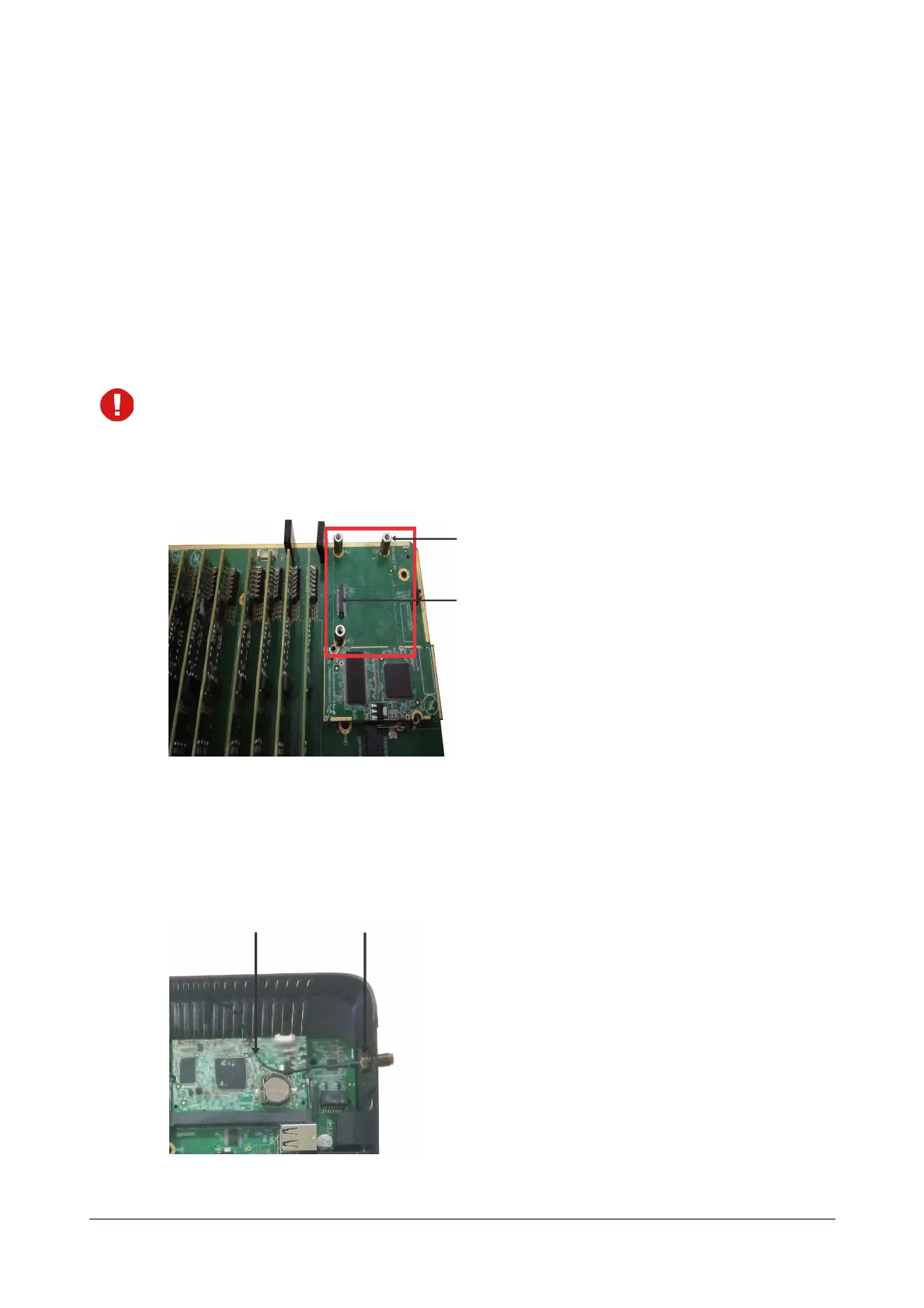

Installing Modules
GSM/UMTS/LTE Module
• Unpack the GSM/UMTS/LTE Module.
• Make sure power supply is turned off before you begin installation.
• Unscrew and remove the top cover of the enclosure. Keep the screws and the cover aside.
• Select the Mobile Port for which you want to install the GSM/UMTS/LTE module on the mainboard. Locate
the studs for GSM/UMTS/LTE module on the mainboard to install the GSM/UMTS/LTE module.
If you want to use internet for SIP services, you must install 3G/4G module in Mobile Port1 slot. Whether
you install 2G or 3G or 4G module in Mobile Port2 slot, it will be used only for voice calls.
• Gently seat the GSM/UMTS/LTE module on the studs on the mainboard. The connector pins on the
module must make complete contact with those on the mainboard. Do not apply pressure
.
• When the module is seated firmly on the studs on the mainboard, secure the module with the screws.
• Remove the rubber cap and fix the antenna holder of the Antenna wire onto the Antenna connector of the
enclosure.
Studs for GSM/UMTS/LTE
Module on mainboard
Connector Pins for
GSM/UMTS/LTE module
on mainboard
Antenna
Holder
Antenna
Wire

Matrix ETERNITY NENX Specifications

General

Brand	Matrix
Model	ETERNITY NENX
Category	PBX
Language	English
