Matrix ETERNITY NE Quick Start 8

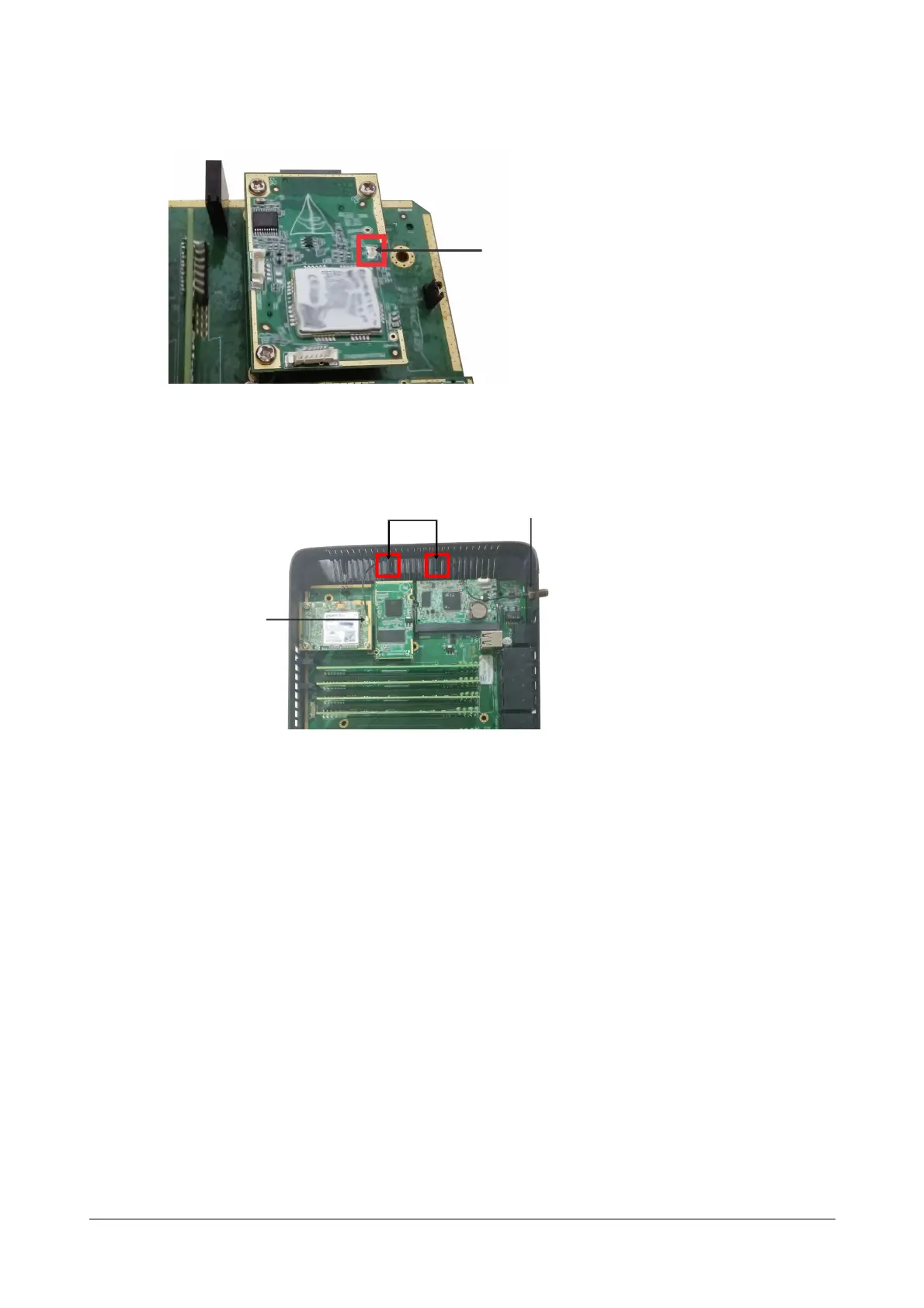

• Locate the patch antenna connector on the GSM/UMTS/LTE Module.
• Fix the antenna wire in the clamp and route the cable carefully to the GSM/UMTS/LTE module. Press the
antenna wire connector onto the patch antenna connector on the GSM/UMTS/LTE Module as shown
below.
• Similarly, you can install another GSM/UMTS/LTE module.
• If you do not want to install any other module, replace the top cover and secure the cover with the screws.
VoIP Module
• Unpack the VoIP module.
• Make sure power supply is turned off before you begin installation.
• Unscrew and remove the top cover of the enclosure. Keep the screws and the cover aside.
• Locate the studs and connector of the VoIP module on the mainboard.
Patch Antenna
Connector
Antenna wire connector
connected to Patch antenna
connector
Wire Clamp
Antenna Holder
